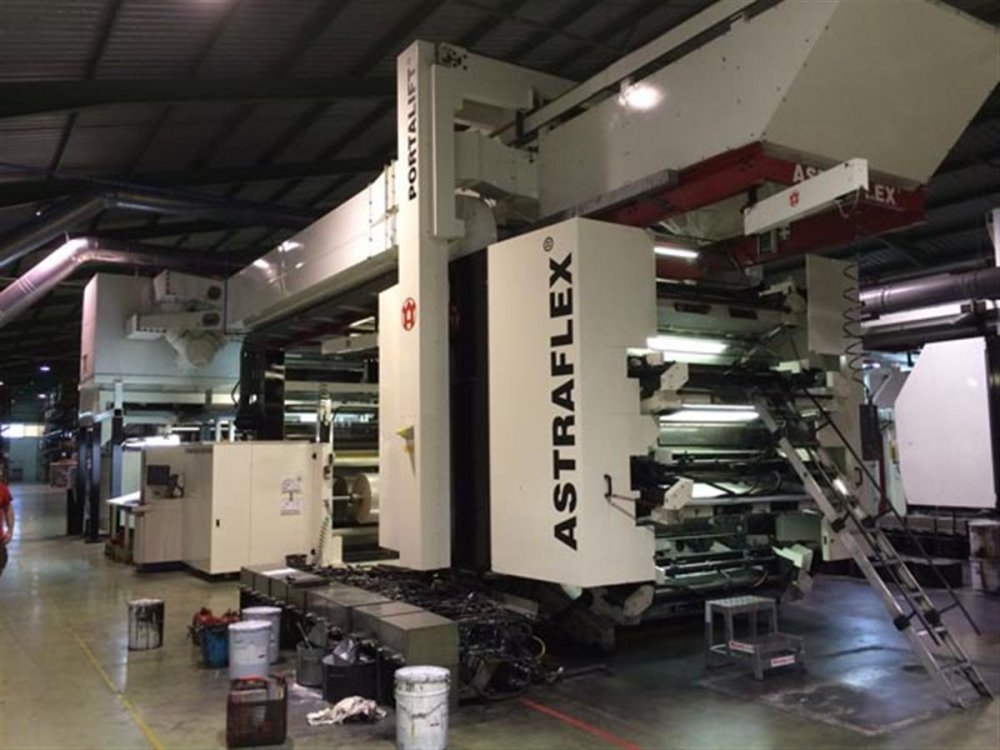

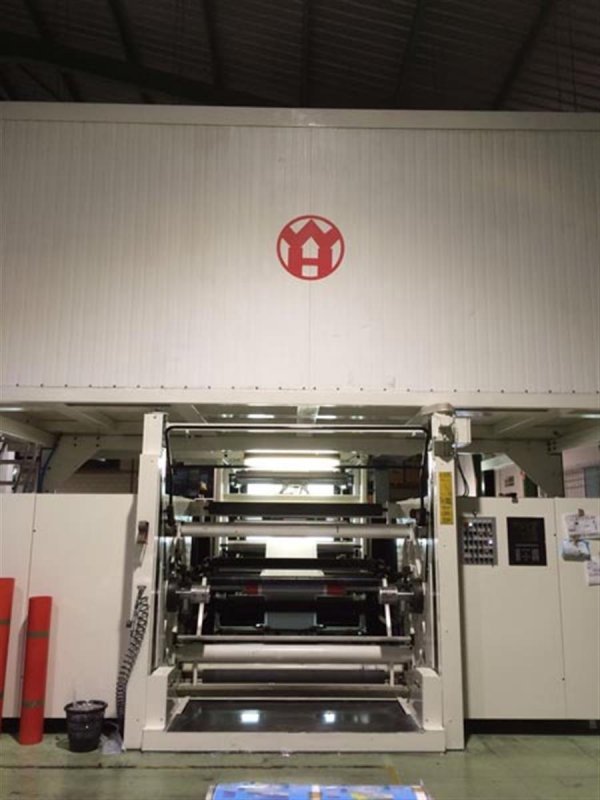

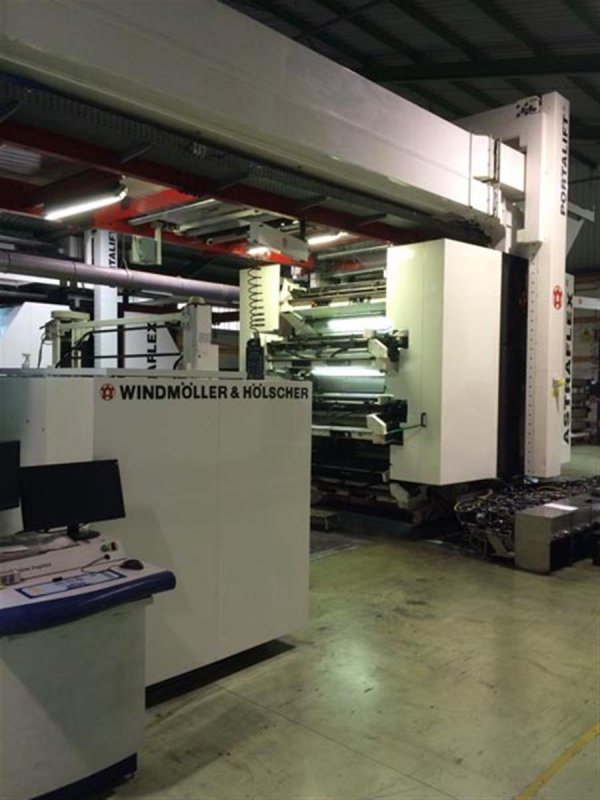

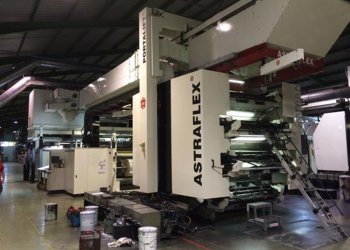

- Maschinencode
- FL697
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Baujahr
- 1998
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Max print repeat (mm)
- 1200

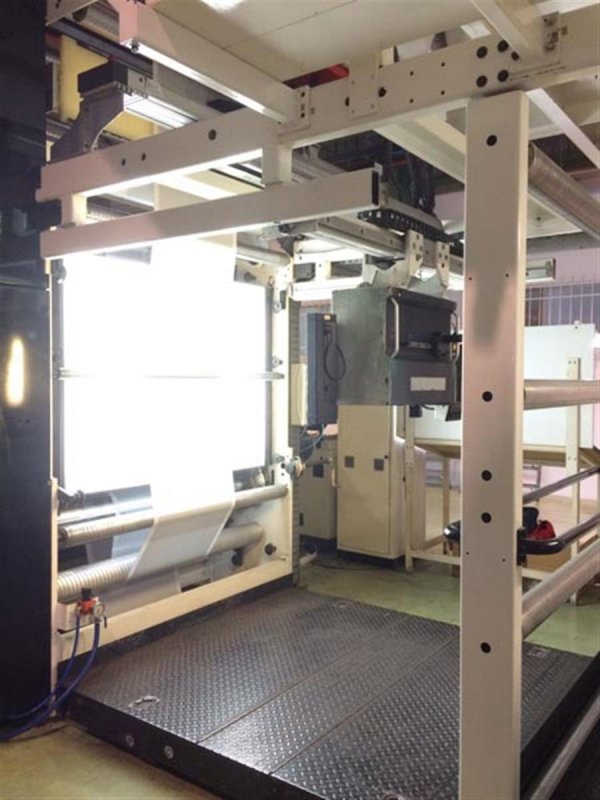

- Unwinder type
- Shaftless Turret with Flying Splice with two Knives including lift platform
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Shaftless Turret with Flying Splice with two Knives including lift platform
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermic Oil(Heater non included)
- Videocamera
- Yes, AVTPrintvision Jupiter - year 2009
- Web guides
- Yes
- Vyscosity control
- Yes, 8x Nordcross

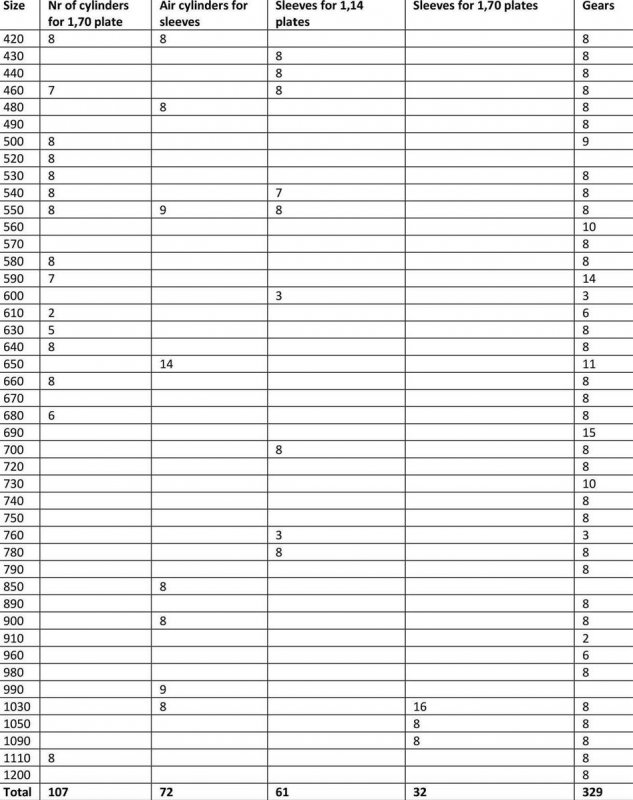

- Print cylinders
- Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
- Note
- WXehrtjoq3c 22Rlgs1JKW0 Material : PE / LDPE / HDPE / PP Paper
Maschinencode | FL697 |
Hersteller | WINDMÖLLER & HÖLSCHER |
Modello | ASTRAFLEX |
Baujahr | 1998 |
Number of colors | 8 |
Gearless | No |
Fast sleeve change | No |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1620 |
Print width (mm) | 1570 |
Max print repeat (mm) | 1200 |
Unwinder type | Shaftless Turret with Flying Splice with two Knives including lift platform |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Shaftless Turret with Flying Splice with two Knives including lift platform |
Max reel diameter rewinder (mm) | 1000 |
Drying | Thermic Oil(Heater non included) |
Videocamera | Yes, AVTPrintvision Jupiter - year 2009 |
Web guides | Yes |
Vyscosity control | Yes, 8x Nordcross |
Print cylinders | Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine |
Note | WXehrtjoq3c 22Rlgs1JKW0 Material : PE / LDPE / HDPE / PP Paper |
