- Maschinencode
- FL647
- Hersteller
- OFEM
- Modello

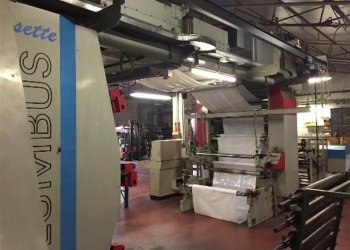

- COLUMBUS 7/906
- Baujahr
- 2000
- Number of colors
- 6
- Print possibilityes
- 6+0
- Gearless
- No
- Fast sleeve change
- No
- Web width (mm)
- 1270
- Print width (mm)
- 1200
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 900
- Unwinder type
- DOUBLE AXIS DROP SLICE
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- DOUBLE AXIS TURRET FLYING SLICE
- Max reel diameter rewinder (mm)
- 800
- Drying
- HOT AIR
- Videocamera
- YES
- Web guides
- YES, 1 before print and 1 before rewind
- Inking system
- 4 Printing units (stations 2-3-4-5) equipped with enclosed doctor blade chambers with ceramic anilox rollers;2 Printing units (stations 1 and 6) equipped with fountain rubber roller (machine prepared for application of enclosed doctor blades as the other units)
- Anilox
- 5 anilox roller ceramic coated and laser engraved to 120 lines/cm; • 2 anilox roller mechanically engraved (for fountain roller system) to 100 lines/cm.
- Print cylinders
- complete with gears as follows:6 repeat length 320 mm.;6 repeat length 350 mm ;6 repeat length 370 mm ;6 repeat length 400 mm; 6 repeat length 430 mm;6 repeat length 460 mm ;6 repeat length 480 mm ;6 repeat length 500 mm.;6 repeat length 550 mm.;6 repeat length 600 mm.;6 repeat length 620 mm.;6 repeat length 650 mm.;6 repeat length 700 mm.;6 repeat length 750 mm.
- Note
- Material : plastic webs; Transmission type: bull-gear; Length registers: motorized remote controlled; Side registers: manual; Decks positioning system: automatic with microprocessor, 1 motor each deck; Locking system of the printing units: manual; Hoisting system: double electric hoists for printing rollers handling;
| Maschinencode | FL647 |
| Hersteller | OFEM |
| Modello | COLUMBUS 7/906 |
| Baujahr | 2000 |
| Number of colors | 6 |
| Print possibilityes | 6+0 |
| Gearless | No |
| Fast sleeve change | No |
| Web width (mm) | 1270 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 900 |
| Unwinder type | DOUBLE AXIS DROP SLICE |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | DOUBLE AXIS TURRET FLYING SLICE |
| Max reel diameter rewinder (mm) | 800 |
| Drying | HOT AIR |
| Videocamera | YES |
| Web guides | YES, 1 before print and 1 before rewind |
| Inking system | 4 Printing units (stations 2-3-4-5) equipped with enclosed doctor blade chambers with ceramic anilox rollers;2 Printing units (stations 1 and 6) equipped with fountain rubber roller (machine prepared for application of enclosed doctor blades as the other units) |
| Anilox | 5 anilox roller ceramic coated and laser engraved to 120 lines/cm; • 2 anilox roller mechanically engraved (for fountain roller system) to 100 lines/cm. |
| Print cylinders | complete with gears as follows:6 repeat length 320 mm.;6 repeat length 350 mm ;6 repeat length 370 mm ;6 repeat length 400 mm; 6 repeat length 430 mm;6 repeat length 460 mm ;6 repeat length 480 mm ;6 repeat length 500 mm.;6 repeat length 550 mm.;6 repeat length 600 mm.;6 repeat length 620 mm.;6 repeat length 650 mm.;6 repeat length 700 mm.;6 repeat length 750 mm. |
| Note | Material : plastic webs; Transmission type: bull-gear; Length registers: motorized remote controlled; Side registers: manual; Decks positioning system: automatic with microprocessor, 1 motor each deck; Locking system of the printing units: manual; Hoisting system: double electric hoists for printing rollers handling; |
