- Maschinencode
- FL488
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Baujahr
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1010
- Unwinder type
- TURRET AUTOMATIC
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- TURRET AUTOMATIC
- Max reel diameter rewinder (mm)
- 1000
- Drying
- electric
- Videocamera
- BST
- Corona treatment
- YES
- Web guides
- BST
- Vyscosity control
- No
- Inking system
- Closed chamber Doctor blades
- Anilox
- 13 pcs from 80L/cm to 340L/cm
- Print Sleeves
- 296 - sleeve change out of the machine

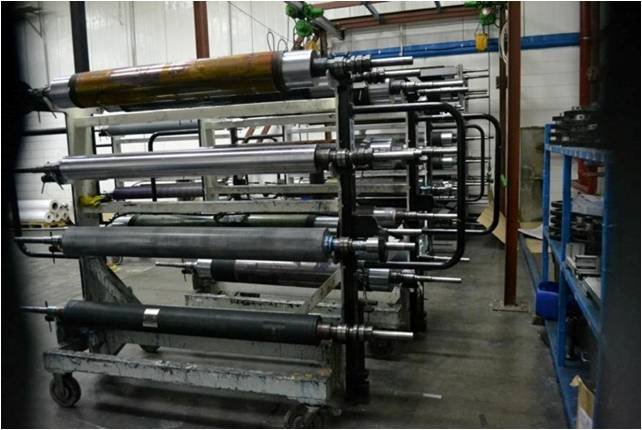

- Print cylinders
- Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine
- Note
- Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories.
| Maschinencode | FL488 |
| Hersteller | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Baujahr | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1010 |
| Unwinder type | TURRET AUTOMATIC |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | TURRET AUTOMATIC |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | electric |
| Videocamera | BST |
| Corona treatment | YES |
| Web guides | BST |
| Vyscosity control | No |
| Inking system | Closed chamber Doctor blades |
| Anilox | 13 pcs from 80L/cm to 340L/cm |
| Print Sleeves | 296 - sleeve change out of the machine |
| Print cylinders | Sleeve change out of the machine - Robotic system for fast change of mandrels/ cylinders in the machine |
| Note | Output : 364m/min ; Material PE , LDPE, PP, Polyamide, Hdpe, OPP, Paper.Include all parts & accessories. |
