- Maschinencode
- FL1229
- Hersteller
- UTECO
- Modello
- Jade 641
- Baujahr
- 1991
- Number of colors
- 6
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1350
- Print width (mm)
- 1300
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1500

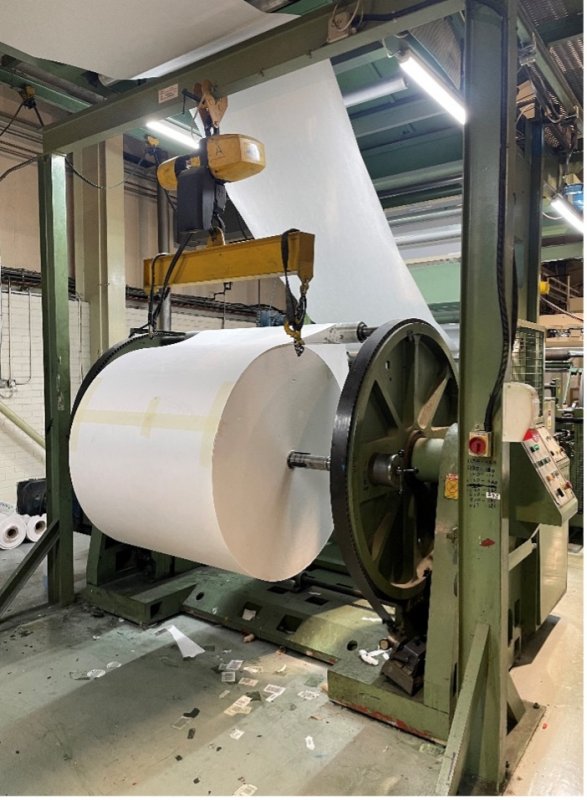

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1300
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1300
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
- Videocamera
- BST
- Web guides
- yes in and out
- Inking system
- Closed chamber doctor blades
- Print Sleeves
- 48 sleeves
| Maschinencode | FL1229 |
| Hersteller | UTECO |
| Modello | Jade 641 |
| Baujahr | 1991 |
| Number of colors | 6 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1350 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1500 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1300 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1300 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | BST |
| Web guides | yes in and out |
| Inking system | Closed chamber doctor blades |
| Print Sleeves | 48 sleeves |
