- Maschinencode
- FL1181
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello
- Novoflex
- Baujahr
- 1999
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil
- Videocamera
- Yes
- Web guides
- BST
- Vyscosity control
- new viscosity meter, electric ink circulation system
- Anilox
- ± 35 pcs
- Print Sleeves
- ± 300 pcs
- Note
- Materials : LDPE, PP, PA: 20–150 µm, HDPE, OPP: 12–100 µm, Laminates: approx. 120–150 µm, Paper: 30–120 g/m², ALU (soft, hard): from 10 µm Inline trimming / slitting
| Maschinencode | FL1181 |
| Hersteller | WINDMÖLLER & HÖLSCHER |
| Modello | Novoflex |
| Baujahr | 1999 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 760 |
| Unwinder type | turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil |
| Videocamera | Yes |
| Web guides | BST |
| Vyscosity control | new viscosity meter, electric ink circulation system |
| Anilox | ± 35 pcs |
| Print Sleeves | ± 300 pcs |
| Note | Materials : LDPE, PP, PA: 20–150 µm, HDPE, OPP: 12–100 µm, Laminates: approx. 120–150 µm, Paper: 30–120 g/m², ALU (soft, hard): from 10 µm Inline trimming / slitting |
FLEXOTECNICA 10NG
-
Maschinencode: FL0632
-
Baujahr: 2009
-
Web width (mm): 1260
BIELLONI THEOREMA
-
Maschinencode: FL0993
-
Baujahr: 2002
-
Web width (mm): 1300
UTECO TOPAZ 608
-
Maschinencode: FL1177
-
Baujahr: 2019
-
Web width (mm): 1350

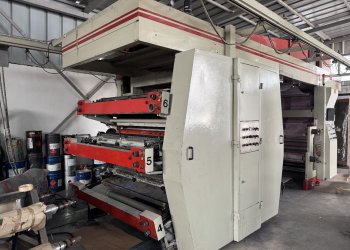

REMAK
-
