- Maschinencode
- FL1076
- Hersteller
- UTECO
- Modello
- EMERALD 825
- Baujahr
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

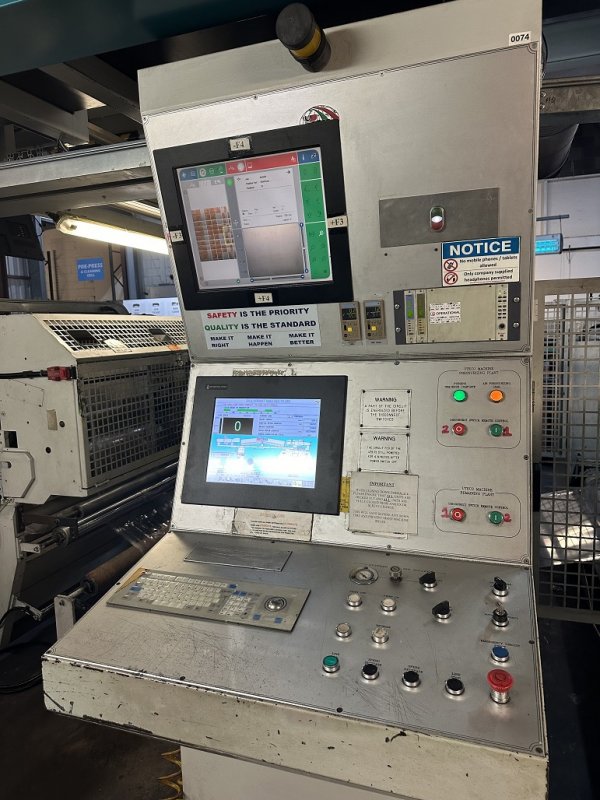

- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones, 4 fans, 2 gas burners: DRYING TUNNEL: tot heat 216kW, air speed 35m/s, 6 mt length, In blow fan 10000Nm3/h outflow 1200Nm3/h, BETWEEN COL DRY: tot heat 118kW, air speed 35m/s, In blow fan 6900Nm3/h outflow 8300Nm3/h

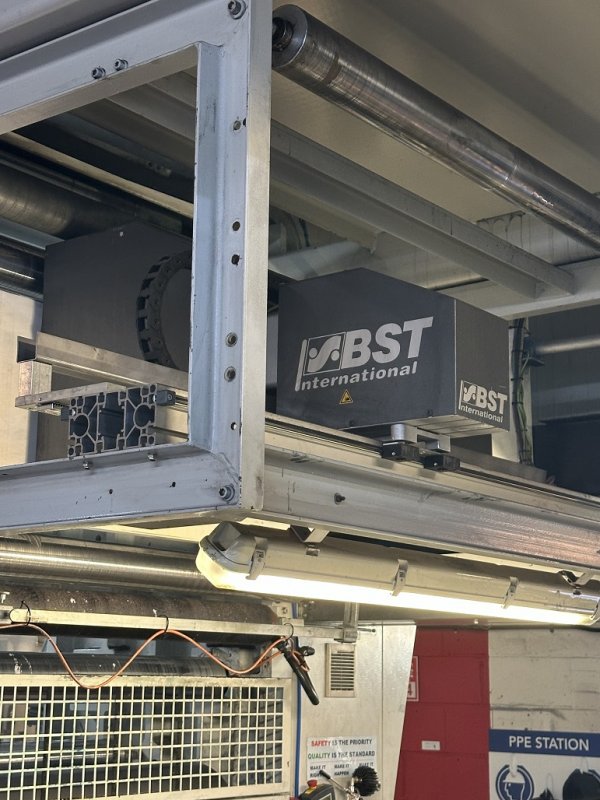

- Videocamera
- BST with defect control
- Inking system
- Closed chamber doctor blades
- Anilox
- 16 ceramic anilox sleeves
- Print Sleeves
- 116 print sleeves
- Note
- Available as optional for additional price plate mounter Heaford with cameras. Mandrel already suitable for this press. Mechanical speed 365 m/min chiller
| Maschinencode | FL1076 |
| Hersteller | UTECO |
| Modello | EMERALD 825 |
| Baujahr | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones, 4 fans, 2 gas burners: DRYING TUNNEL: tot heat 216kW, air speed 35m/s, 6 mt length, In blow fan 10000Nm3/h outflow 1200Nm3/h, BETWEEN COL DRY: tot heat 118kW, air speed 35m/s, In blow fan 6900Nm3/h outflow 8300Nm3/h |
| Videocamera | BST with defect control |
| Inking system | Closed chamber doctor blades |
| Anilox | 16 ceramic anilox sleeves |
| Print Sleeves | 116 print sleeves |
| Note | Available as optional for additional price plate mounter Heaford with cameras. Mandrel already suitable for this press. Mechanical speed 365 m/min chiller |
