- Maschinencode
- FL1065
- Hersteller
- PCMC
- Modello
- INFINITY
- Baujahr
- 2005
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1240
- Min print repeat (mm)
- 356
- Max print repeat (mm)
- 800
- Unwinder type
- Turret with fast reel loading (no shaft removal). Flying splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret with fast reel un loading (no shaft removal). Flying splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- eXtreme drying system from PCMC, High efficiency drying. Max set temperature 200C, Each eXtreme module has independent temperature control
- Corona treatment
- Enercon
- Web guides
- 2 BST web guides
- Vyscosity control
- Auto viscosity control form Inkspec, recently renovated
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
- Print Sleeves
- Approx 180
- Note

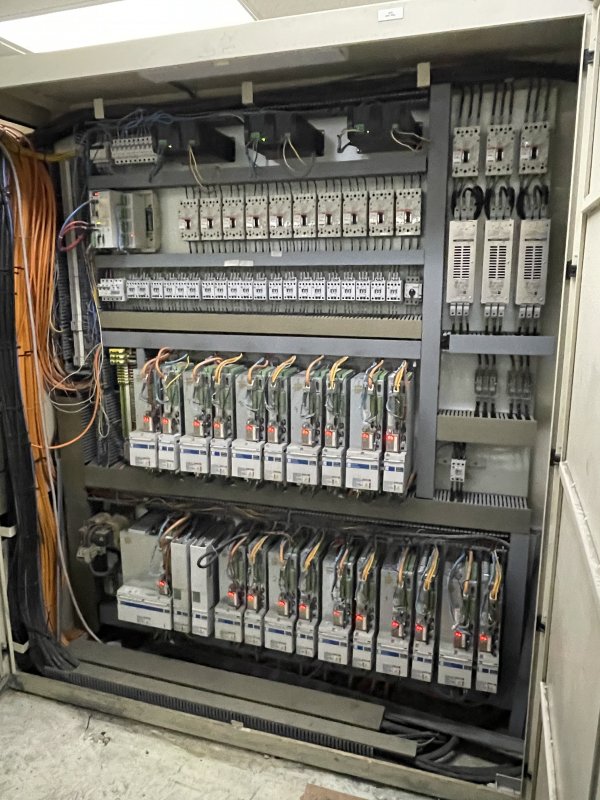

- Electronic shaft and drives from Bosch Rexroth Indramat CI drive system wit AC servomotors Precision print deck position, pat from PCMC with double recirculation ball guides top and bottom. PLate mandrel diam 105mm Anilox mandrel diam 121mm Outer diam aniolx 148 mm 2500mm CI diameter Electric and electronic spare parts available, . Price reduced for immediate purchase due to limited time for machine removal
| Maschinencode | FL1065 |
| Hersteller | PCMC |
| Modello | INFINITY |
| Baujahr | 2005 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1240 |
| Min print repeat (mm) | 356 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret with fast reel loading (no shaft removal). Flying splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret with fast reel un loading (no shaft removal). Flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | eXtreme drying system from PCMC, High efficiency drying. Max set temperature 200C, Each eXtreme module has independent temperature control |
| Corona treatment | Enercon |
| Web guides | 2 BST web guides |
| Vyscosity control | Auto viscosity control form Inkspec, recently renovated |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
| Print Sleeves | Approx 180 |
| Note | Electronic shaft and drives from Bosch Rexroth Indramat CI drive system wit AC servomotors Precision print deck position, pat from PCMC with double recirculation ball guides top and bottom. PLate mandrel diam 105mm Anilox mandrel diam 121mm Outer diam aniolx 148 mm 2500mm CI diameter Electric and electronic spare parts available, . Price reduced for immediate purchase due to limited time for machine removal |
