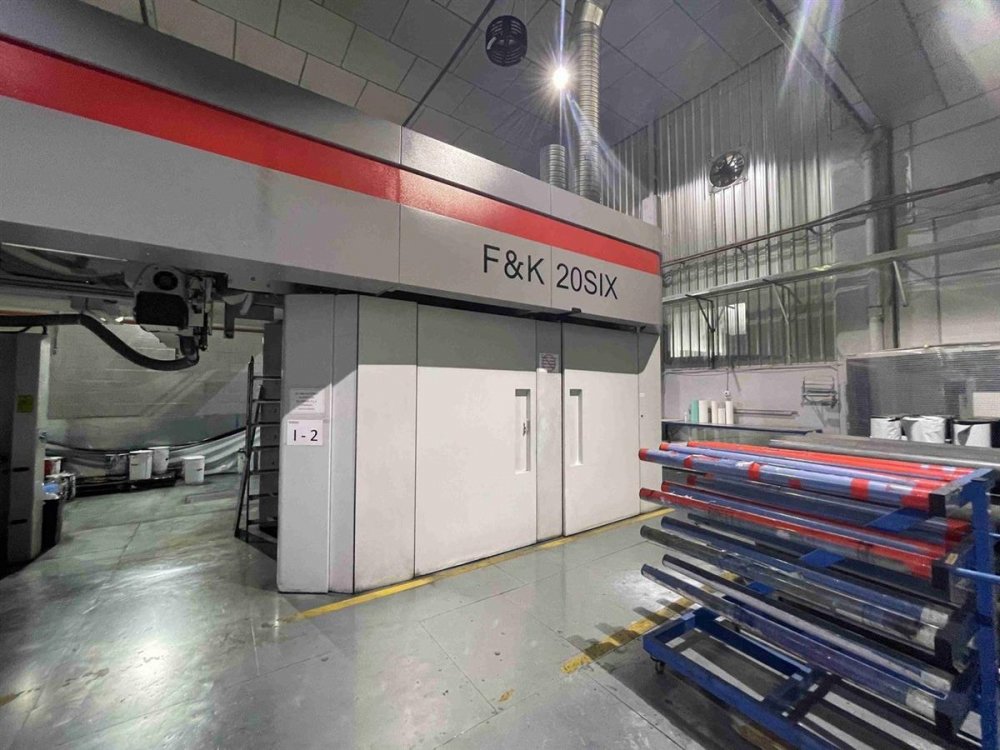

- Maschinencode
- FL975
- Hersteller
- BOBST
- Modello
- 20 SIX S
- Baujahr
- 2014
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800

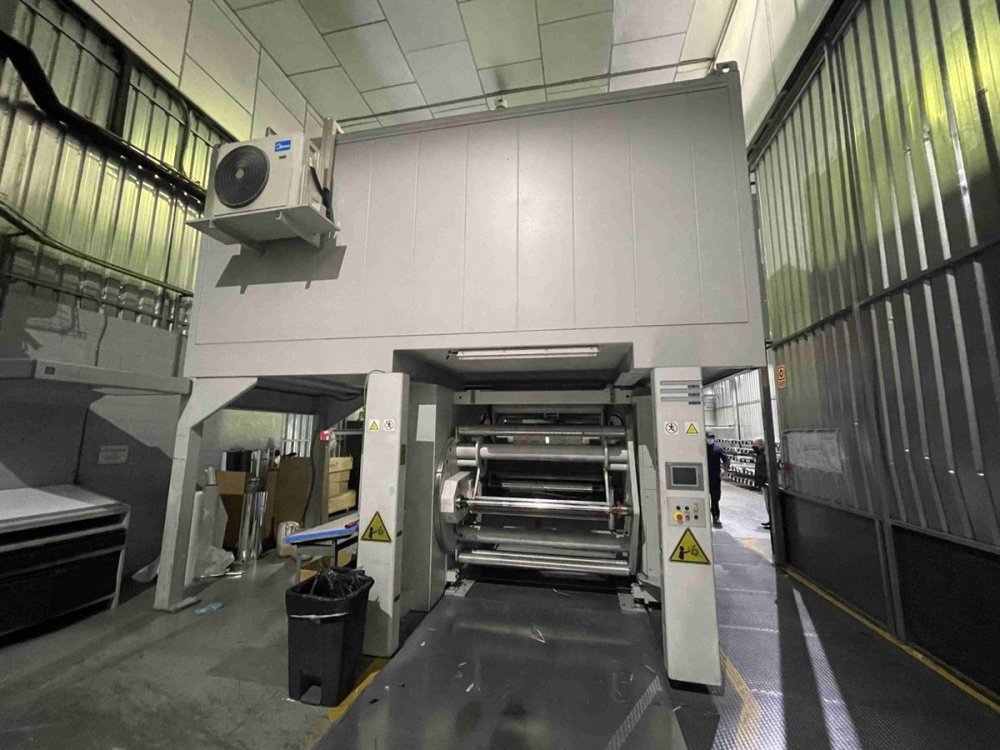

- Unwinder type
- Double automatic
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Double automatic
- Max reel diameter rewinder (mm)
- 1020
- Drying
- Electric
- Videocamera
- Yes
- Web guides
- Yes

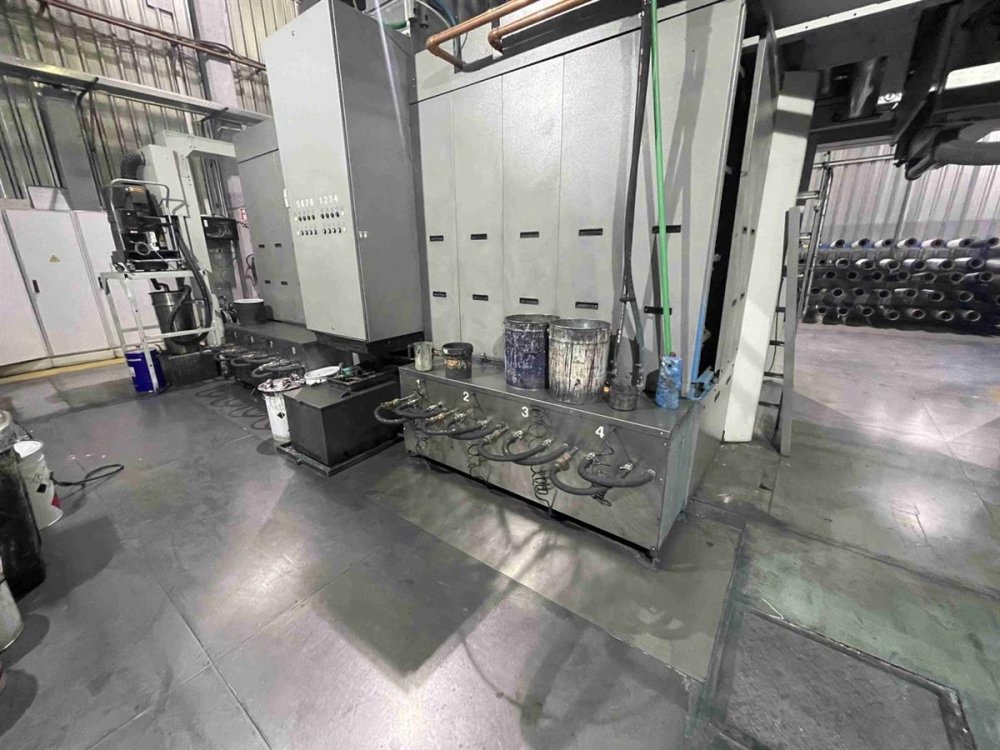

- Vyscosity control
- Yes
- Washing system
- Yes, automatic

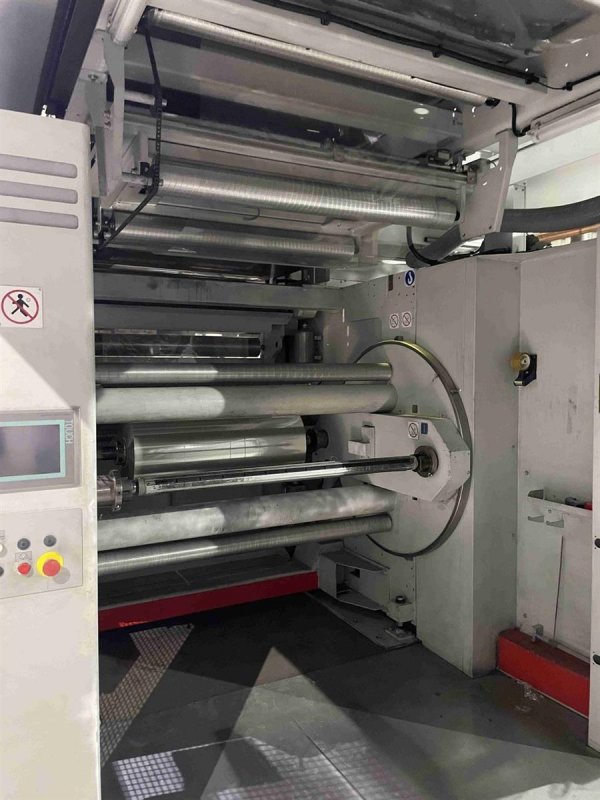

- Inking system
- Closed chamber doctor blades
- Anilox
- 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ;
- Print Sleeves
- 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650
- Note

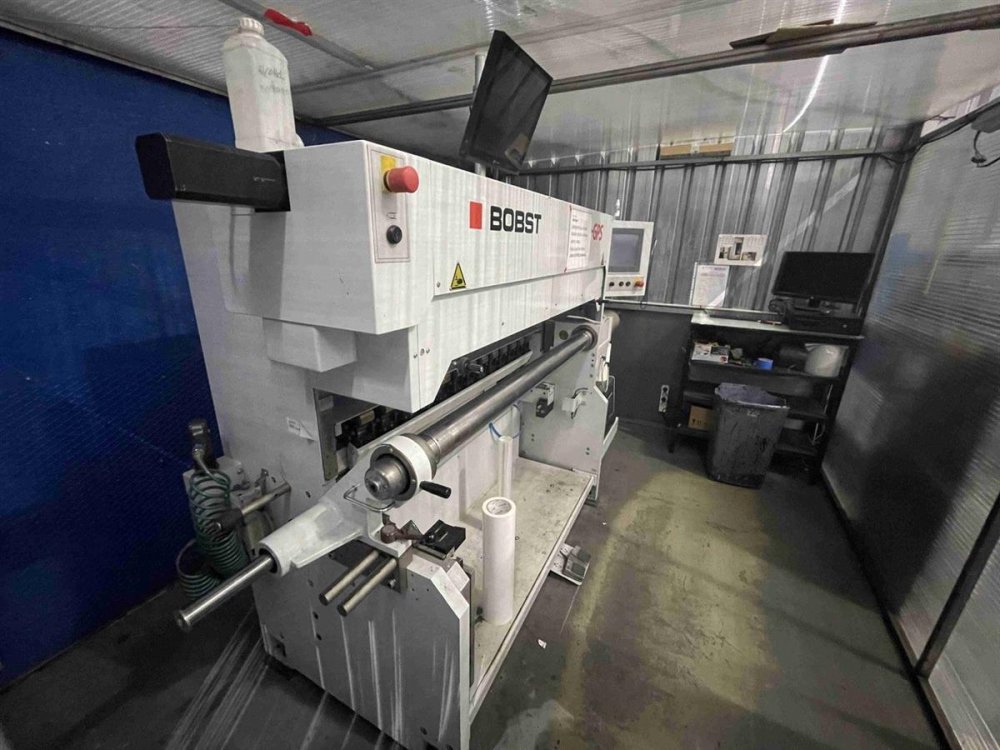

- Speed 500 mt/min Smart GPS register system including Plate Mounter
| Maschinencode | FL975 |
| Hersteller | BOBST |
| Modello | 20 SIX S |
| Baujahr | 2014 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double automatic |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Double automatic |
| Max reel diameter rewinder (mm) | 1020 |
| Drying | Electric |
| Videocamera | Yes |
| Web guides | Yes |
| Vyscosity control | Yes |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 20, ceramic anilox sleeves as follows 6x 400 L/cm-vol3,7 ; 1x 400 L/cm-vol.3,5; 2x 340 L/cm-vol.6,1 ; 1x 340 L/cm.-vol.4,9; 2x 280 L/cm-vol.7,2; 2x 200 L/cm-vol.9,0 ; 1x 200 L/cm-vol.8,5 ; 1x 180 L/cm-vol.10,7; 1x 160 L/cm-vol.11,6 ; 1x 140 L/cm-vol.16,8 ; 1x 100 L/cm-vol.15,0; 1x 80 L/cm-vol. 20,6 ; |
| Print Sleeves | 228 as follows 8 for each following repeat : 320mm, 330 , 340, 350 , 360 , 370 , 380 , 390 , 400 , 410 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 540 , 550 , 560 , 580 , 600 , 620 , 650 |
| Note | Speed 500 mt/min Smart GPS register system including Plate Mounter |
