- Maschinencode
- FL833
- Hersteller

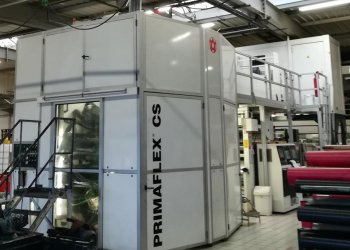

- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX CS
- Baujahr
- 2005
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 800
- Unwinder type
- Turret Automatic non-stop
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic non-stop
- Max reel diameter rewinder (mm)
- 800
- Drying
- Electric - Drying between colors and bridge dryer system
- Videocamera
- BST
- Corona treatment
- Corona AFS Treatment
- Web guides
- Before printing and after rewinding BST
- Washing system
- yes
- Inking system
- Water /solvent . Doctor Blade Chamber
- Anilox
- Approx. 16
- Print Sleeves
- Approx. 150
- Note
- Material to be printed PAPER / PE / LDPE / HDPE / PA / PP / OPP / BOPP / PET Length register : through gearless Side register : electric - Motorized 8 - Pneumatic PUMPS Length cutting with circular knifes
| Maschinencode | FL833 |
| Hersteller | WINDMÖLLER & HÖLSCHER |
| Modello | PRIMAFLEX CS |
| Baujahr | 2005 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 850 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret Automatic non-stop |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic non-stop |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Electric - Drying between colors and bridge dryer system |
| Videocamera | BST |
| Corona treatment | Corona AFS Treatment |
| Web guides | Before printing and after rewinding BST |
| Washing system | yes |
| Inking system | Water /solvent . Doctor Blade Chamber |
| Anilox | Approx. 16 |
| Print Sleeves | Approx. 150 |
| Note | Material to be printed PAPER / PE / LDPE / HDPE / PA / PP / OPP / BOPP / PET Length register : through gearless Side register : electric - Motorized 8 - Pneumatic PUMPS Length cutting with circular knifes |
