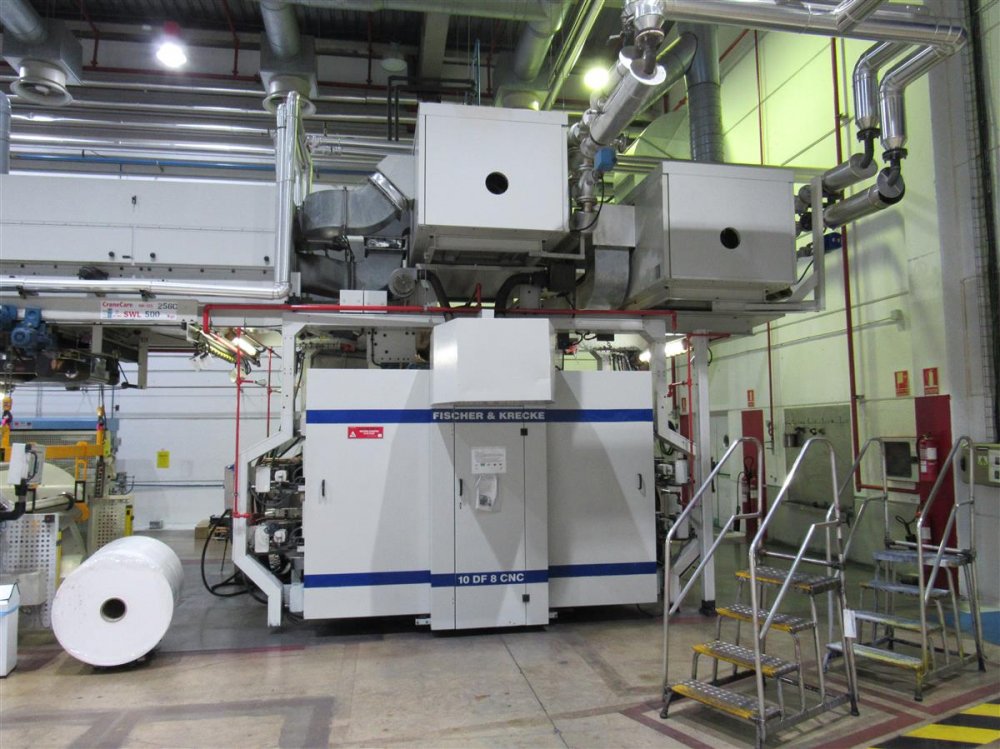

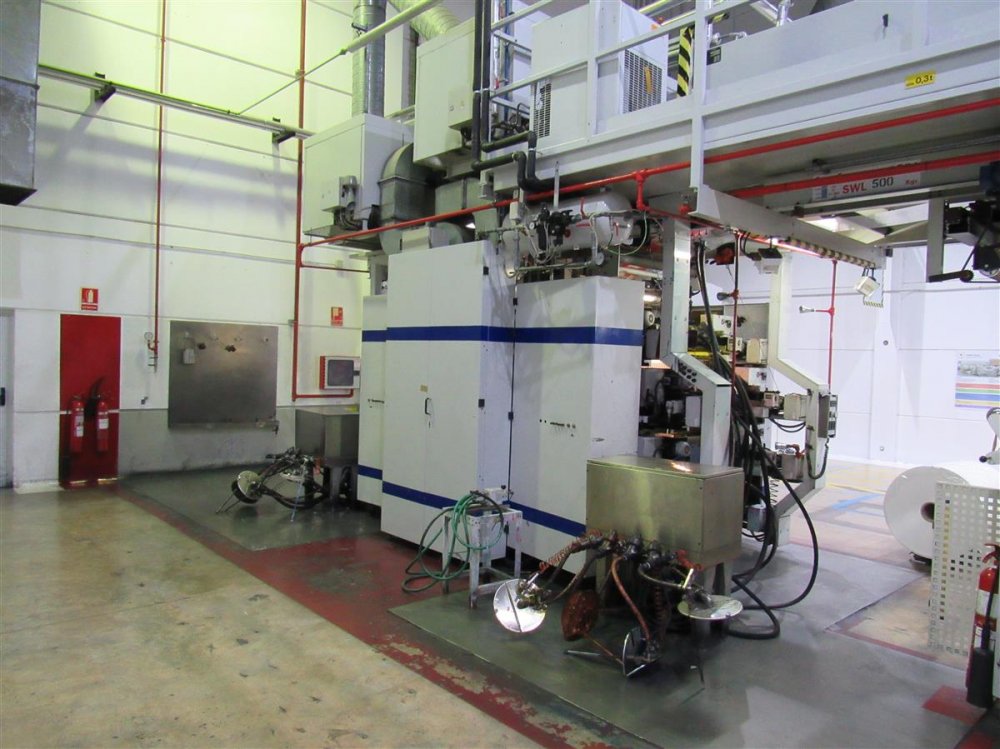

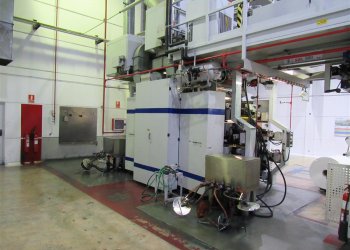

FISCHER & KRECKE 10DF/ 8 CNC Flexodruck Maschine 8 farben

Maschinencode
FL799
Hersteller
FISCHER & KRECKE
Modello
10DF/ 8 CNC
Baujahr
1998
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
940
Print width (mm)
900
Min print repeat (mm)
300
Max print repeat (mm)
650

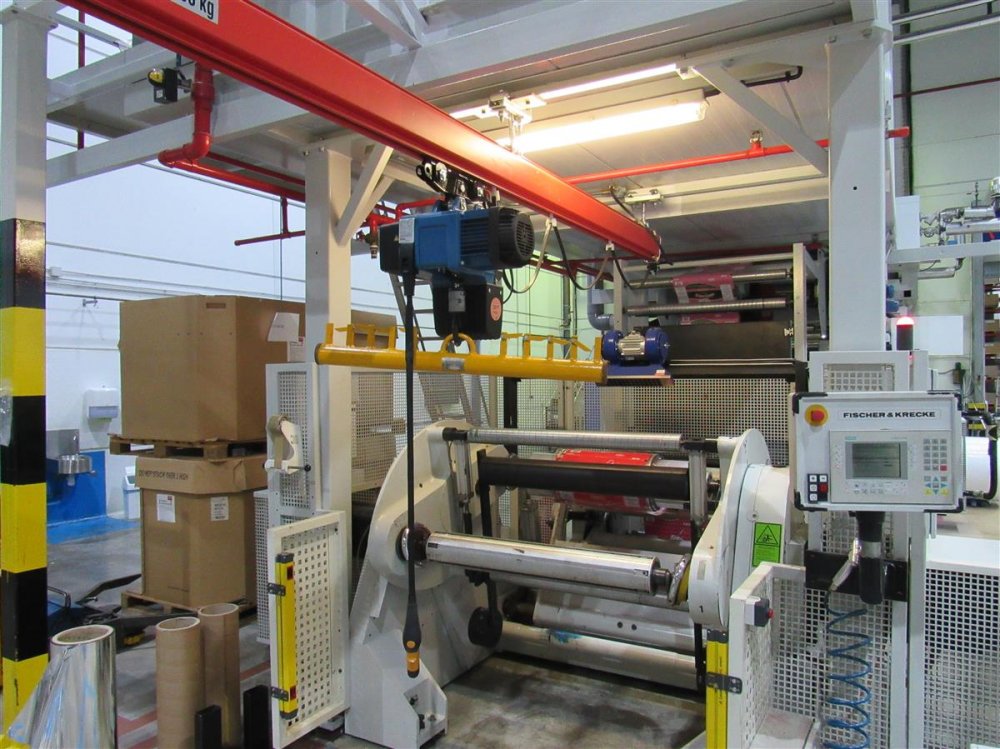

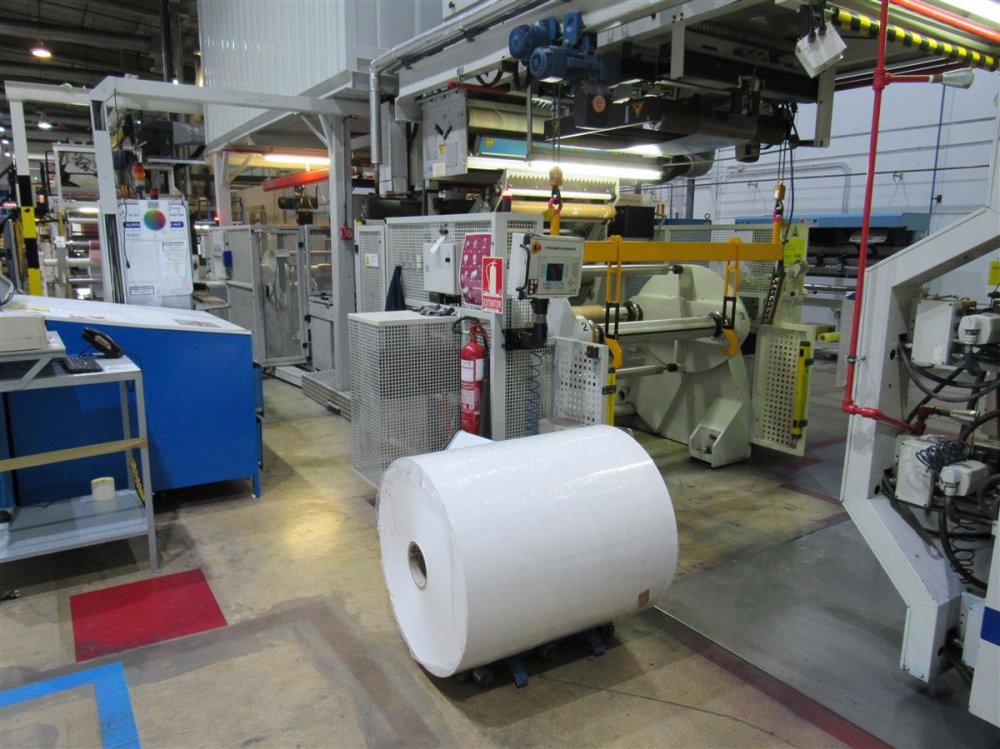

Unwinder type
Non stop flying splice
Max reel diameter unwinder (mm)
1000
Rewinder type
Non stop flying splice
Max reel diameter rewinder (mm)
1000
Drying
1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght
Web guides
Fife
Inking system
Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps
Anilox
22

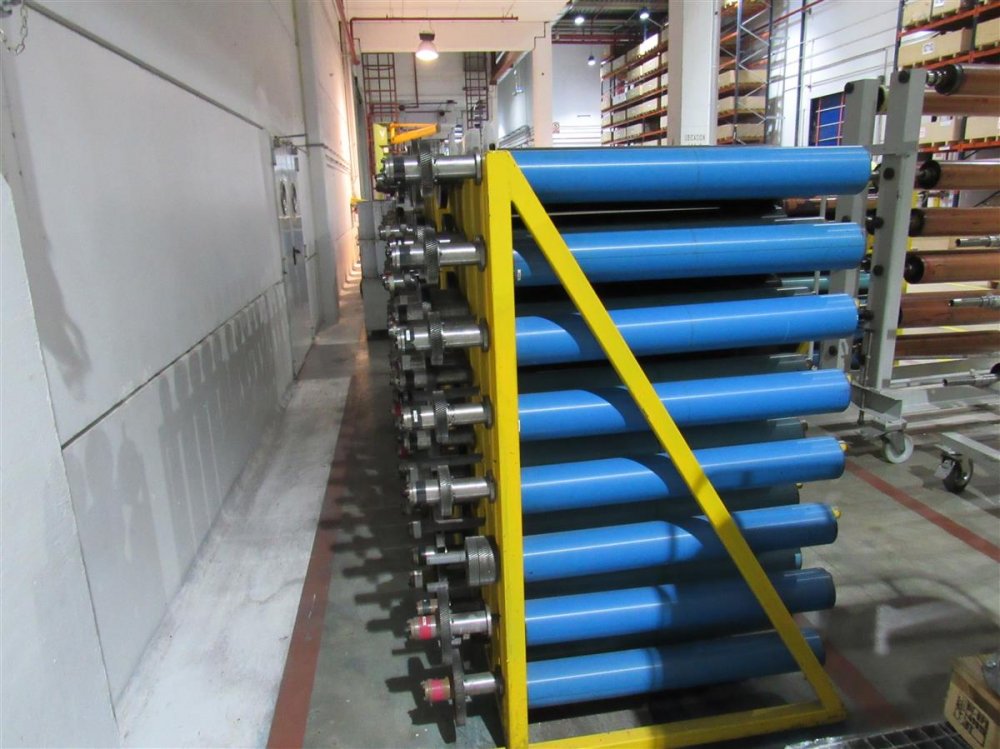

Print Sleeves
460
Note
gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min
Maschinencode FL799
Hersteller FISCHER & KRECKE
Modello 10DF/ 8 CNC
Baujahr 1998
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 940
Print width (mm) 900
Min print repeat (mm) 300
Max print repeat (mm) 650
Unwinder type Non stop flying splice
Max reel diameter unwinder (mm) 1000
Rewinder type Non stop flying splice
Max reel diameter rewinder (mm) 1000
Drying 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght
Web guides Fife
Inking system Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps
Anilox 22
Print Sleeves 460
Note gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min
** SOLD **
