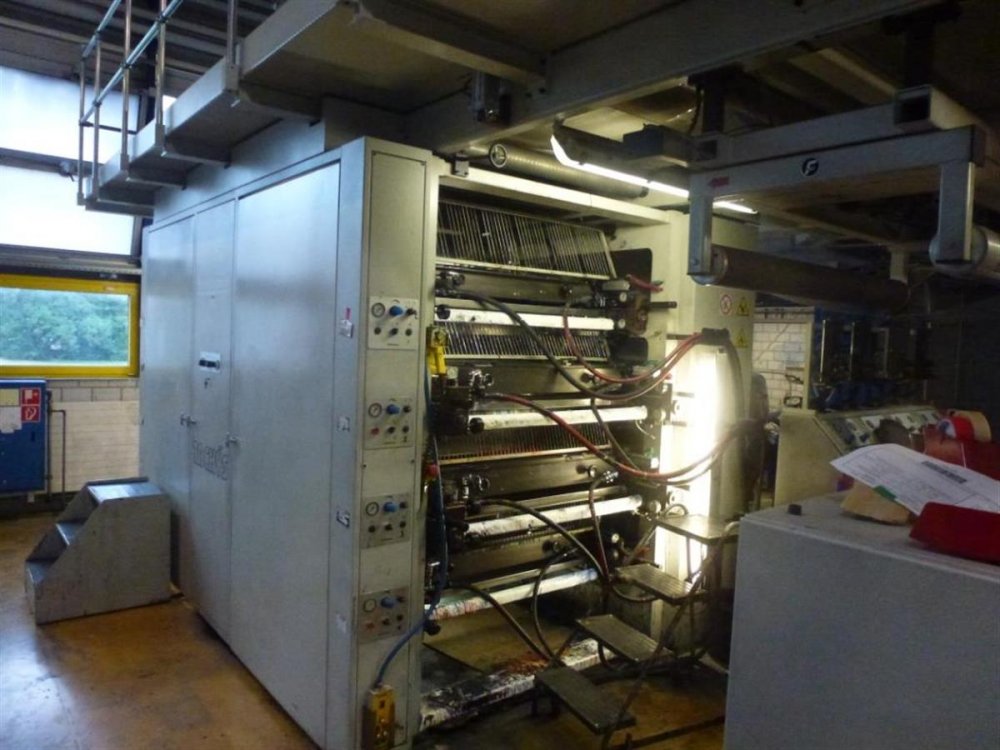

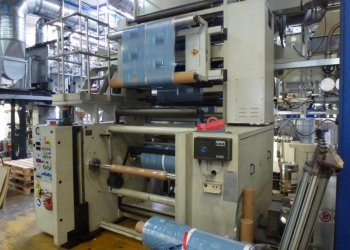

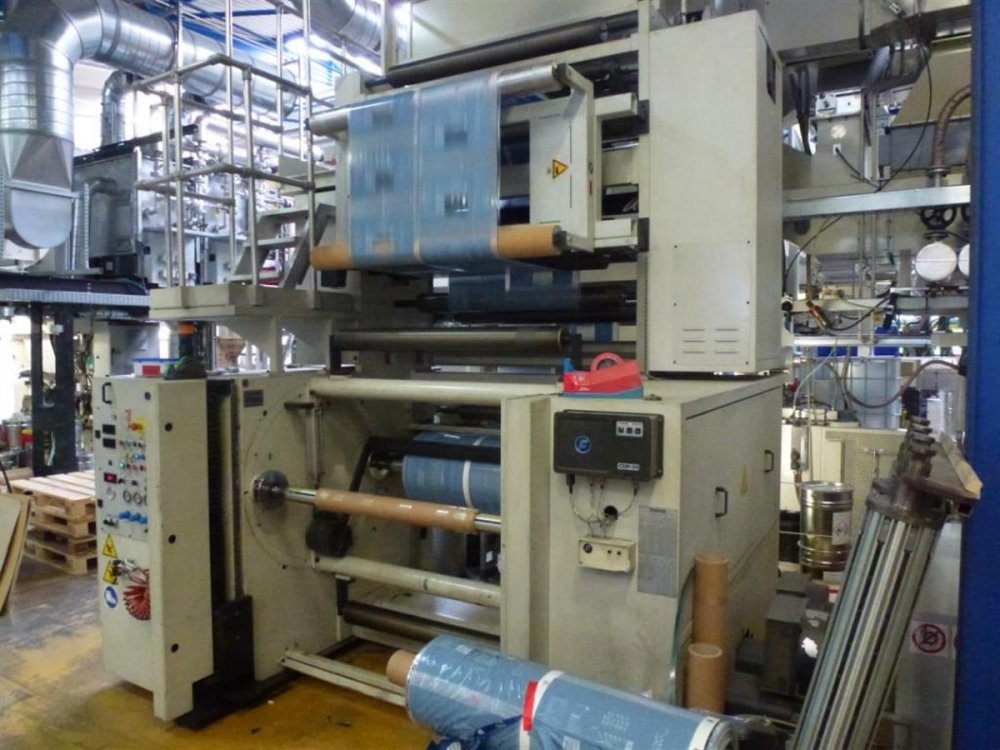

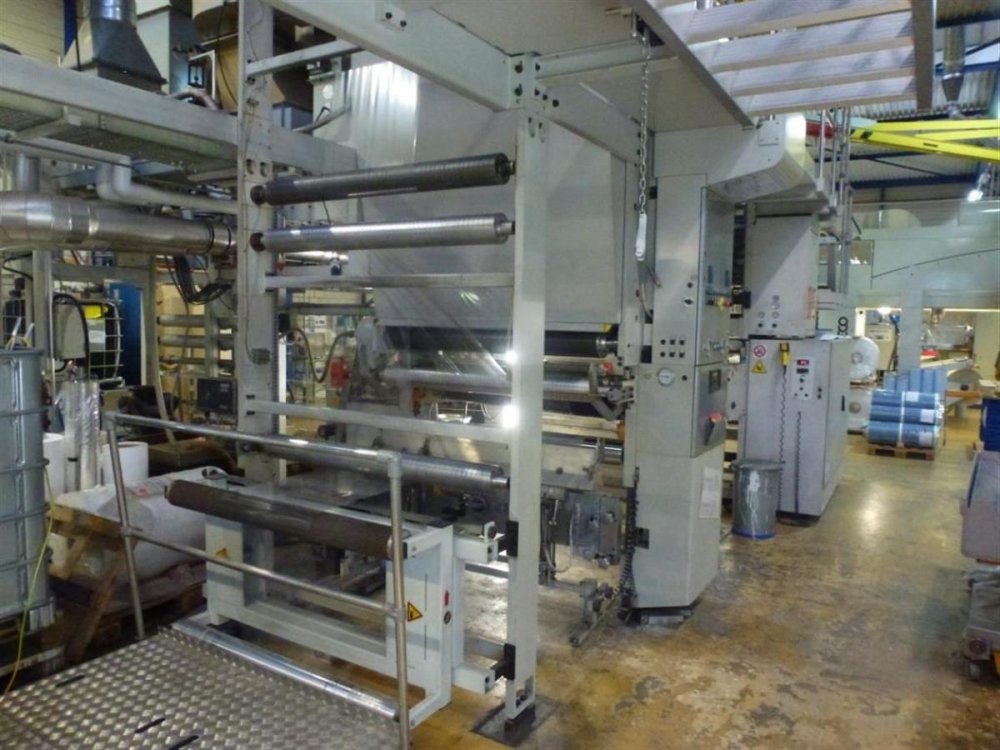

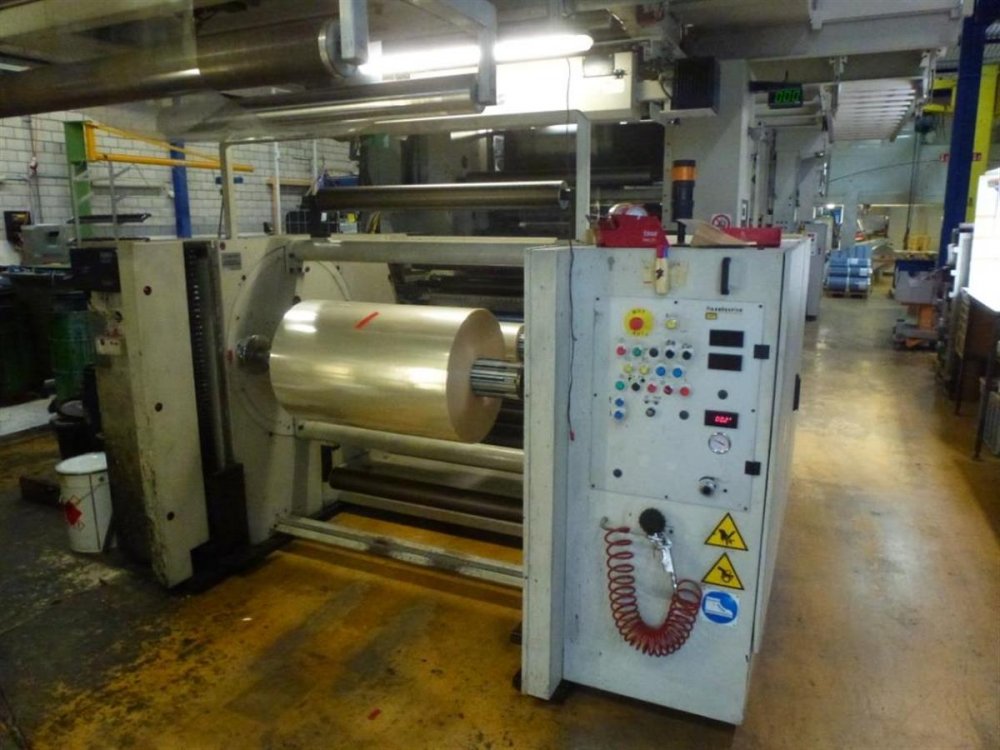

FLEXOTECNICA TACHIS Flexodruck Maschine 9 farben

Maschinencode
FL707
Hersteller
FLEXOTECNICA
Modello
TACHIS
Baujahr
2000
Number of colors
9
Print possibilityes
8 flexo + 1 gravure downstream
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
300
Max print repeat (mm)
650
Unwinder type
Turret automtic
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Drying
2 zones 2 thermo oil heat exchangers
Videocamera
Yes Eltromat
Corona treatment
Yes AFS
Web guides
yes in and out
Vyscosity control
Yes New Celio
Inking system
Closed chamber Doctor blades
Anilox
12 ceramic anilox sleeves
Print Sleeves
248 print sleeves, 8 for each repeat 300 , 310, 320, 325, 330, 340, 350, 360, 370,375, 380, 390,400,410,420,430, 440,450,460,470,480,490,500,520,530,540,550,560,570,580, 600
Print cylinders
2 sets of carriers
Note
Gravure coating unit in line
Maschinencode FL707
Hersteller FLEXOTECNICA
Modello TACHIS
Baujahr 2000
Number of colors 9
Print possibilityes 8 flexo + 1 gravure downstream
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 300
Max print repeat (mm) 650
Unwinder type Turret automtic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones 2 thermo oil heat exchangers
Videocamera Yes Eltromat
Corona treatment Yes AFS
Web guides yes in and out
Vyscosity control Yes New Celio
Inking system Closed chamber Doctor blades
Anilox 12 ceramic anilox sleeves
Print Sleeves 248 print sleeves, 8 for each repeat 300 , 310, 320, 325, 330, 340, 350, 360, 370,375, 380, 390,400,410,420,430, 440,450,460,470,480,490,500,520,530,540,550,560,570,580, 600
Print cylinders 2 sets of carriers
Note Gravure coating unit in line
** SOLD **
