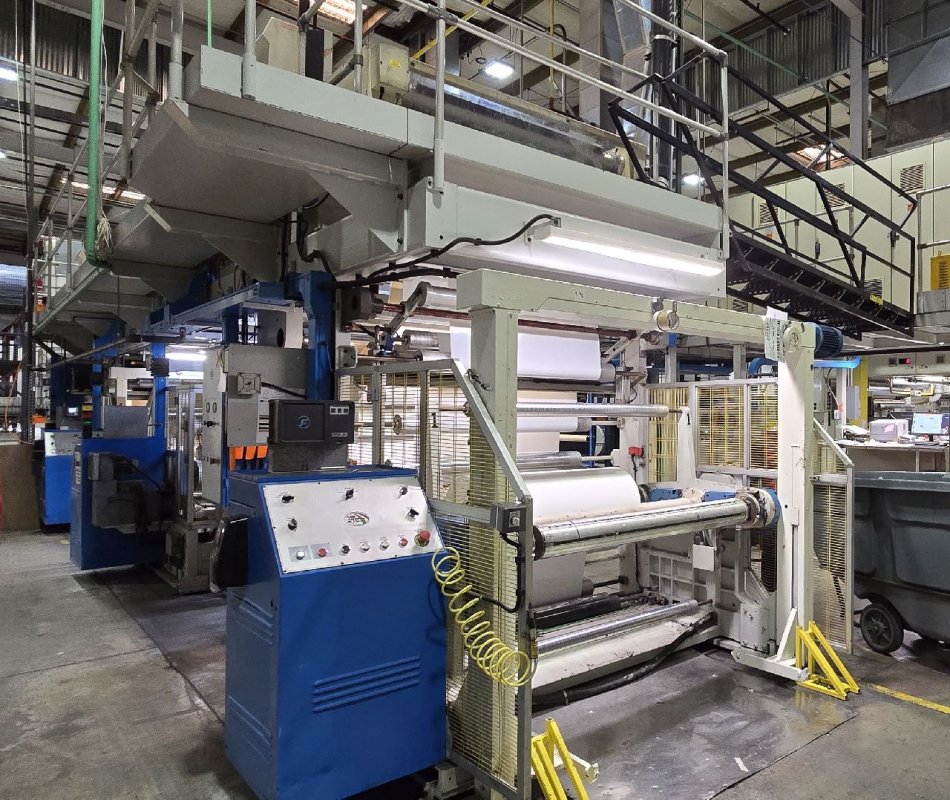

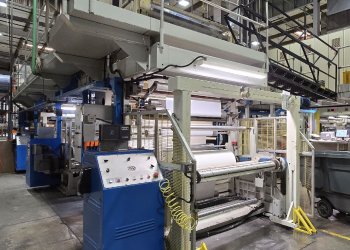

- Machine code
- LA481
- Manufacturer
- UTECO
- Modello
- Horizon D/TH
- Year
- 2005
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENT / WATER BASED
- Overhaul/renovation
- Upgrades done to PLC, web guides and operator control panel
- Working width (mm)
- 1320
- Materials
- PET, BOPP, CPP, ALU foil, LLDPE, papers
- Speed
- 300m/min
- First unwinder type
- Turret
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 1000
- Rewinder type
- Turret
- Max diameter reel rewinder
- 800
- Coating unit
- Gravure coating unit with 2 roll and chamer system
- Drying
- two-zone drying system, both 4 meter long each, each has 2 fans. Each gas burner is rated for 200,000 Kcal/h
- Corona treatment
- Enercon treater at unwind and rewind (two treaters)
- Note
- Spare anilox, brand new doctor blade chamber and spare safety chucks Flying splice on all turrets
| Machine code | LA481 |
| Manufacturer | UTECO |
| Modello | Horizon D/TH |
| Year | 2005 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Overhaul/renovation | Upgrades done to PLC, web guides and operator control panel |
| Working width (mm) | 1320 |
| Materials | PET, BOPP, CPP, ALU foil, LLDPE, papers |
| Speed | 300m/min |
| First unwinder type | Turret |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 800 |
| Coating unit | Gravure coating unit with 2 roll and chamer system |
| Drying | two-zone drying system, both 4 meter long each, each has 2 fans. Each gas burner is rated for 200,000 Kcal/h |
| Corona treatment | Enercon treater at unwind and rewind (two treaters) |
| Note | Spare anilox, brand new doctor blade chamber and spare safety chucks Flying splice on all turrets |
