- Machine code
- FL850
- Manufacturer
- CARINT
- Modello

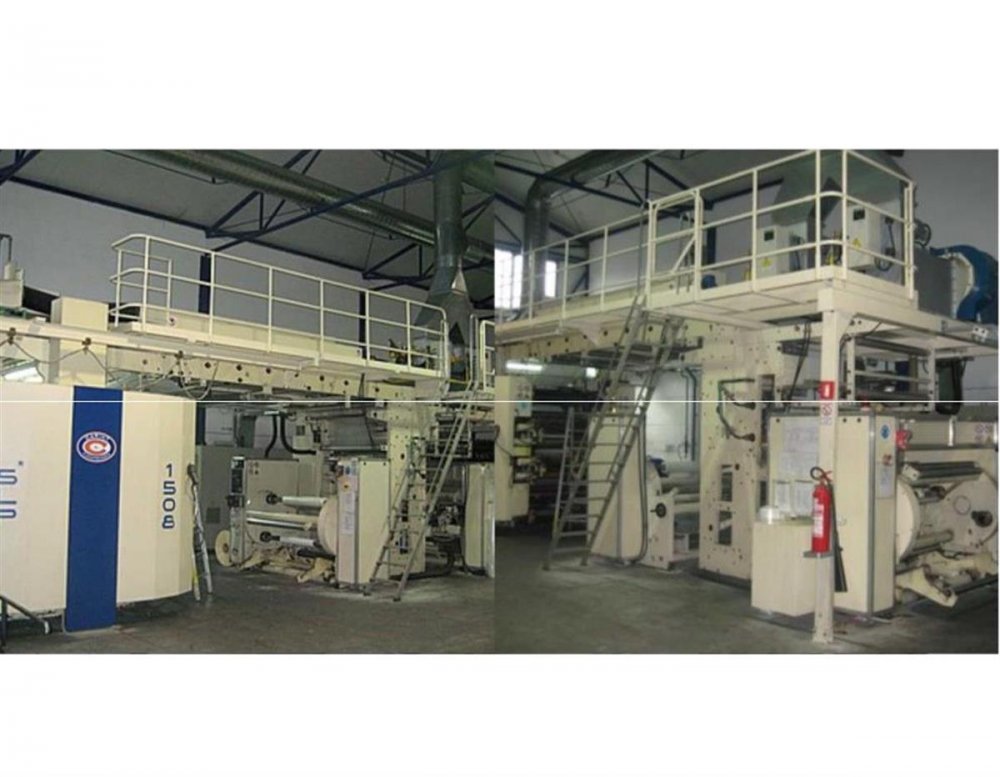

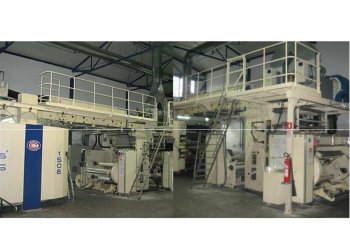

- SPL 1508 mod 120 s/n 824
- Year
- 2006
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 685
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Semi-automatic turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas 2 packages.
- Videocamera
- BST PROSCAN.
- Web guides
- Edge guide before/after printing FIFE
- Inking system
- solvent based
- Anilox
- 20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex
- Print cylinders
- 176pcs
- Note
- Solvent based inks Printing speed up to 300m/min
| Machine code | FL850 |
| Manufacturer | CARINT |
| Modello | SPL 1508 mod 120 s/n 824 |
| Year | 2006 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 685 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Semi-automatic turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas 2 packages. |
| Videocamera | BST PROSCAN. |
| Web guides | Edge guide before/after printing FIFE |
| Inking system | solvent based |
| Anilox | 20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex |
| Print cylinders | 176pcs |
| Note | Solvent based inks Printing speed up to 300m/min |
