- Machine code
- FL799
- Manufacturer
- FISCHER & KRECKE
- Modello
- 10DF/ 8 CNC
- Year
- 1998
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 940
- Print width (mm)
- 900
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650
- Unwinder type
- Non stop flying splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Non stop flying splice
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght
- Web guides
- Fife
- Inking system
- Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps
- Anilox
- 22

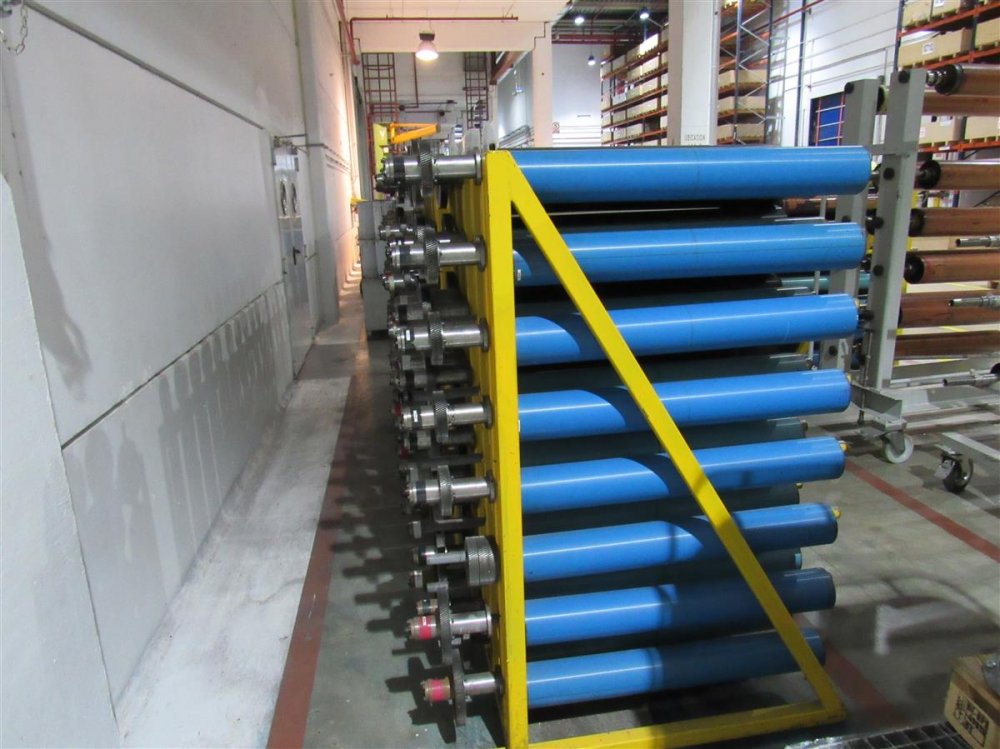

- Print Sleeves
- 460
- Note
- gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min
| Machine code | FL799 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 10DF/ 8 CNC |
| Year | 1998 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 940 |
| Print width (mm) | 900 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Non stop flying splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Non stop flying splice |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght |
| Web guides | Fife |
| Inking system | Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps |
| Anilox | 22 |
| Print Sleeves | 460 |
| Note | gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min |
