- Codice Macchina
- EC52
- Manufacturer
- Jiangsu Laiyi Packing Machinery
- Year
- 2017
- Larghezza (mm)
- 1400
- Unita di spalmatura / accoppiamento 1
- Primer coating unit. coating roller diameter 200mm, Double hood drying, total length 6 meters, stainless steel inside, max. oven temp- 150 C, heating source - gas, air volume 2x4500m3/h
- Unita di spalmatura / accoppiamento 2

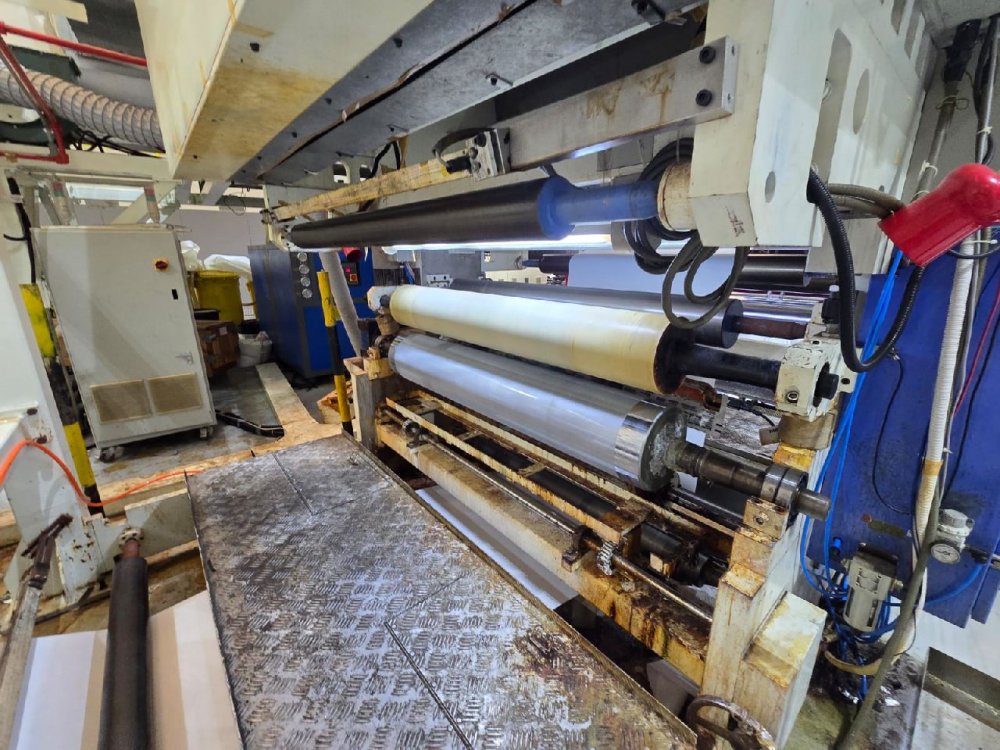

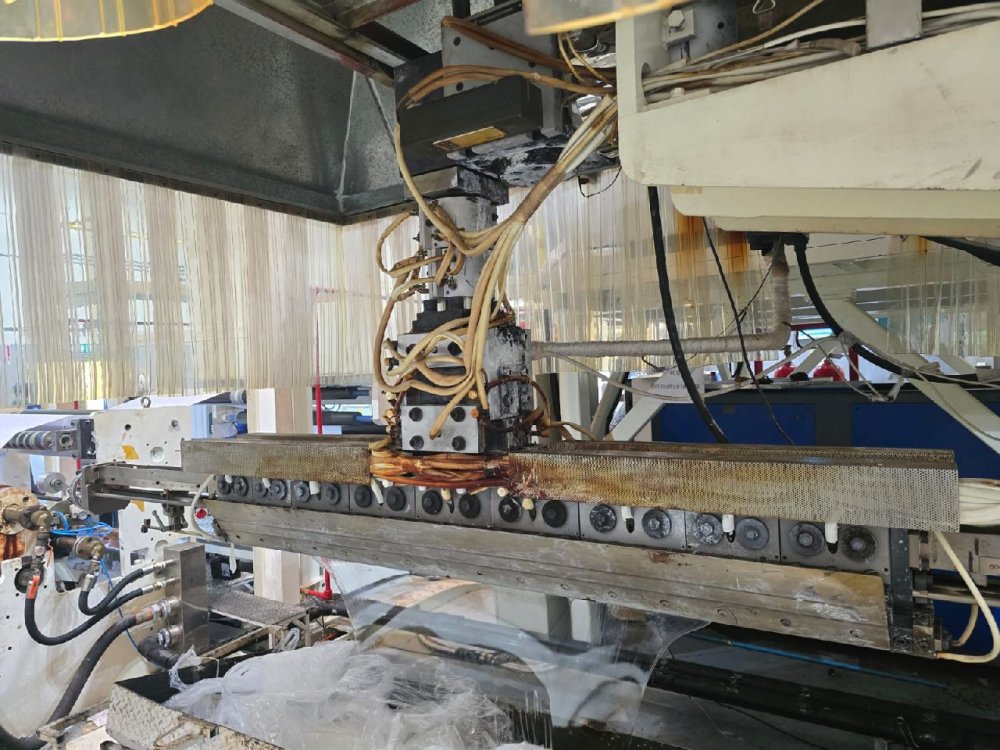

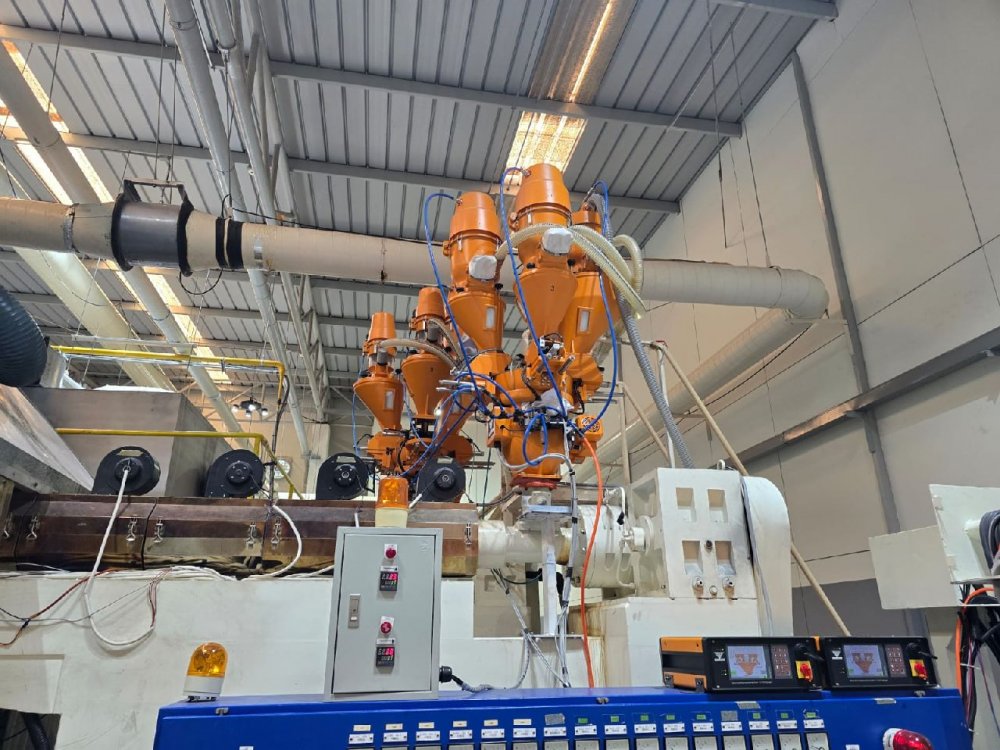

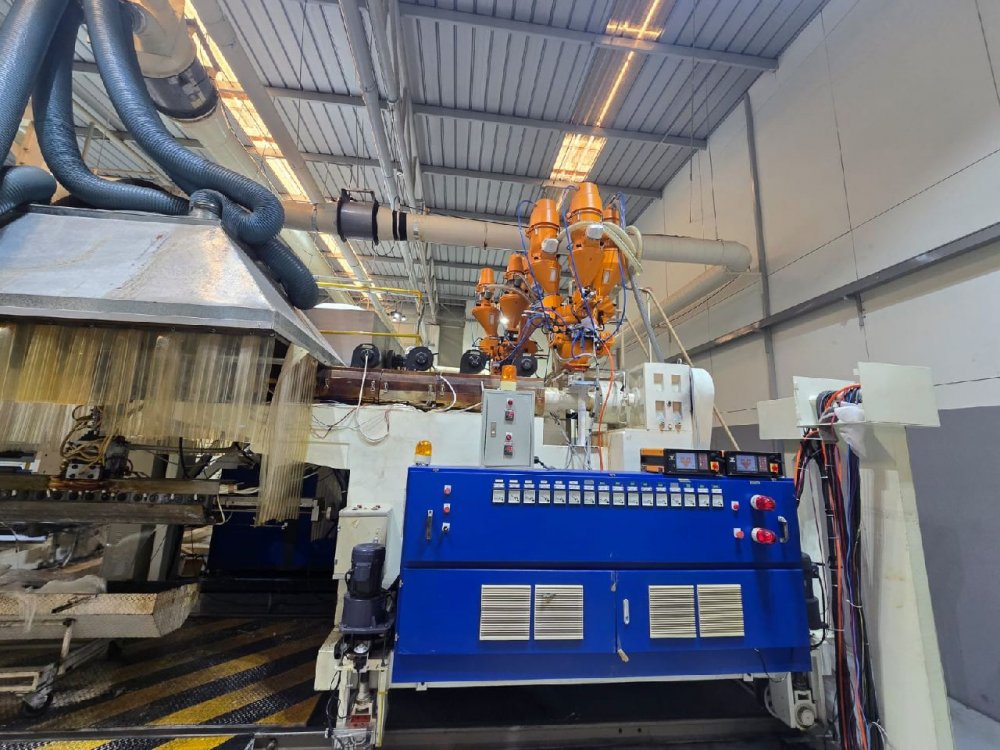

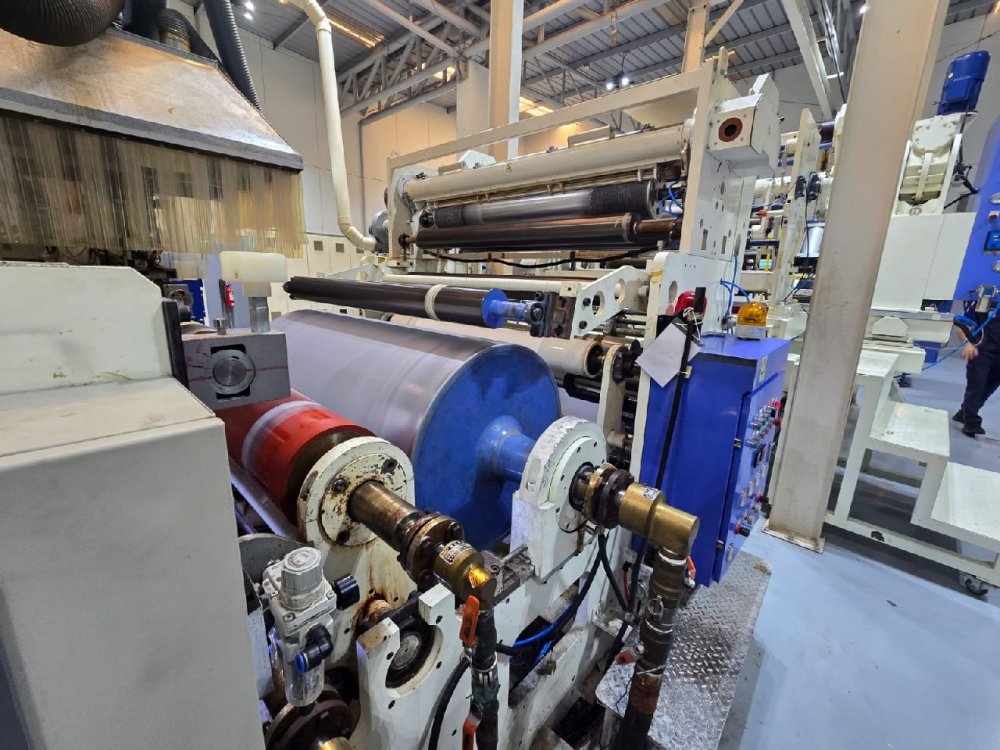

- Co- extrusion unit: A Extruder capacity 200 kg/h, screw ZB, G 90mm, L/D 35/1, heating zones - 6, mesh diameter 100mm, max. extrusion amount 260kg/h B Extrude capacity 70 kg/h, screw ZB, L/D 33/1, heating zones- 5, mesh diameter 80mm,max. extrusion amount 150kg/h feeding capacity: 400 kg/h Air gap height 80-150mm Die head: 3 layers distributor A/A/B; B/A/A; B/A/B; A/A/A Make : Sumitomo max. T-die Lip width - 1450mm Mould lip gap - 0.4-1.2mm Block type - Inside blocking Heating way - electricity Heating zones -11 Internal deckling system for width reduction. Final net coating width 600-1300mm 3 rollers lamination Chill roller diameter 700mm, chill roller length 1400mm,chiller roller mirror surface type, surface roughness RZ 0.5 Silicon rubber roller diameter - 255mm, Silicon rubber roller length 1400mm Supporting roller diameter 240mm, supporting roller length 140mm Peel Roller diameter 150mm, Peel roller length 1400mm, Siemens drive motor, warm reducer
- Descrizione svolgitore primario

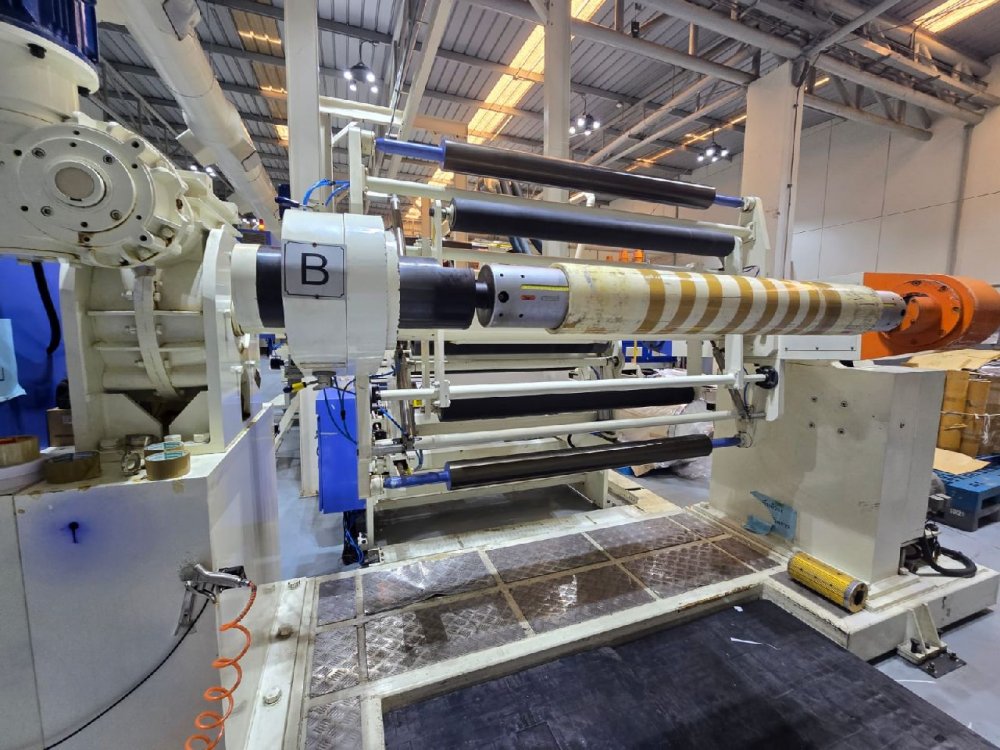

- Turret, max. roll diameter 1200mm,max. roll width 1300mm
- Descrizione svolgitore secondario
- Turret, max. roll diameter 800mm,max. roll width 1300mm
- Descrizione avvolgitore
- turret automatic, max. roll diameter 1200, max roll width 1300mm, tension controlled by Swing roller and AC motor
- Velocità
- 200m/min
- Struttura del prodotto / Materiali
- Materials : roll paper 30-60gsm PET films 12µ BOPP 20 µ MPET 12µ MOPP 18-30µ AL foil 7-9µ
- Ulteriori informazioni
- Chiller unit - 25P, box type. Capacity , 75,164 Kcal/hr Type of Evaporator: Coil/ Inside thread shel and tube type inline edge slitting with 2 rotary knives
| Codice Macchina | EC52 |
| Manufacturer | Jiangsu Laiyi Packing Machinery |
| Year | 2017 |
| Larghezza (mm) | 1400 |
| Unita di spalmatura / accoppiamento 1 | Primer coating unit. coating roller diameter 200mm, Double hood drying, total length 6 meters, stainless steel inside, max. oven temp- 150 C, heating source - gas, air volume 2x4500m3/h |
| Unita di spalmatura / accoppiamento 2 | Co- extrusion unit: A Extruder capacity 200 kg/h, screw ZB, G 90mm, L/D 35/1, heating zones - 6, mesh diameter 100mm, max. extrusion amount 260kg/h B Extrude capacity 70 kg/h, screw ZB, L/D 33/1, heating zones- 5, mesh diameter 80mm,max. extrusion amount 150kg/h feeding capacity: 400 kg/h Air gap height 80-150mm Die head: 3 layers distributor A/A/B; B/A/A; B/A/B; A/A/A Make : Sumitomo max. T-die Lip width - 1450mm Mould lip gap - 0.4-1.2mm Block type - Inside blocking Heating way - electricity Heating zones -11 Internal deckling system for width reduction. Final net coating width 600-1300mm 3 rollers lamination Chill roller diameter 700mm, chill roller length 1400mm,chiller roller mirror surface type, surface roughness RZ 0.5 Silicon rubber roller diameter - 255mm, Silicon rubber roller length 1400mm Supporting roller diameter 240mm, supporting roller length 140mm Peel Roller diameter 150mm, Peel roller length 1400mm, Siemens drive motor, warm reducer |
| Descrizione svolgitore primario | Turret, max. roll diameter 1200mm,max. roll width 1300mm |
| Descrizione svolgitore secondario | Turret, max. roll diameter 800mm,max. roll width 1300mm |
| Descrizione avvolgitore | turret automatic, max. roll diameter 1200, max roll width 1300mm, tension controlled by Swing roller and AC motor |
| Velocità | 200m/min |
| Struttura del prodotto / Materiali | Materials : roll paper 30-60gsm PET films 12µ BOPP 20 µ MPET 12µ MOPP 18-30µ AL foil 7-9µ |
| Ulteriori informazioni | Chiller unit - 25P, box type. Capacity , 75,164 Kcal/hr Type of Evaporator: Coil/ Inside thread shel and tube type inline edge slitting with 2 rotary knives |
