- Codice Macchina
- BO91
- Manufacturer
- BRUCKNER
- Year
- 2003
- Numero di strati
- 5
- Struttura film
- ABCDE
- Materiali
- BOPP Thickness 10-70 my
- Output
- 2500 Kg/h. max 350m/min
- Larghezza (mm)
- 6600
- Extruder 1 Description
- A - SINGLE SCREW , diam 90mm, 4 components dosing system, output 180kg/h, AC motor New spare inverter available
- Extruder 2 Description
- B - SINGLE SCREW, diam 120mm, 3 components dosing system, output 400kg/h, AC motor New spare inverter available
- Extruder 3 Description

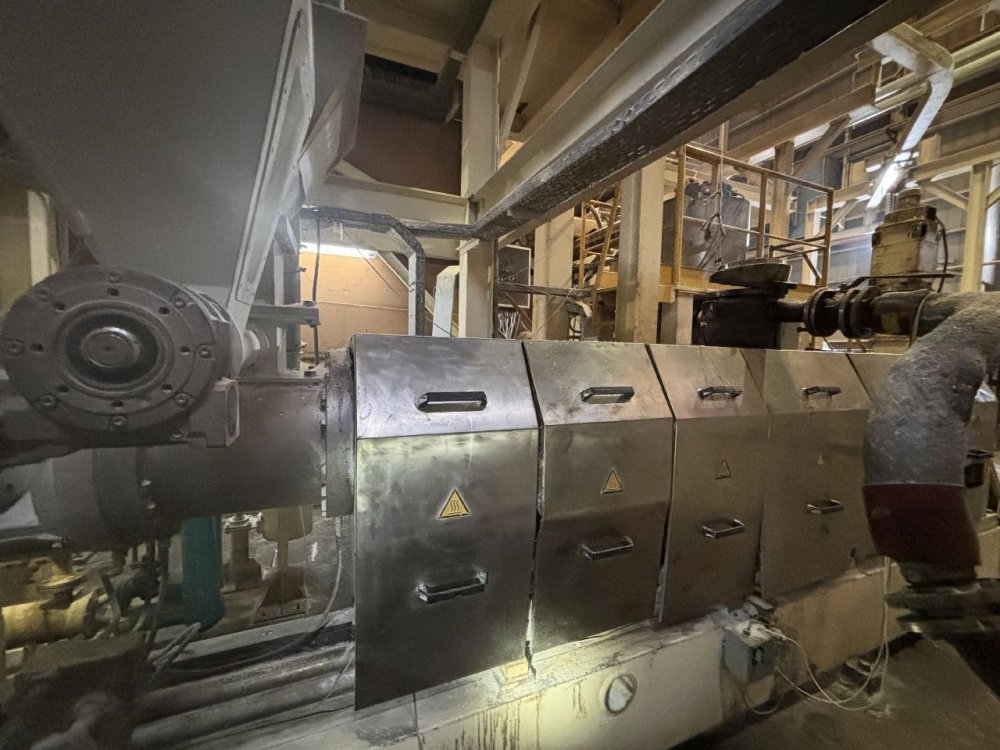

- C - TWIN SCREW diam 2x 139mm Co-rotating, gravimetric dosing unit: 4x pre-dosign + 2 x main, output 2800 kg/h. Customer bought in 2024 new motor SIEMENS for value of over 300 KEur
- Extruder 4 Description
- D - SINGLE SCREW 120mm, 3 components dosing system, output 400kg/h, AC motor New spare inverter available
- Extruder 5 Description
- E - SINGLE SCREW 90mm, 4 components dosing system, output 180kg/h, AC motor New spare inverter available

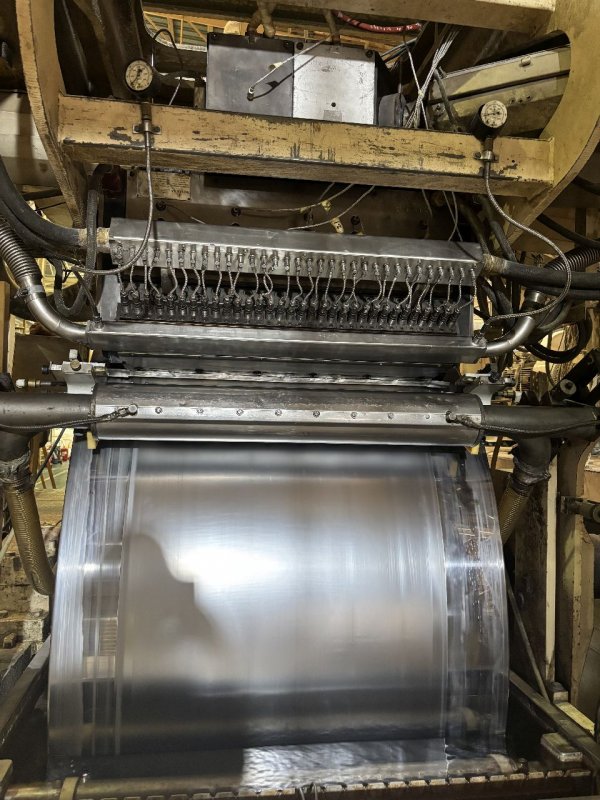

- Descrizione testa
- Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts
- Die width
- 1025mm
- Controllo di spessore
- Automatic thickness control system. Gauge bet rays
- Unità chill roll
- Chill roll in water bath. Gloss surface finish.
- Descrizione MDO
- - 14 x pre-heating rollers (6 chrome plated surface, 8 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts

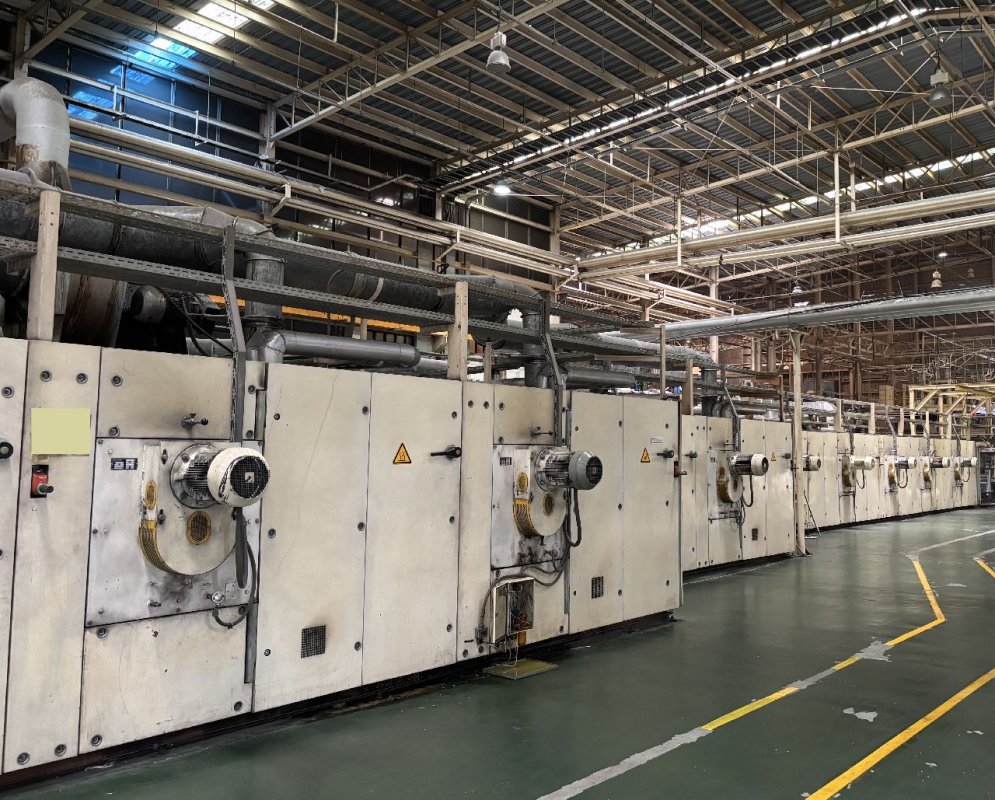

- Descrizione TDO
- - Pre heating section 15m length - Stretching section 12m length - Annealing section 12m length - Heat set section 5,2m length Heating via thermal oil Chain type 4.4.4
- Trattamento Corona
- 2 x MERO treaters
- Unità pull roll
- Thickness gauge Themo Fischer type Beta rays, corona treatment 1 side, 3 generators, edge trim, In lince grinder make Hosokawa Alpine
- Larghezza avvolgitore
- 6600mm net

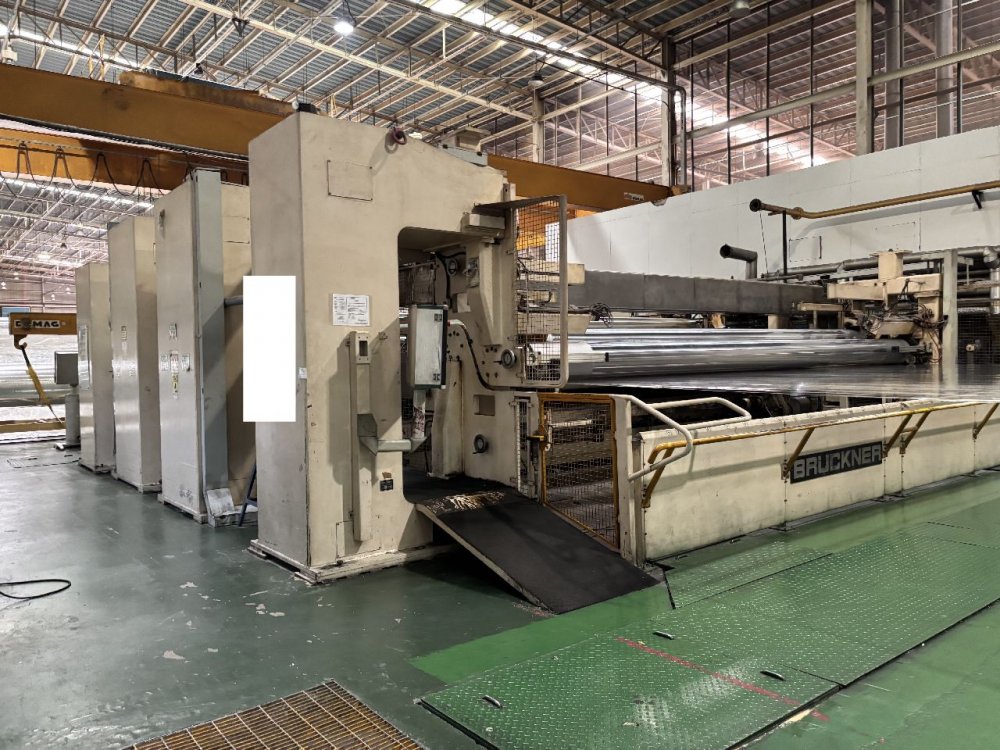

- Descrizione avvolgitore
- Turret type max diam 1200mm

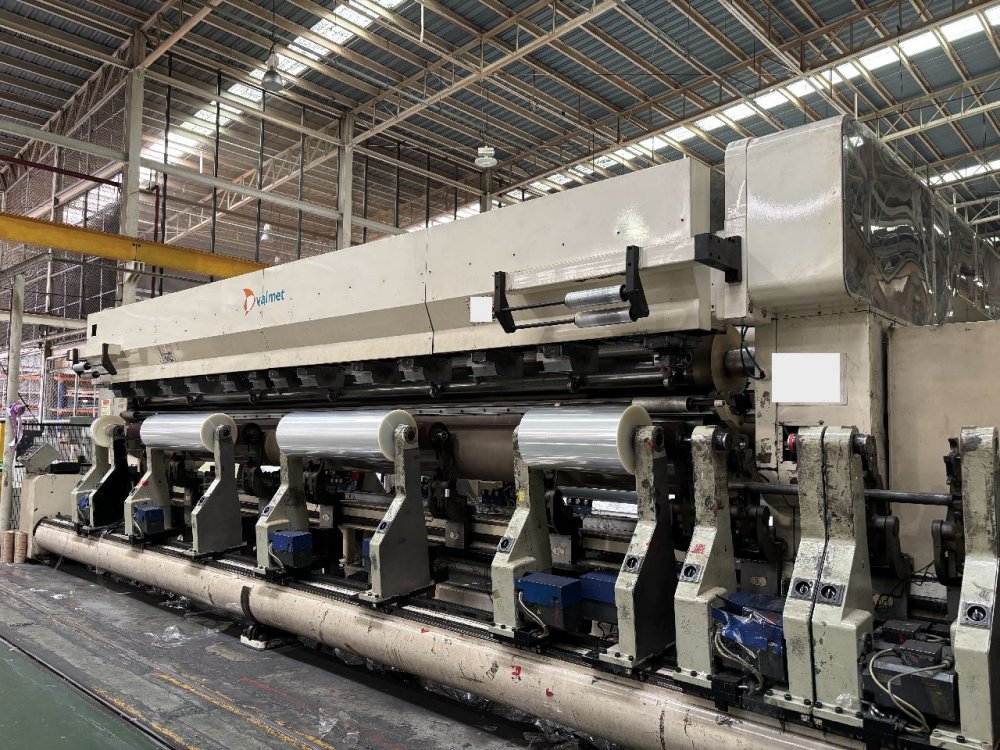

- Taglia cordona
- Atlas slitter, Driven unwinder, Rewinder with independent winding stations center driven, 12 x couple of arms/winding stations. driven position of winding stations. Max diam rewinder 1000mm
- Ulteriori informazioni
- Main extruder twin screw, 4 single screw extruder. Including oil heater, LPG fired Including water chiller Including 1 x compressor Sets of spare parts available PLC for Bruckner line: Siemens S7
| Codice Macchina | BO91 |
| Manufacturer | BRUCKNER |
| Year | 2003 |
| Numero di strati | 5 |
| Struttura film | ABCDE |
| Materiali | BOPP Thickness 10-70 my |
| Output | 2500 Kg/h. max 350m/min |
| Larghezza (mm) | 6600 |
| Extruder 1 Description | A - SINGLE SCREW , diam 90mm, 4 components dosing system, output 180kg/h, AC motor New spare inverter available |
| Extruder 2 Description | B - SINGLE SCREW, diam 120mm, 3 components dosing system, output 400kg/h, AC motor New spare inverter available |
| Extruder 3 Description | C - TWIN SCREW diam 2x 139mm Co-rotating, gravimetric dosing unit: 4x pre-dosign + 2 x main, output 2800 kg/h. Customer bought in 2024 new motor SIEMENS for value of over 300 KEur |
| Extruder 4 Description | D - SINGLE SCREW 120mm, 3 components dosing system, output 400kg/h, AC motor New spare inverter available |
| Extruder 5 Description | E - SINGLE SCREW 90mm, 4 components dosing system, output 180kg/h, AC motor New spare inverter available |
| Descrizione testa | Make Simplas. Automatic thickness profile adjustment via 32 thermal bolts |
| Die width | 1025mm |
| Controllo di spessore | Automatic thickness control system. Gauge bet rays |
| Unità chill roll | Chill roll in water bath. Gloss surface finish. |
| Descrizione MDO | - 14 x pre-heating rollers (6 chrome plated surface, 8 teflon surface). Diam of preheating rollers 614mm - 6 x stretching rollers - 2x Annealing rollers Rollers heated by thermal oil ( thermal oil heater included) Drive/transmission: Distribution gearbox, cordon shaft and belts |
| Descrizione TDO | - Pre heating section 15m length - Stretching section 12m length - Annealing section 12m length - Heat set section 5,2m length Heating via thermal oil Chain type 4.4.4 |
| Trattamento Corona | 2 x MERO treaters |
| Unità pull roll | Thickness gauge Themo Fischer type Beta rays, corona treatment 1 side, 3 generators, edge trim, In lince grinder make Hosokawa Alpine |
| Larghezza avvolgitore | 6600mm net |
| Descrizione avvolgitore | Turret type max diam 1200mm |
| Taglia cordona | Atlas slitter, Driven unwinder, Rewinder with independent winding stations center driven, 12 x couple of arms/winding stations. driven position of winding stations. Max diam rewinder 1000mm |
| Ulteriori informazioni | Main extruder twin screw, 4 single screw extruder. Including oil heater, LPG fired Including water chiller Including 1 x compressor Sets of spare parts available PLC for Bruckner line: Siemens S7 |
