- Codice Macchina
- BO59
- Manufacturer
- BRUCKNER
- Year
- 1996
- Numero di strati
- 3
- Struttura film
- Film width 6300 mm on winder
- Materiali
- BOPP
- Output
- 2060 Kg/h
- Larghezza (mm)
- 6300

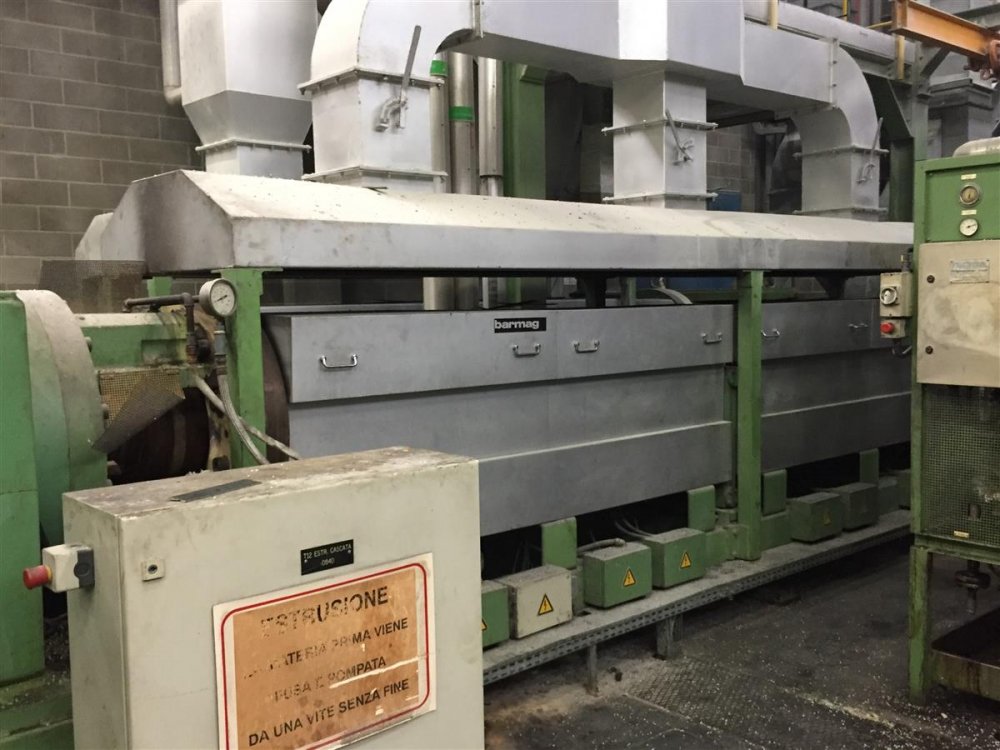

- Extruder 1 Description
- output 105 kg/hr each; L/D 32:1, 100 rpm.
- Extruder 2 Description
- Cascade main extruder, 290 rpm; L/D: 21, 510kw DC.
- Extruder 3 Description
- output 105 kg/hr each; L/D 32:1, 100 rpm.
- Die width
- 833

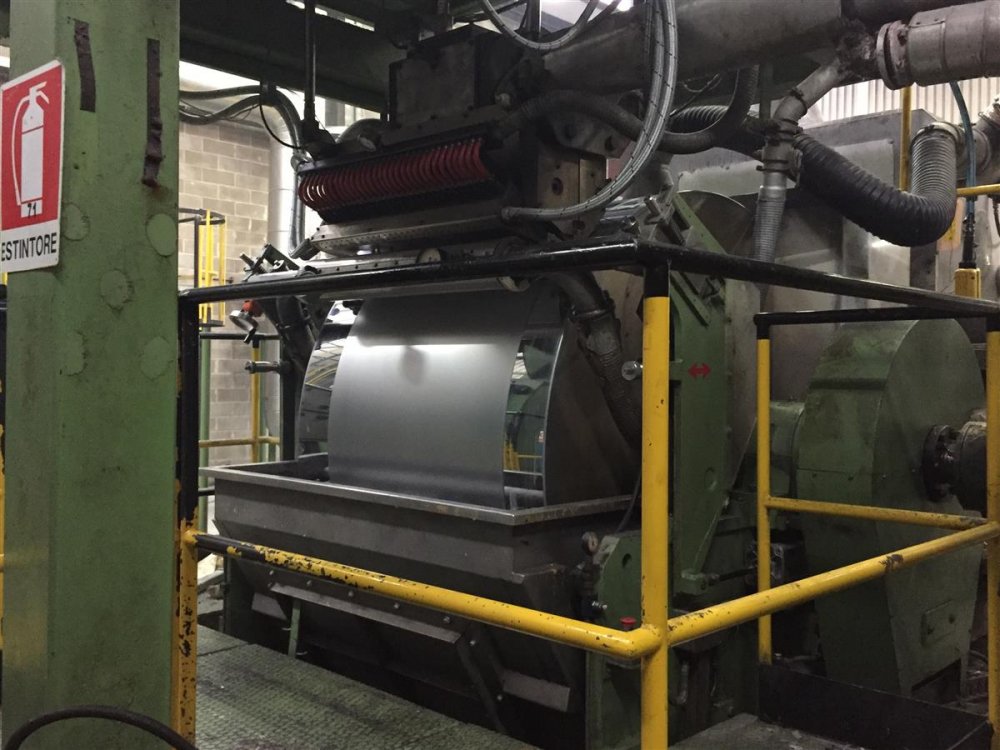

- Unità chill roll
- Chill roll, Air knife, film and chill roll drying system, water bath.

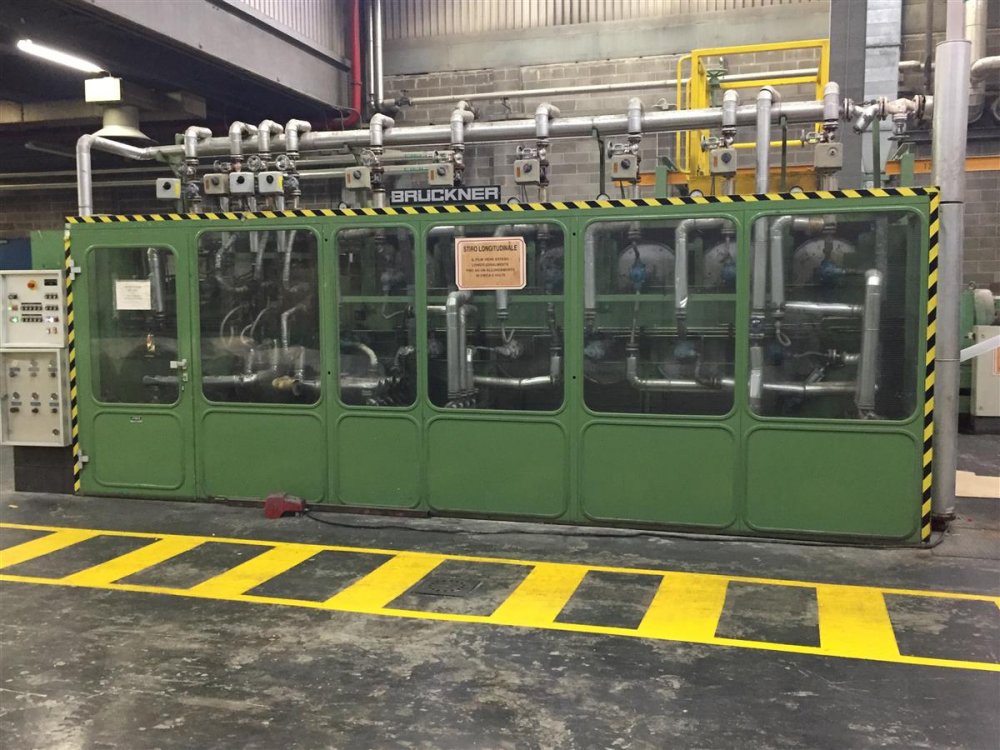

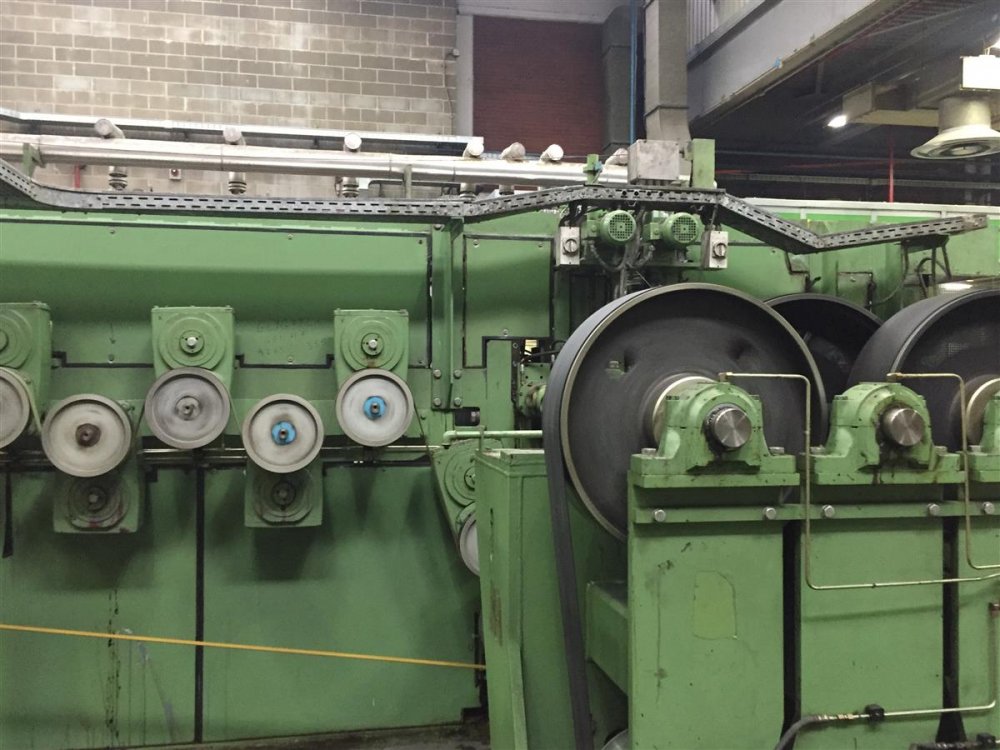

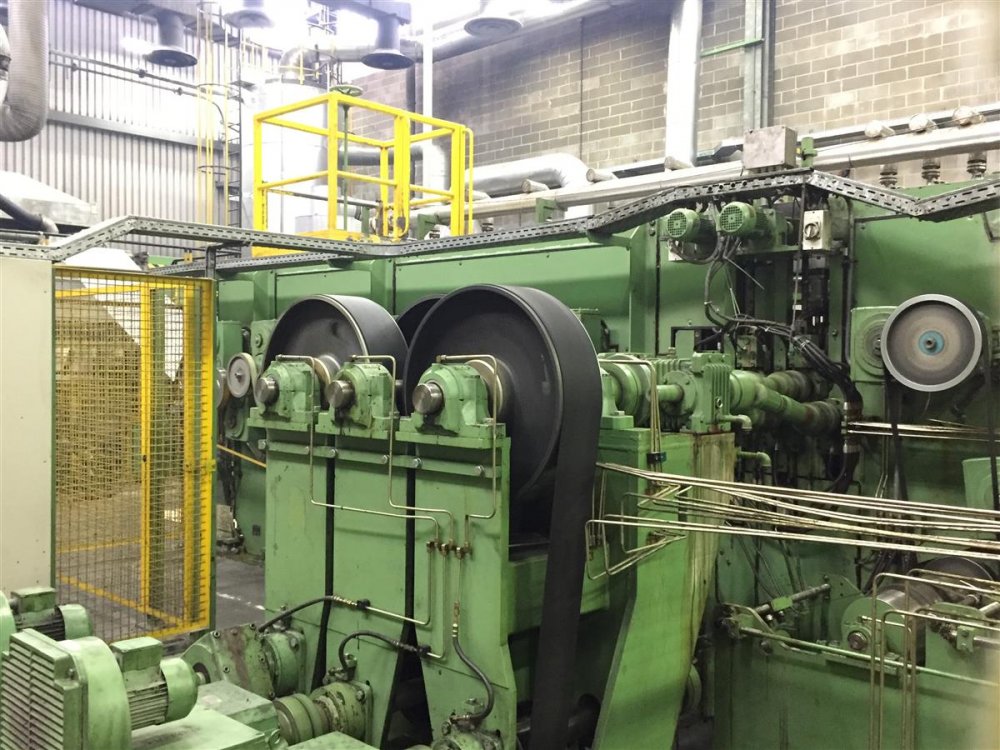

- Descrizione MDO
- 10 pre-heating rolls-oil heating; 6 stretching rolls-circulating oil; 2 annealing rolls-electrical heaters; 5 nip rolls; stretching ratio 1:1 - 1:7; Aux, winder.

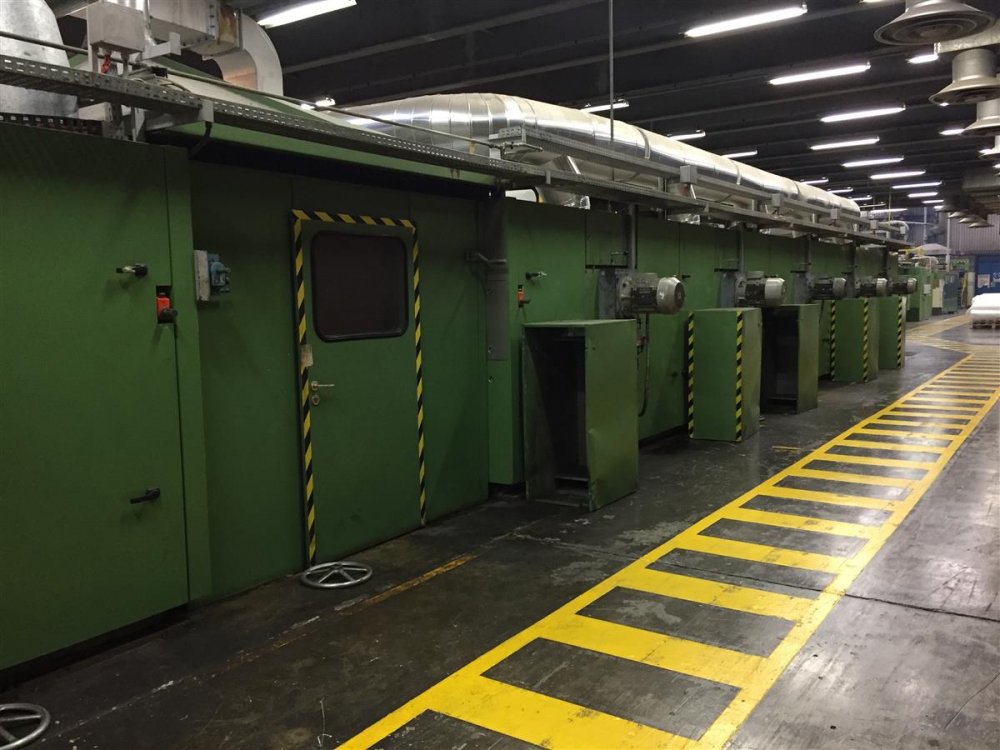

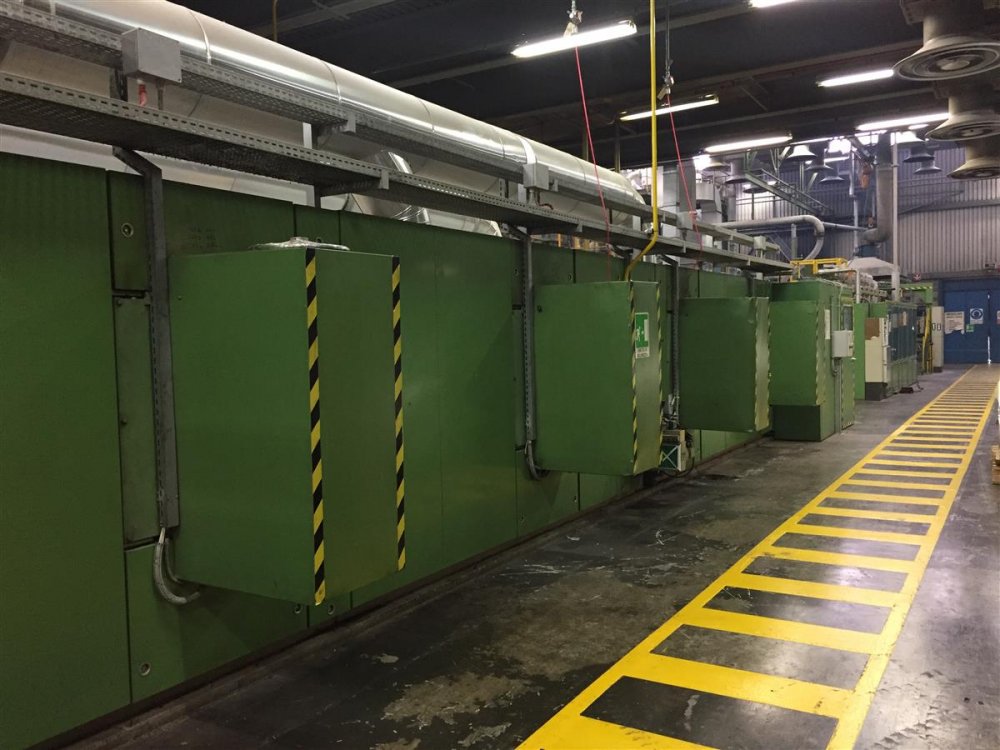

- Descrizione TDO
- Chain and chain track system F.O.K 4.4.2; Heating system: circulating air via individual heating system/zone (oil heating, motors, fans, sensor, etc); edge guide system at inlet.
- Trattamento Corona
- 2 corona treatment stations (up and down - Double tretaed)
- Unità pull roll
- Cromed Rolls chilled by water; Edge trim on-line recycling unit; Thickness Gauge Pm 147.

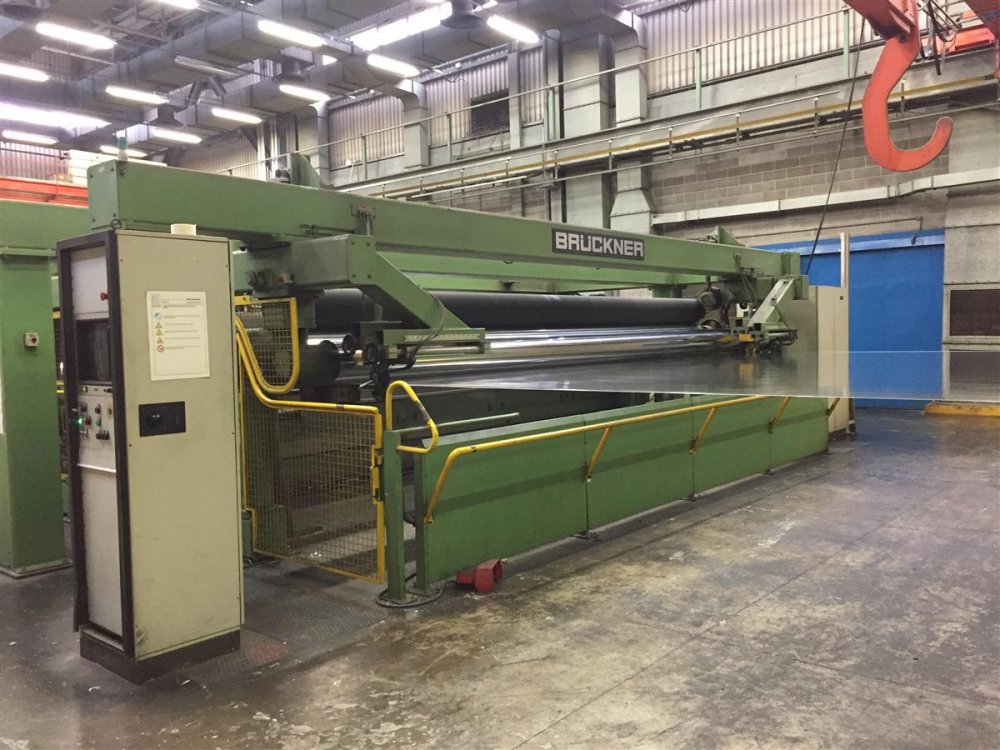

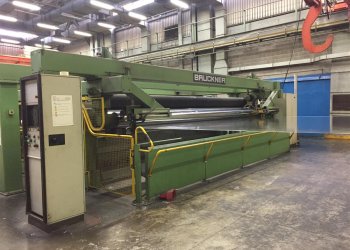

- Larghezza avvolgitore
- 7000
- Ulteriori informazioni

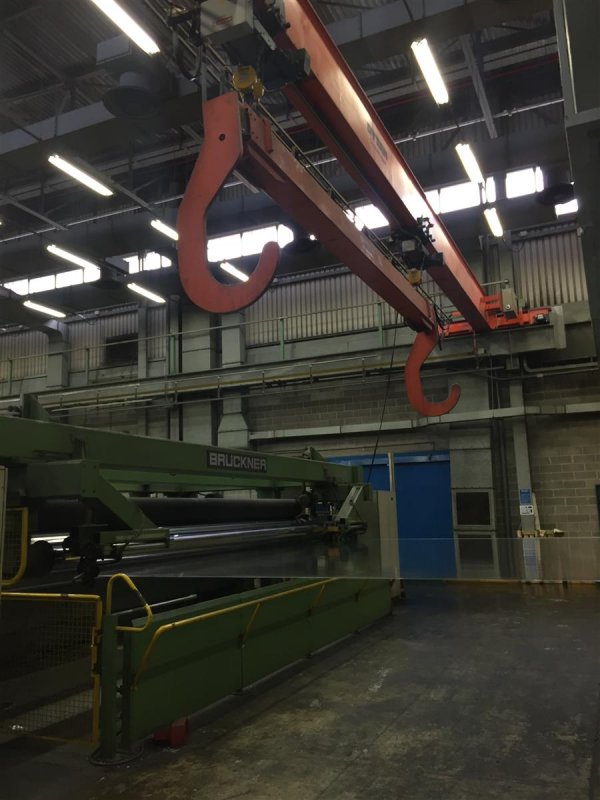

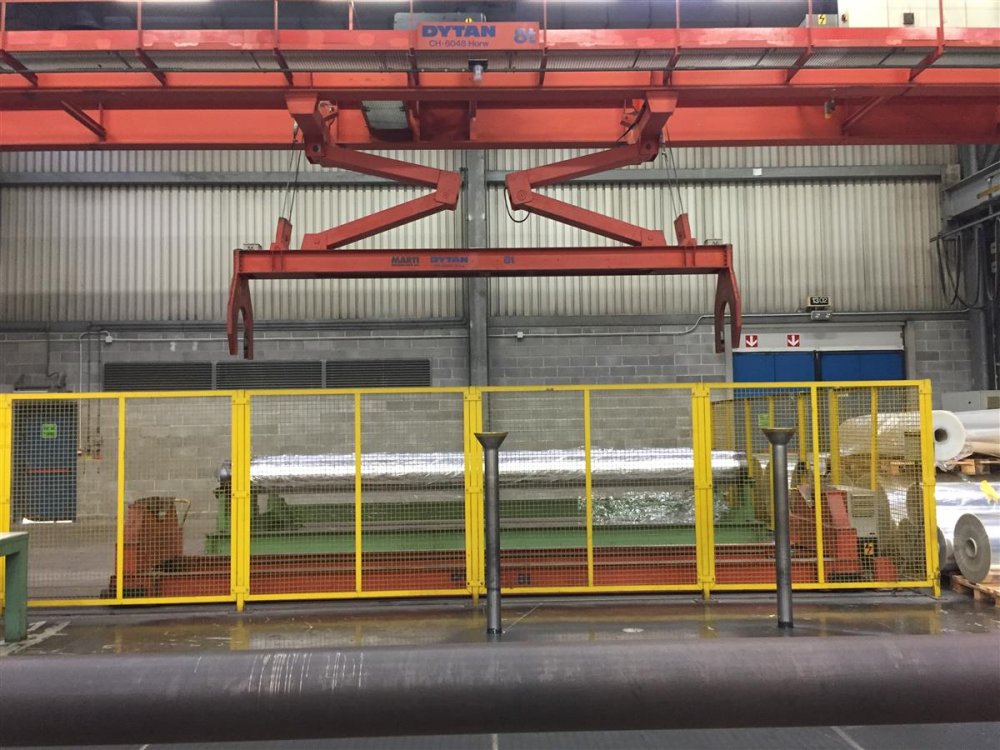

- Max mechanical speed: 250 m/min / upgraded to 300 m/min; AC and PLC:-fully integrated system PLC with 3 operator workstations with trends and reports; Utilities:- Compressor, Boiler, Silos, Mill Rolls, Mill roll Stands (corona and nip), Nip Rolls stands, Over Head Crane (10TM).
Codice Macchina | BO59 |
Manufacturer | BRUCKNER |
Year | 1996 |
Numero di strati | 3 |
Struttura film | Film width 6300 mm on winder |
Materiali | BOPP |
Output | 2060 Kg/h |
Larghezza (mm) | 6300 |
Extruder 1 Description | output 105 kg/hr each; L/D 32:1, 100 rpm. |
Extruder 2 Description | Cascade main extruder, 290 rpm; L/D: 21, 510kw DC. |
Extruder 3 Description | output 105 kg/hr each; L/D 32:1, 100 rpm. |
Die width | 833 |
Unità chill roll | Chill roll, Air knife, film and chill roll drying system, water bath. |
Descrizione MDO | 10 pre-heating rolls-oil heating; 6 stretching rolls-circulating oil; 2 annealing rolls-electrical heaters; 5 nip rolls; stretching ratio 1:1 - 1:7; Aux, winder. |
Descrizione TDO | Chain and chain track system F.O.K 4.4.2; Heating system: circulating air via individual heating system/zone (oil heating, motors, fans, sensor, etc); edge guide system at inlet. |
Trattamento Corona | 2 corona treatment stations (up and down - Double tretaed) |
Unità pull roll | Cromed Rolls chilled by water; Edge trim on-line recycling unit; Thickness Gauge Pm 147. |
Larghezza avvolgitore | 7000 |
Ulteriori informazioni | Max mechanical speed: 250 m/min / upgraded to 300 m/min; AC and PLC:-fully integrated system PLC with 3 operator workstations with trends and reports; Utilities:- Compressor, Boiler, Silos, Mill Rolls, Mill roll Stands (corona and nip), Nip Rolls stands, Over Head Crane (10TM). |
