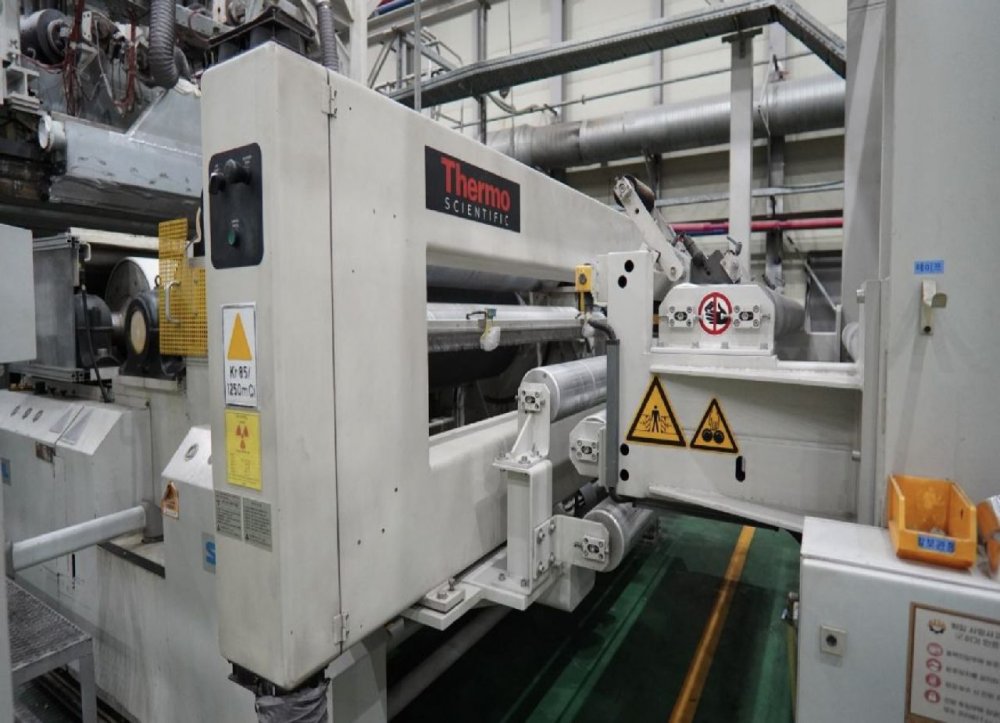

- Codice Macchina
- CA282
- Manufacturer
- SML
- Modello
- with MDO stretching
- Year
- 2005
- Numero di strati
- 3
- Struttura film
- BAB
- Materiali
- Diapers backsheet LDPE
- Larghezza film (mm)
- 1900
- Velocità (m/m)
- 350m/min
- Output (Kg/h)
- 600kg/h
- Rif strati estrusore 1:
- A
- Screw diam 1
- 150/33 L/D

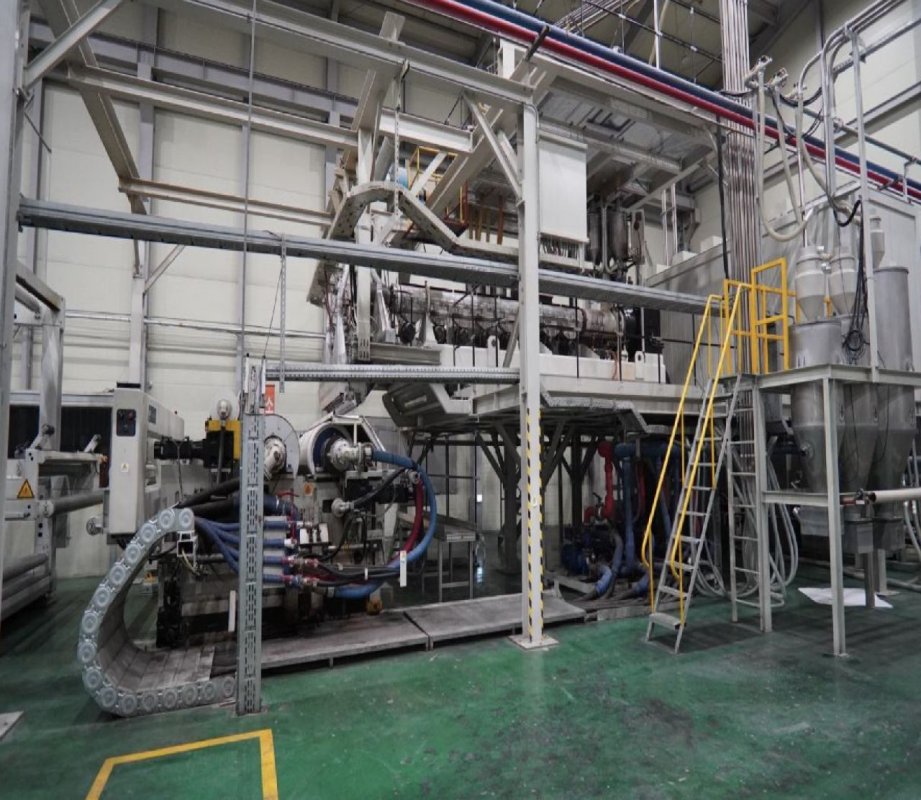

- Description 1

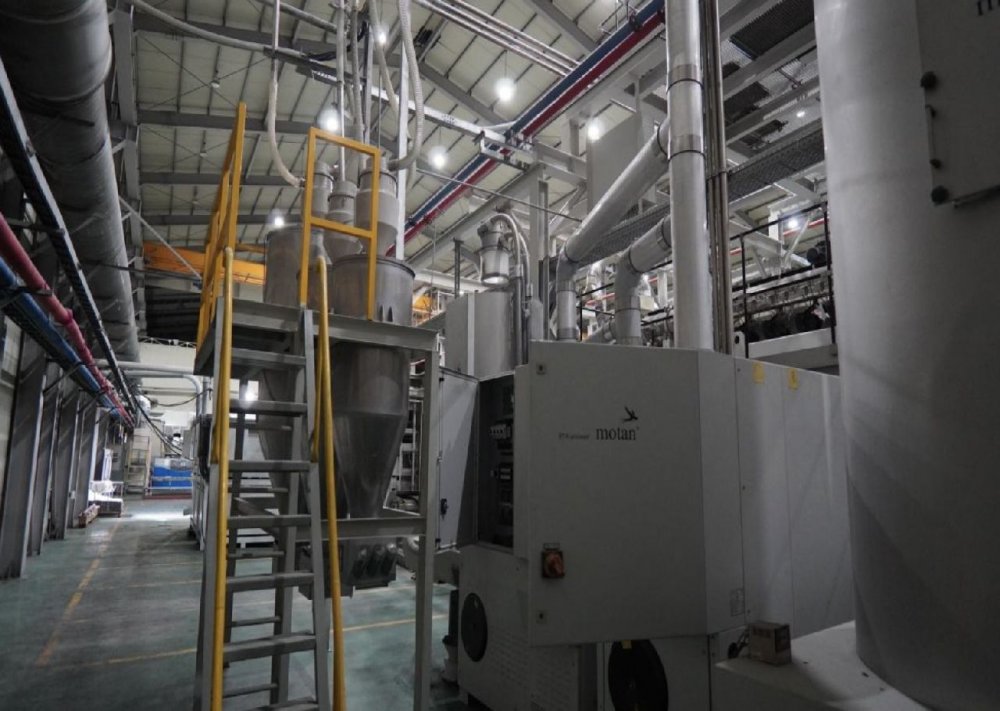

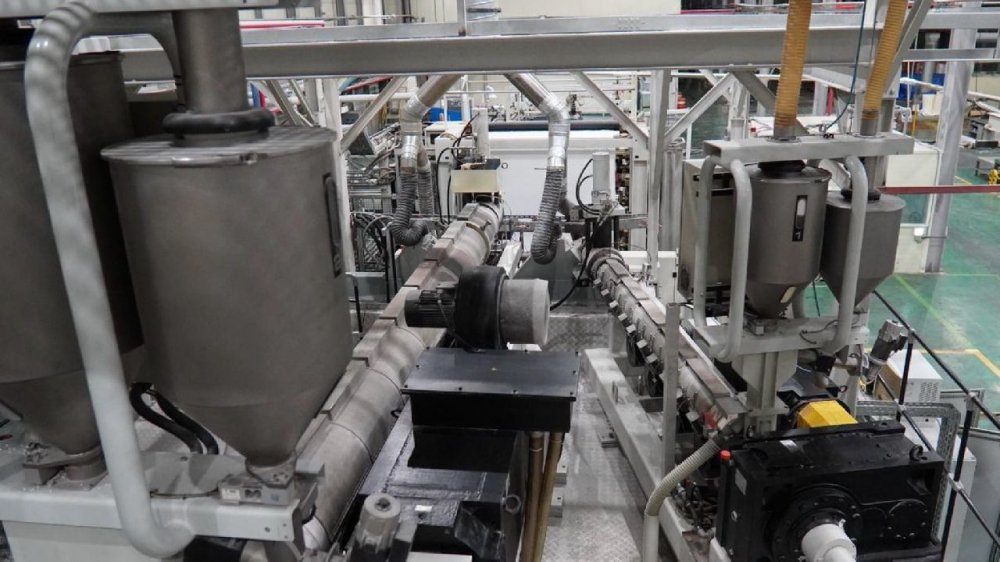

- SML Single-Screw Extruder - SML-EH-150/33 DC main-drive Output : SK AT 880 H (breathable compound) 850 kg/h materials for meltembossed film 750 kg/h 1 Material feeding / main component 5 Material feeding / additional component 1 Gravimetric dosing unit 6 components DOTECO with gravimetric output control system hydraulic screen changer KR-hyd/150
- Rif strati estrusore 2:
- B
- Screw diam 2
- 90/33 L/D
- Description 2
- SML Single-Screw Extruder - SML-EH-90/33 DC main-drive Output: SK AT 880 H (breathable compound) 310 kg/h materials for meltembossed film 290 kg/h 1 Material feeding / main component 5 Material feeding / additional component 1 Gravimetric dosing unit 6 components DOTECO with gravimetric output control system hydraulic screen changer KR-hyd/90
- Descrizione testa

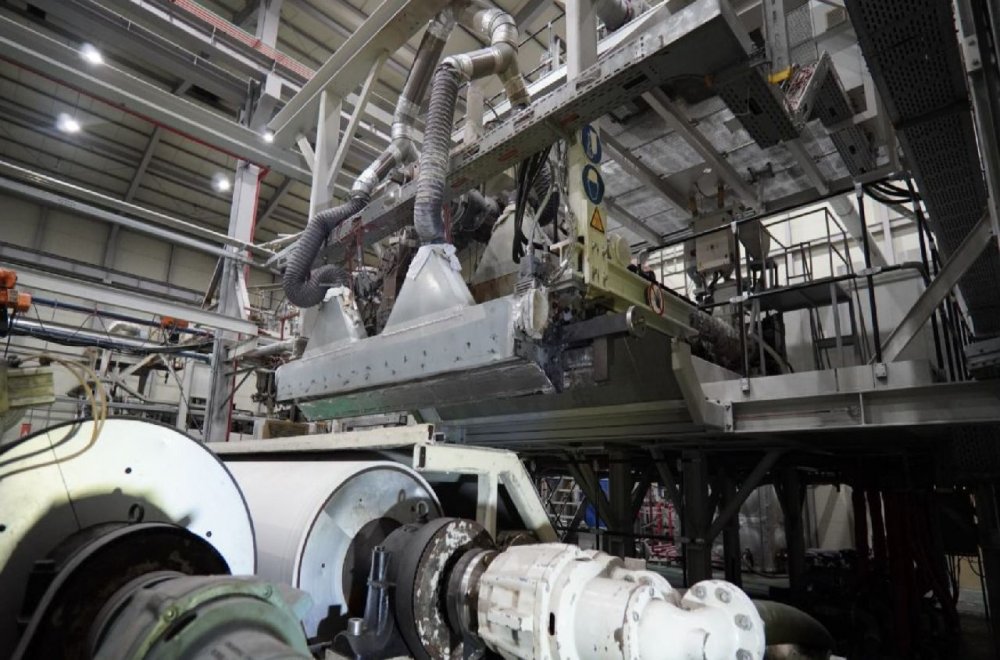

- 3-layer FEEDBLOCK FG/SP CLOEREN, Die splitting system SML, for automatic die control, complete with: CLOEREN Internal, adjustable Deckle System IDS II
- Die width (mm)
- 2700mm
- Unità chill roll

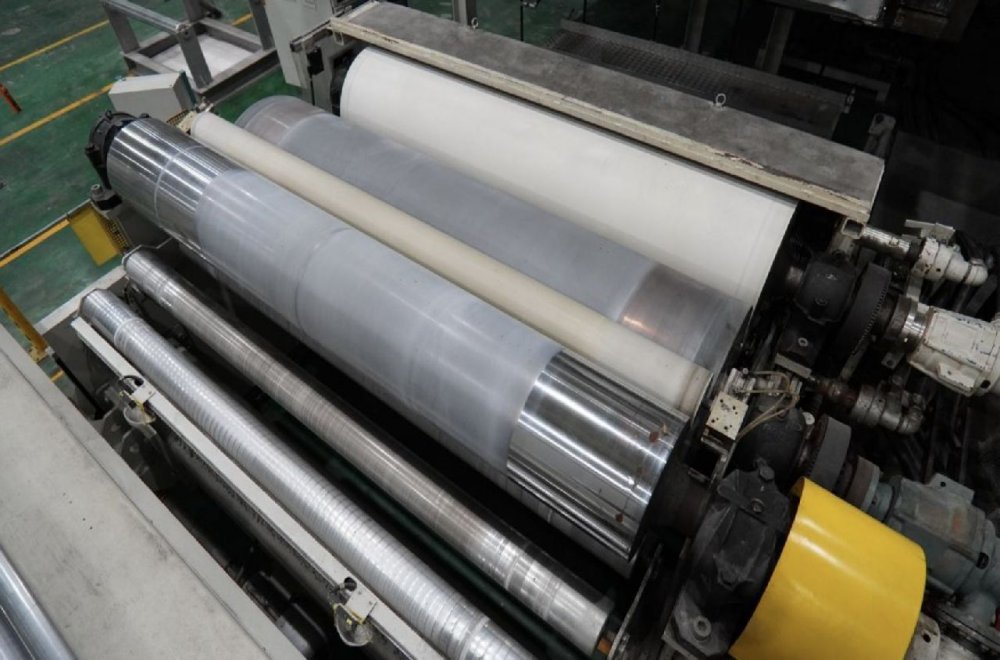

- Chill roll unit SML-CS/350/2700embossing Diameter Chill roll N1 - 800 mm Diameter Chill roll N2 - 400 mm Diameter Rubber pressing roll - 700 mm
- Controllo di spessore
- Thickness measuring unit for automatic dies EGS
- Trattamento Corona
- Corona treatment system ffor one side treatment - AFS
- Rewinder max reel diameter (mm)
- 1000

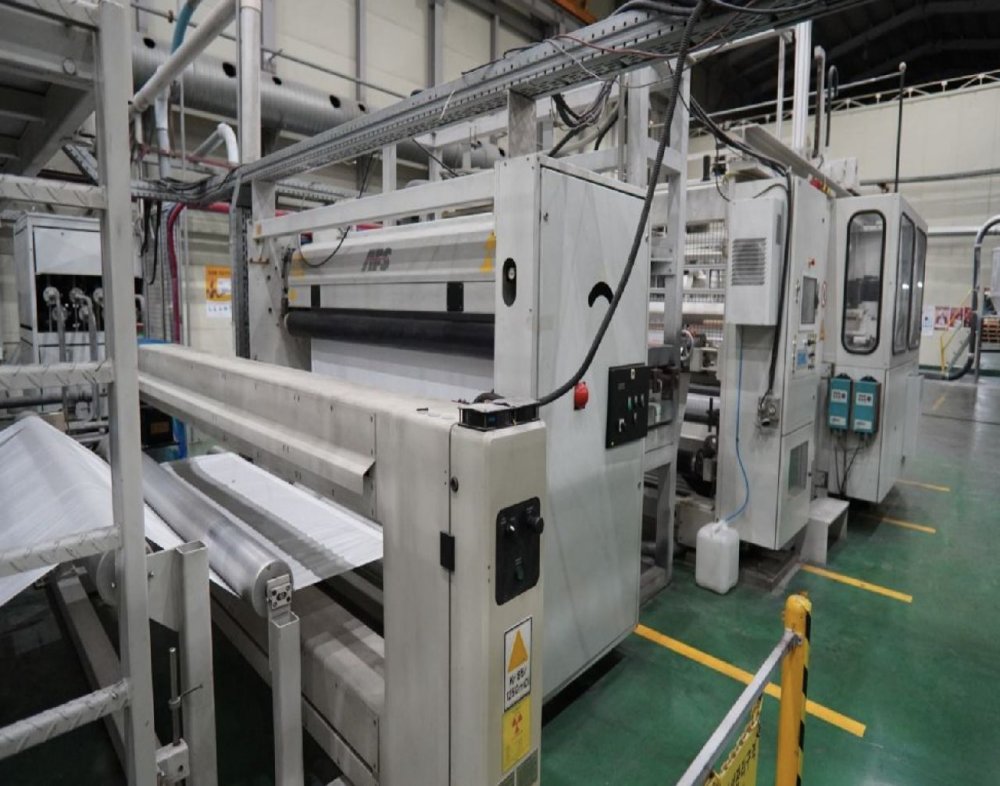

- Descrizione avvolgitore

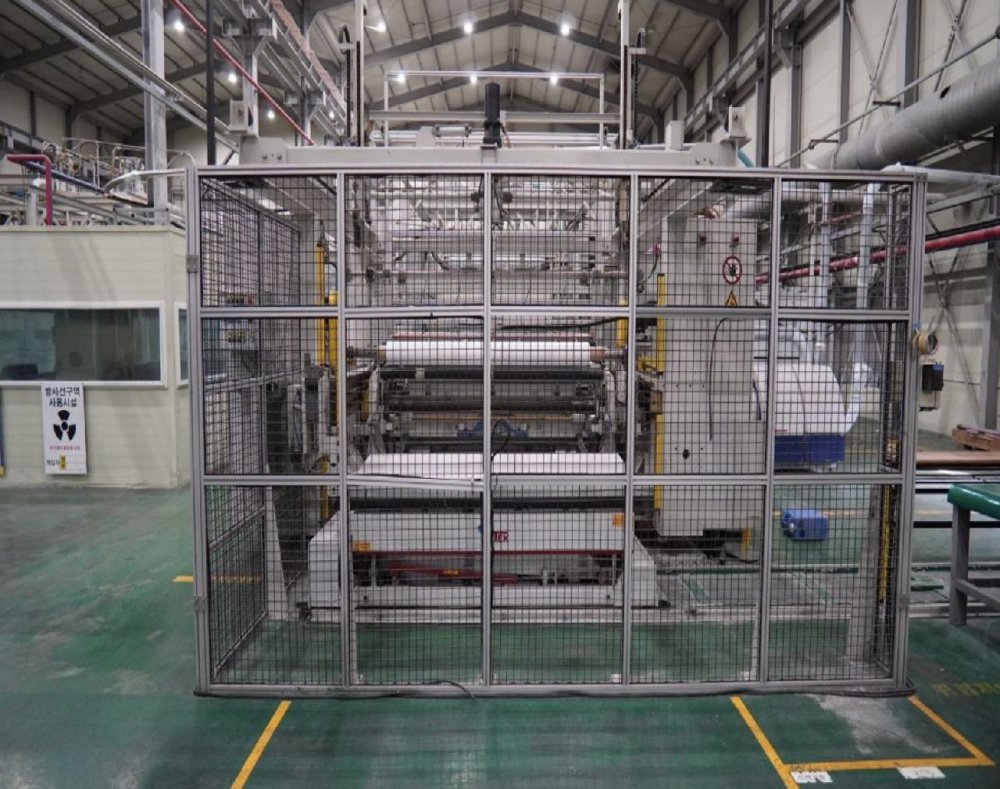

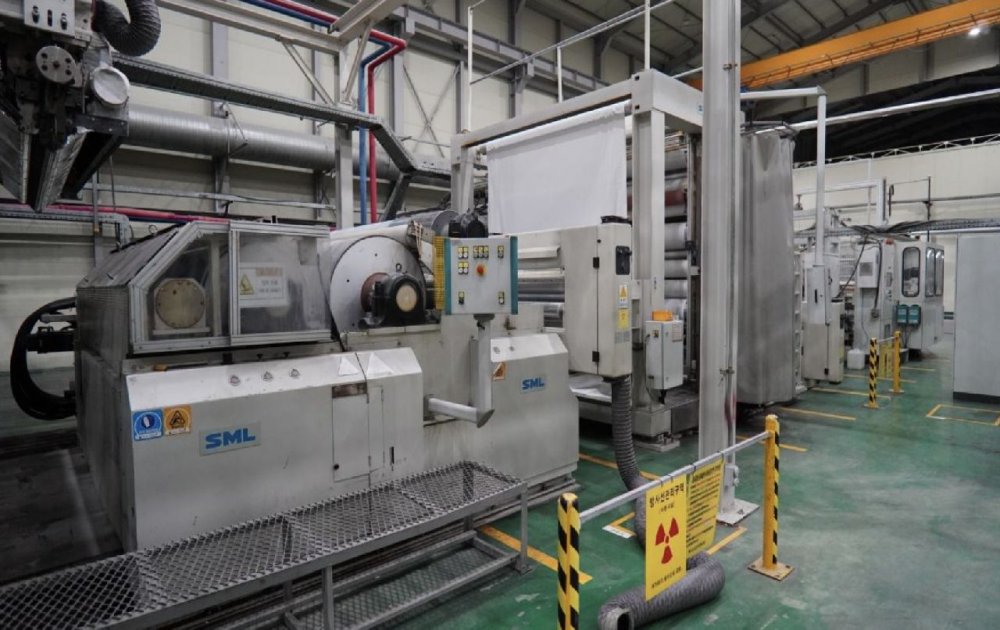

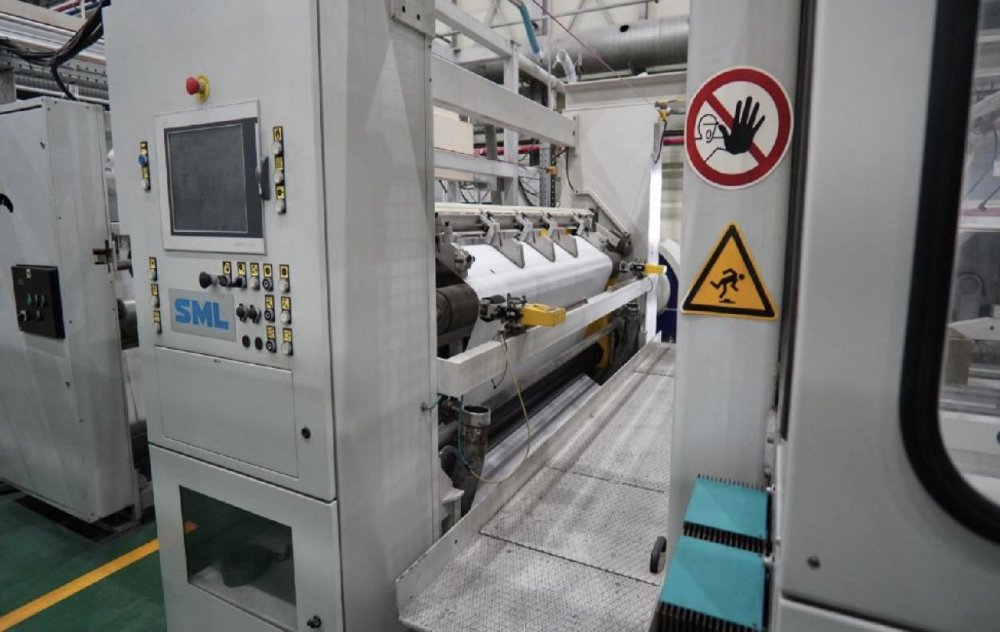

- Cast Film Winder Series 2000 AERO FILM
- Ulteriori informazioni

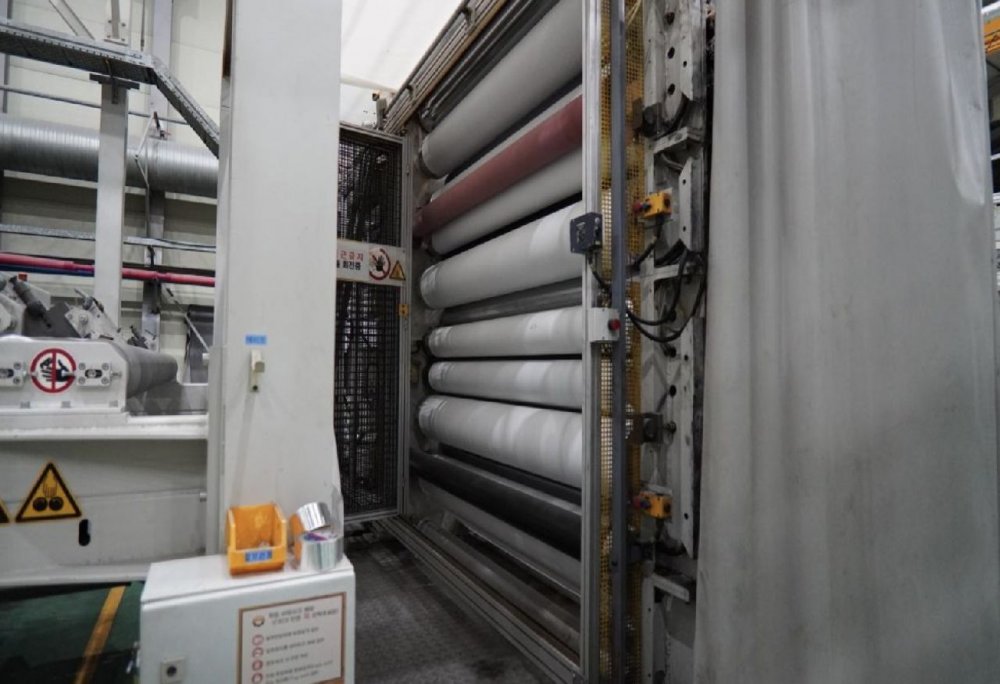

- Film thickness range: for breathable film 18 - 40g/m² for meltembossed film 20 - 40g/m² Primary edge trim - Cutting - SML Edge trim - Injector system - KONGSKILDE Stretching Unit 2600mm -max. mechanical speed - 350m/min,max -stretching ration 1 : 10 Recycling plant 70 TE for inline recycling of edge trims
| Codice Macchina | CA282 |
| Manufacturer | SML |
| Modello | with MDO stretching |
| Year | 2005 |
| Numero di strati | 3 |
| Struttura film | BAB |
| Materiali | Diapers backsheet LDPE |
| Larghezza film (mm) | 1900 |
| Velocità (m/m) | 350m/min |
| Output (Kg/h) | 600kg/h |
| Rif strati estrusore 1: | A |
| Screw diam 1 | 150/33 L/D |
| Description 1 | SML Single-Screw Extruder - SML-EH-150/33 DC main-drive Output : SK AT 880 H (breathable compound) 850 kg/h materials for meltembossed film 750 kg/h 1 Material feeding / main component 5 Material feeding / additional component 1 Gravimetric dosing unit 6 components DOTECO with gravimetric output control system hydraulic screen changer KR-hyd/150 |
| Rif strati estrusore 2: | B |
| Screw diam 2 | 90/33 L/D |
| Description 2 | SML Single-Screw Extruder - SML-EH-90/33 DC main-drive Output: SK AT 880 H (breathable compound) 310 kg/h materials for meltembossed film 290 kg/h 1 Material feeding / main component 5 Material feeding / additional component 1 Gravimetric dosing unit 6 components DOTECO with gravimetric output control system hydraulic screen changer KR-hyd/90 |
| Descrizione testa | 3-layer FEEDBLOCK FG/SP CLOEREN, Die splitting system SML, for automatic die control, complete with: CLOEREN Internal, adjustable Deckle System IDS II |
| Die width (mm) | 2700mm |
| Unità chill roll | Chill roll unit SML-CS/350/2700embossing Diameter Chill roll N1 - 800 mm Diameter Chill roll N2 - 400 mm Diameter Rubber pressing roll - 700 mm |
| Controllo di spessore | Thickness measuring unit for automatic dies EGS |
| Trattamento Corona | Corona treatment system ffor one side treatment - AFS |
| Rewinder max reel diameter (mm) | 1000 |
| Descrizione avvolgitore | Cast Film Winder Series 2000 AERO FILM |
| Ulteriori informazioni | Film thickness range: for breathable film 18 - 40g/m² for meltembossed film 20 - 40g/m² Primary edge trim - Cutting - SML Edge trim - Injector system - KONGSKILDE Stretching Unit 2600mm -max. mechanical speed - 350m/min,max -stretching ration 1 : 10 Recycling plant 70 TE for inline recycling of edge trims |
