- Codice Macchina
- RO203
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- HELIOSTAR
- Year
- 2005
- Numero di colori
- 10
- Possibilità stampa
- 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating
- Rinnovo
- register control 2015 Eltromat registar
- Motorizzazione
- Electronic shaft
- Trolley system
- Yes
- Larghezza nastro (mm)
- 1720
- Larghezza stampa (mm)
- 1700
- Formato stampa (mm)
- 450-900 mm (ECO PLUS)
- Drying specifications
- Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h,
- Drying heat surce
- gas burners

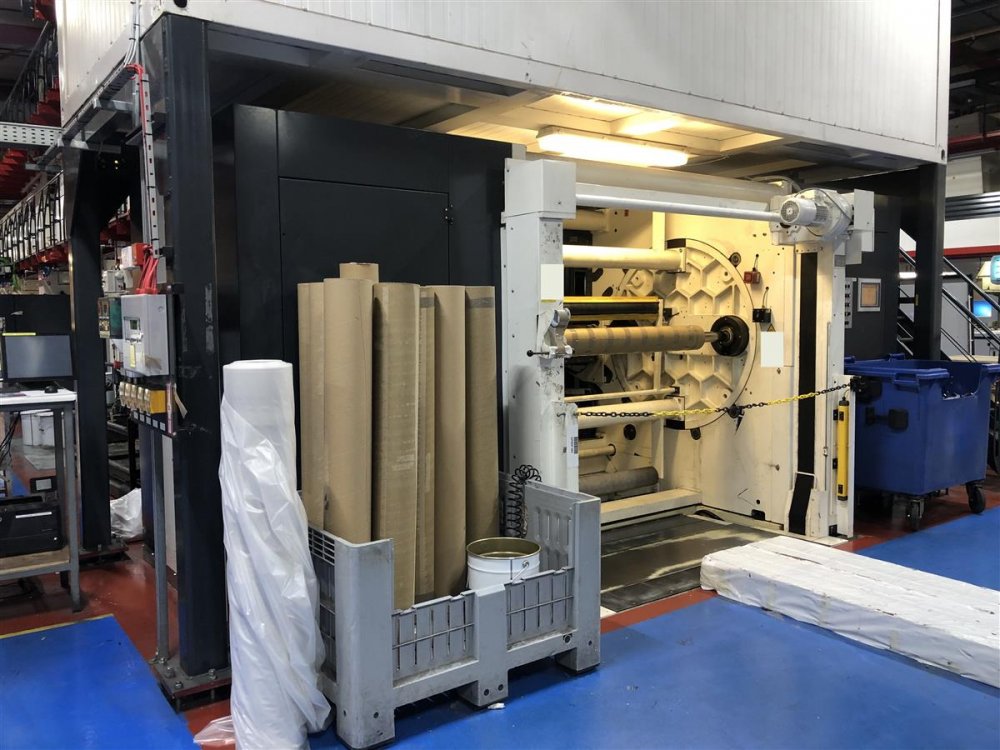

- Unwinder type
- 2 unwinders (primary and secondary) Turret
- Diametro massimo svolgitore (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1300
- Controllo di registro
- BST Eltromat Registar 20 (age 2018)
- Vyscosity control
- Automatic
- Cilindri stampa
- 1923 approximately
- Ulteriori informazioni
- unit 9 needs maintenance
| Codice Macchina | RO203 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | HELIOSTAR |
| Year | 2005 |
| Numero di colori | 10 |
| Possibilità stampa | 10 col printing, 9 col print + cold seal, 9 col rpint + lamination, 8 col print + lamination and coating |
| Rinnovo | register control 2015 Eltromat registar |
| Motorizzazione | Electronic shaft |
| Trolley system | Yes |
| Larghezza nastro (mm) | 1720 |
| Larghezza stampa (mm) | 1700 |
| Formato stampa (mm) | 450-900 mm (ECO PLUS) |
| Drying specifications | Unit 1-7 single hood, 2,3m length, 15 nozels, vol 10.000m3/h. Unti 8 double hood, 4,6m length, 30 nozels, vol 20.000m3/h, Unit 9-10 Jumbo dryer 7,2 m length, 44-48 nozels, vol 30-32.000m3/h, |
| Drying heat surce | gas burners |
| Unwinder type | 2 unwinders (primary and secondary) Turret |
| Diametro massimo svolgitore (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1300 |
| Controllo di registro | BST Eltromat Registar 20 (age 2018) |
| Vyscosity control | Automatic |
| Cilindri stampa | 1923 approximately |
| Ulteriori informazioni | unit 9 needs maintenance |
