- Codice Macchina
- FL624
- Manufacturer
- OFEM
- Modello
- ARENA GL 808-120
- Year
- 2002
- Numero di colori
- 9
- Print possibilityes
- 8 + 1 downstream for coating UV and water based varnishes on the same side of the web and in register with the spots printed on the CI section.
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1250
- Larghezza stampa (mm)
- 1200
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 800
- Unwinder type
- Single axis
- Diametro massimo svolgitore (mm)
- 1300
- Rewinder type
- Single axis
- Max reel diameter rewinder (mm)
- 1300
- Essiccazione
- Hot air drying system. Thermic oil Heating source.
- Videocamera

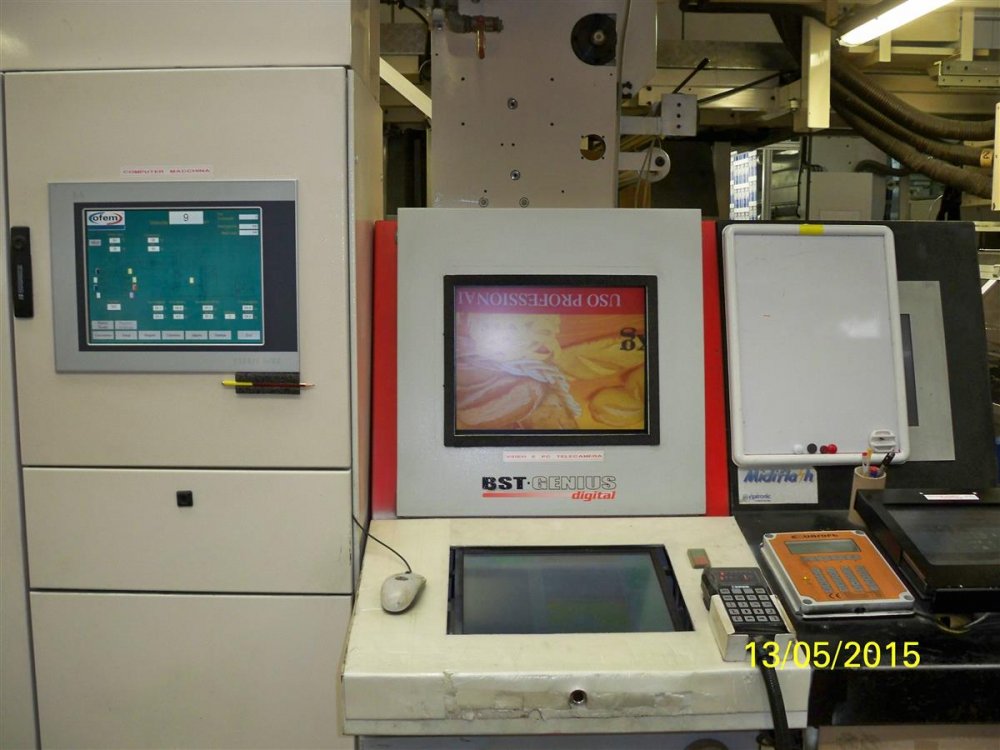

- video inspection system BST-Genius.Quick registering system at machine start up.
- Guida film
- 1 before printing and 1 before rewinding
- Sistema d'inchiostro
- Enclosed doctor blade chambers with ceramic anilox rollers .8 ink pumps.
- Anilox
- Anilox sleeves ceramic coated and laser engraved as following: 1 anilox engraved to HPF-W3-140 lines/cm., volume 11 g/m2; 2 anilox HPF1-120 lines/cm., vol.10,0 g/m2; 1 anilox HPF4-220 lines/cm., vol. 5,5 g/m2; 1 X 70 lines/cm., vol. 20,0 g/m2; 3 X 80 lines/cm., vol.16,0 g/m2 ; 1x 100 lines/cm., vol.16,5 g/m2; 2 X 100 lines/cm., vol.16,0 g/m2; 1 X 110 lines/cm., volume 13,0 g/m2; 2 X 120 lines/cm., vol.13,0 g/m2; 1 X 140 lines/cm., vol.11,0 g/m2; 1X 160 lines/cm., vol.9,0 g/m2; 5 X 180 lines/cm., vol.7,8 g/m2; 5 X 255 lines/cm., vol.5,0 g/m2 ; 2 X 300 lines/cm., vol. 4,2 g/m2.
- Ulteriori informazioni
- Paper Registers motorized remote controlled Decks’ positioning system automatic with 4 motors per deck and job repeatability program Plate roller mandrels: 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 1 plate roller air mandrels diameter 89,243 mm. for the print section.9 print sleeves to choose among those on stock (only 9 as the rest will be kept by seller). 1 downstream printing unit (this unit is a geared type) for coating water based and UV varnish in register with the Central impression section (UV lamps offered apart).
| Codice Macchina | FL624 |
| Manufacturer | OFEM |
| Modello | ARENA GL 808-120 |
| Year | 2002 |
| Numero di colori | 9 |
| Print possibilityes | 8 + 1 downstream for coating UV and water based varnishes on the same side of the web and in register with the spots printed on the CI section. |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1250 |
| Larghezza stampa (mm) | 1200 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 800 |
| Unwinder type | Single axis |
| Diametro massimo svolgitore (mm) | 1300 |
| Rewinder type | Single axis |
| Max reel diameter rewinder (mm) | 1300 |
| Essiccazione | Hot air drying system. Thermic oil Heating source. |
| Videocamera | video inspection system BST-Genius.Quick registering system at machine start up. |
| Guida film | 1 before printing and 1 before rewinding |
| Sistema d'inchiostro | Enclosed doctor blade chambers with ceramic anilox rollers .8 ink pumps. |
| Anilox | Anilox sleeves ceramic coated and laser engraved as following: 1 anilox engraved to HPF-W3-140 lines/cm., volume 11 g/m2; 2 anilox HPF1-120 lines/cm., vol.10,0 g/m2; 1 anilox HPF4-220 lines/cm., vol. 5,5 g/m2; 1 X 70 lines/cm., vol. 20,0 g/m2; 3 X 80 lines/cm., vol.16,0 g/m2 ; 1x 100 lines/cm., vol.16,5 g/m2; 2 X 100 lines/cm., vol.16,0 g/m2; 1 X 110 lines/cm., volume 13,0 g/m2; 2 X 120 lines/cm., vol.13,0 g/m2; 1 X 140 lines/cm., vol.11,0 g/m2; 1X 160 lines/cm., vol.9,0 g/m2; 5 X 180 lines/cm., vol.7,8 g/m2; 5 X 255 lines/cm., vol.5,0 g/m2 ; 2 X 300 lines/cm., vol. 4,2 g/m2. |
| Ulteriori informazioni | Paper Registers motorized remote controlled Decks’ positioning system automatic with 4 motors per deck and job repeatability program Plate roller mandrels: 8 carbon fibre plate roller air mandrels diameter 108,342 mm. for the print section; 1 plate roller air mandrels diameter 89,243 mm. for the print section.9 print sleeves to choose among those on stock (only 9 as the rest will be kept by seller). 1 downstream printing unit (this unit is a geared type) for coating water based and UV varnish in register with the Central impression section (UV lamps offered apart). |
