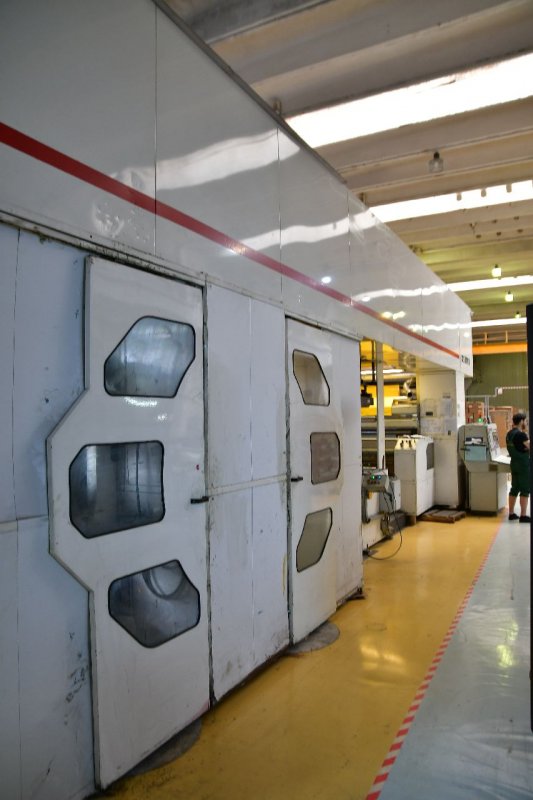

COMIFLEX Macchina da stampa flexo 6 colori // Flexo CI // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Photo Gallery

Codice Macchina: FL1094
Manufacturer: COMIFLEX
Year: 2008
Numero di colori: 6
Print possibilityes: 6 CI + 1 stack + UV
Gearless: No
Cambio a maniche rapido: Yes
Computer supervision: Yes
Larghezza nastro (mm): 1580
Larghezza stampa (mm): 1500
Min print repeat (mm): 400
Max print repeat (mm): 1200

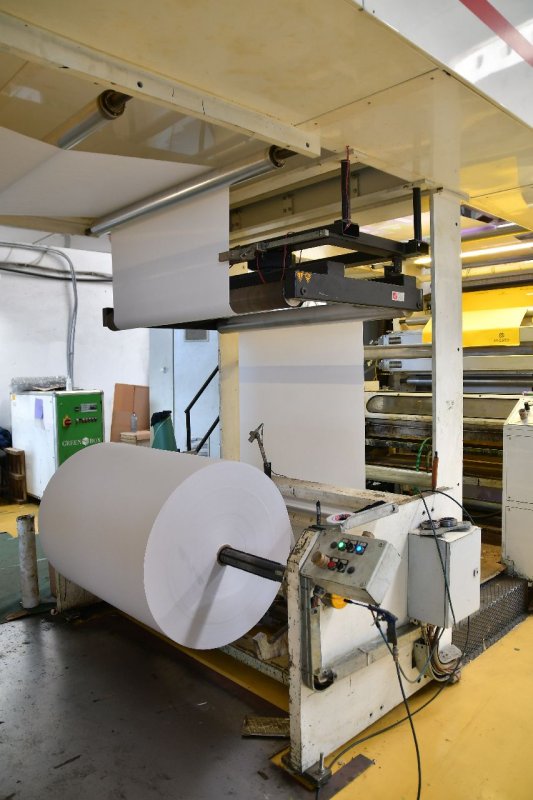

Unwinder type: Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Diametro massimo svolgitore (mm): 1200
Rewinder type: Single, pneumatic shafts of 3; 4 and 6 inch, with lift and 1500 kg capacity
Max reel diameter rewinder (mm): 1200
Essiccazione: 2 zones 4 fans, 2 gas burners
Videocamera: Yes, L & C Graph
Trattamento Corona: No
Guida film: Electronic with ultrasound
Vyscosity control: No
Washing system: Automatic station
Sistema d'inchiostro: Automatic station with pneumatic pumps
Anilox: total 12 ceramic anilox sleeves as follows 3x 80 l/cm-vol.13 ; 1x 120 l/vm vol.68 ; 2 +2 X 220 l/cm-v. 6,5 ; 1+1 x 140 l/cm-vol.7,8; 1x 140 l/cm-vol.7 ; 1x 50 l/cm-vol.20
Maniche stampa: Total 105 sleeves, 11x440, 6x470, 7x500, 6x520, 11x550, 7x560, 12x600, 12x640, 7x660, 6x680, 7x750, 6x770, 6x800

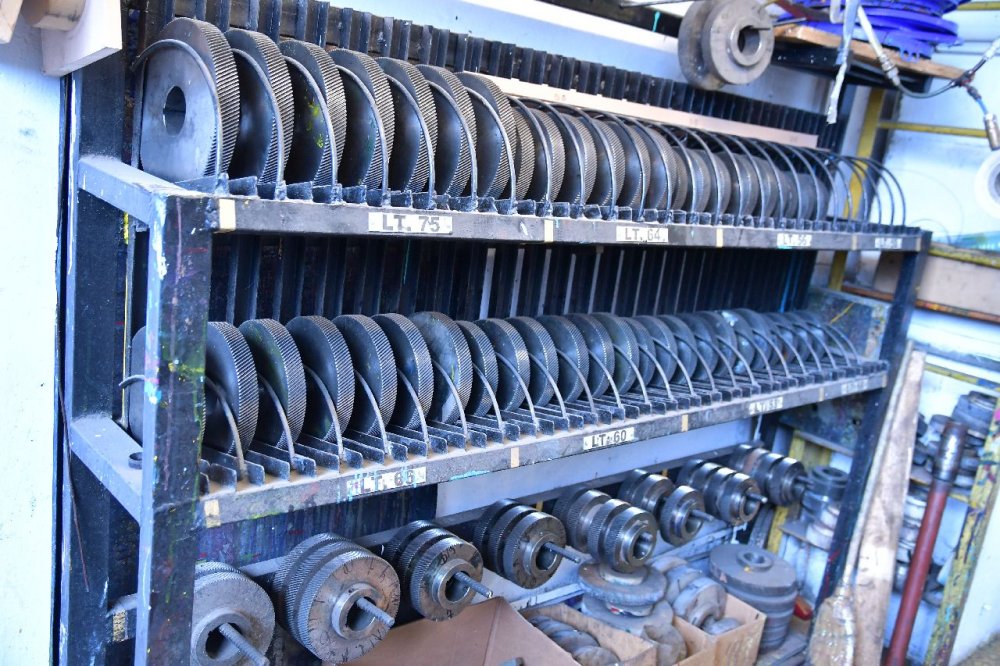

Ulteriori informazioni: Material : paper / carton 30 - 120 gsm. PRINTING SPEED: up to 250 mpm PRINT CYLINDER GEARING: 1,5915 ( 5 mm )
