- Codice Macchina
- FL909
- Manufacturer
- BIELLONI
- Modello

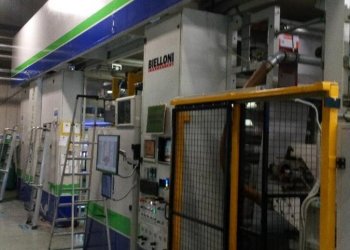

- MAGIFLEX 850
- Year
- 2006
- Numero di colori
- 8
- Gearless
- No
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 960
- Larghezza stampa (mm)
- 850
- Min print repeat (mm)
- 340
- Max print repeat (mm)
- 800
- Diametro massimo svolgitore (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Essiccazione
- STEAM/AIR
- Videocamera
- BST
- Anilox
- 19
- Maniche stampa
- Totaly 20 sets 350mm; 370mm; 390mm; 390mm; 400mm; 410mm; 420mm; 440mm; 470mm; 475mm; 480mm; 490mm; 500mm; 510mm; 515mm; 520mm; 540mm; 550mm; 600mm;
- Ulteriori informazioni
- anilox cylinder diameter (mandrela) 149,400 mm print cylinder diameter (mandrela) 98,792 mm standard inking with chambered doctor blade 8 number ink pneumatic pumps 8 inks type solvent , water cliché thicknes photopolymer 1,14 or 2,54mm + adhesive tape horizontal register motorised on all colours horizontal register range +/- 10 mm longitudinal register motorised on all colours longitudinal register range+/- 10 mm drying system steam / air reels diameter unwinder 1000 mm reels diameter winder 1000 mm cores diameter 6" , 3" video camera to control the printing BST automatic edge-guide before CD FIFA automatic edge-guide before winding FIFA Compressed air *feeding pressure 6 bar *consumed quantity 130 Nm3/h Cooling water *feeding pressure 2 bar *max.consumed quantity 3300 l/h Inlet air quantity 10 000 Nm3/h Exhausted air quantity 12 000 Nm3/h
Codice Macchina | FL909 |
Manufacturer | BIELLONI |
Modello | MAGIFLEX 850 |
Year | 2006 |
Numero di colori | 8 |
Gearless | No |
Computer supervision | Yes |
Larghezza nastro (mm) | 960 |
Larghezza stampa (mm) | 850 |
Min print repeat (mm) | 340 |
Max print repeat (mm) | 800 |
Diametro massimo svolgitore (mm) | 1000 |
Max reel diameter rewinder (mm) | 1000 |
Essiccazione | STEAM/AIR |
Videocamera | BST |
Anilox | 19 |
Maniche stampa | Totaly 20 sets 350mm; 370mm; 390mm; 390mm; 400mm; 410mm; 420mm; 440mm; 470mm; 475mm; 480mm; 490mm; 500mm; 510mm; 515mm; 520mm; 540mm; 550mm; 600mm; |
Ulteriori informazioni | anilox cylinder diameter (mandrela) 149,400 mm print cylinder diameter (mandrela) 98,792 mm standard inking with chambered doctor blade 8 number ink pneumatic pumps 8 inks type solvent , water cliché thicknes photopolymer 1,14 or 2,54mm + adhesive tape horizontal register motorised on all colours horizontal register range +/- 10 mm longitudinal register motorised on all colours longitudinal register range+/- 10 mm drying system steam / air reels diameter unwinder 1000 mm reels diameter winder 1000 mm cores diameter 6" , 3" video camera to control the printing BST automatic edge-guide before CD FIFA automatic edge-guide before winding FIFA Compressed air *feeding pressure 6 bar *consumed quantity 130 Nm3/h Cooling water *feeding pressure 2 bar *max.consumed quantity 3300 l/h Inlet air quantity 10 000 Nm3/h Exhausted air quantity 12 000 Nm3/h |
