- Codice Macchina
- FL689
- Manufacturer
- COMEXI
- Modello
- FB 2108 CNC-GL
- Year
- 2004
- Numero di colori
- 8
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes

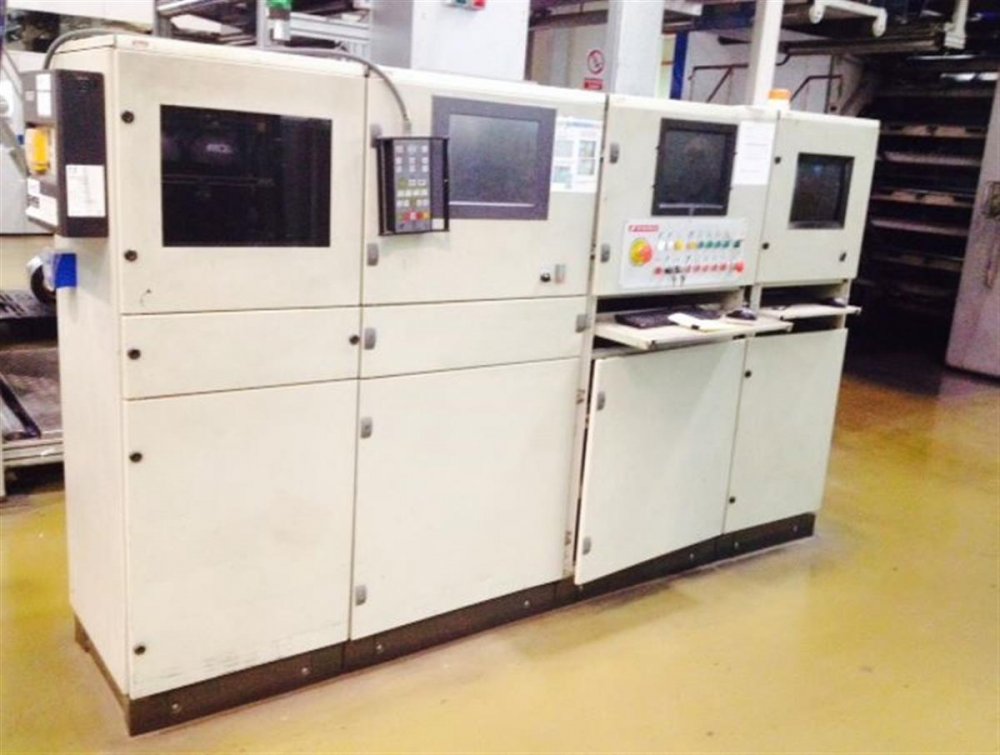

- Computer supervision
- Yes
- Larghezza nastro (mm)
- 1270
- Larghezza stampa (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- Automatic Turret auto splice double direction
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Automatic Turret auto splice double direction
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- Two zones four fans - -Diathermic oil heat exchanger
- Videocamera
- BST Genius
- Trattamento Corona
- Softal
- Guida film
- n° 2 BST
- Vyscosity control
- n° 8 vyscosimeters Inelme
- Washing system
- Self cleaning: Enviroxi
- Sistema d'inchiostro
- Closed cha,ber doctor blades
- Anilox
- 13 ceramic anilox sleeves as follows :360 l/ cm -vol. 3,8 ; 340 l/ cm , vol.4,7 ; 320 - 4,5 ; 320 -4,5 ; 300- 4,5 ; 300 - 5,4 ; 280 - 4,9 ; 260 - 5,2 ;
- Maniche stampa
- 30 sets of 8 sleeves each of following repeats 350 mm , 360 , 370 , 380 , 390 , 400 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 530 , 540 , 560 , 570 , 580 , 600 , 610 , 620 , 640 , 650 , 660 , 680 , 730
| Codice Macchina | FL689 |
| Manufacturer | COMEXI |
| Modello | FB 2108 CNC-GL |
| Year | 2004 |
| Numero di colori | 8 |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 1270 |
| Larghezza stampa (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | Automatic Turret auto splice double direction |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Automatic Turret auto splice double direction |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | Two zones four fans - -Diathermic oil heat exchanger |
| Videocamera | BST Genius |
| Trattamento Corona | Softal |
| Guida film | n° 2 BST |
| Vyscosity control | n° 8 vyscosimeters Inelme |
| Washing system | Self cleaning: Enviroxi |
| Sistema d'inchiostro | Closed cha,ber doctor blades |
| Anilox | 13 ceramic anilox sleeves as follows :360 l/ cm -vol. 3,8 ; 340 l/ cm , vol.4,7 ; 320 - 4,5 ; 320 -4,5 ; 300- 4,5 ; 300 - 5,4 ; 280 - 4,9 ; 260 - 5,2 ; |
| Maniche stampa | 30 sets of 8 sleeves each of following repeats 350 mm , 360 , 370 , 380 , 390 , 400 , 420 , 430 , 440 , 450 , 460 , 470 , 480 , 490 , 500 , 510 , 520 , 530 , 540 , 560 , 570 , 580 , 600 , 610 , 620 , 640 , 650 , 660 , 680 , 730 |
