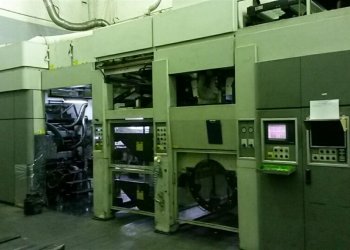

- Codice Macchina
- FL653
- Manufacturer
- SOMAFLEX
- Modello
- MINI -E
- Year
- 2003
- Numero di colori
- 8
- Gearless
- No
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 850
- Larghezza stampa (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 600
- Unwinder type
- Two position non stop
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- 2 zones electric driers
- Videocamera
- YES
- Trattamento Corona
- Yes
- Guida film
- Yes
- Sistema d'inchiostro
- 10 doctor blade chamber system . 8 pneumatic pumps. 8 ink tanks.
- Anilox
- 16 as follows: 1 x 100 L/cm ; 1x120 ;2x140 ;1x180;1x200;3x255;6x315;1x320L/cm
- Maniche stampa
- Plate sleeves 88 as follows: 8x290mm;310;320;360;380;;420;440;500;540;560;600mm
- Ulteriori informazioni
- Max mechcanical speed 250m/min Plate mounting machine Soma- Microflex S
| Codice Macchina | FL653 |
| Manufacturer | SOMAFLEX |
| Modello | MINI -E |
| Year | 2003 |
| Numero di colori | 8 |
| Gearless | No |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 850 |
| Larghezza stampa (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 600 |
| Unwinder type | Two position non stop |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | 2 zones electric driers |
| Videocamera | YES |
| Trattamento Corona | Yes |
| Guida film | Yes |
| Sistema d'inchiostro | 10 doctor blade chamber system . 8 pneumatic pumps. 8 ink tanks. |
| Anilox | 16 as follows: 1 x 100 L/cm ; 1x120 ;2x140 ;1x180;1x200;3x255;6x315;1x320L/cm |
| Maniche stampa | Plate sleeves 88 as follows: 8x290mm;310;320;360;380;;420;440;500;540;560;600mm |
| Ulteriori informazioni | Max mechcanical speed 250m/min Plate mounting machine Soma- Microflex S |
