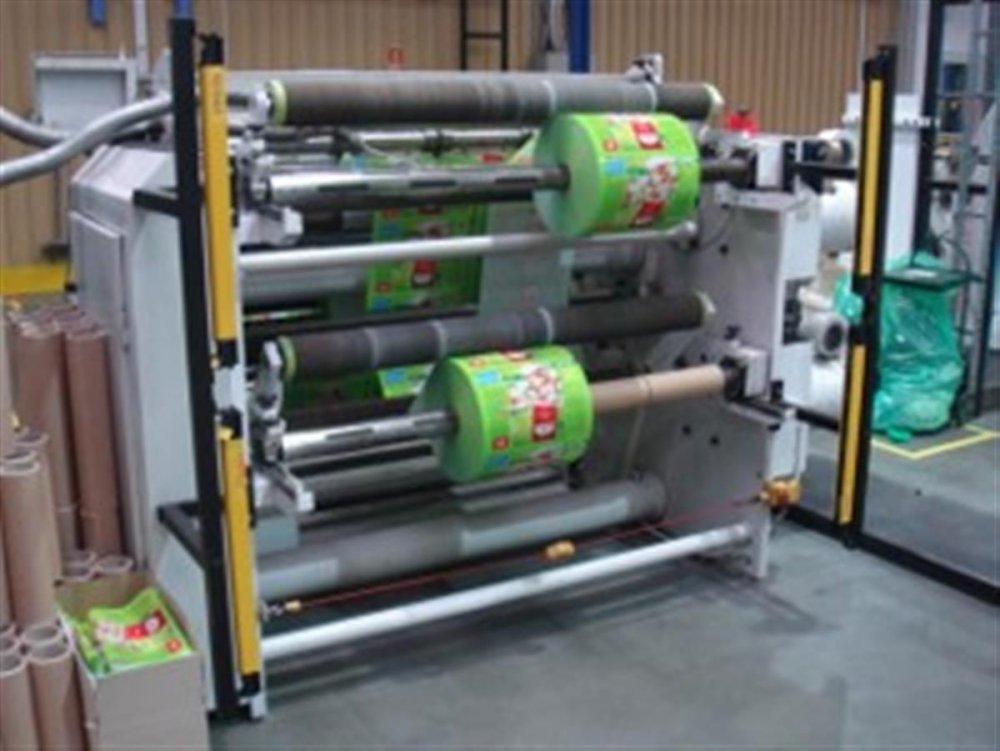

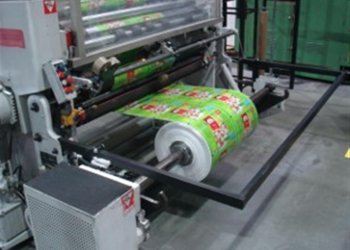

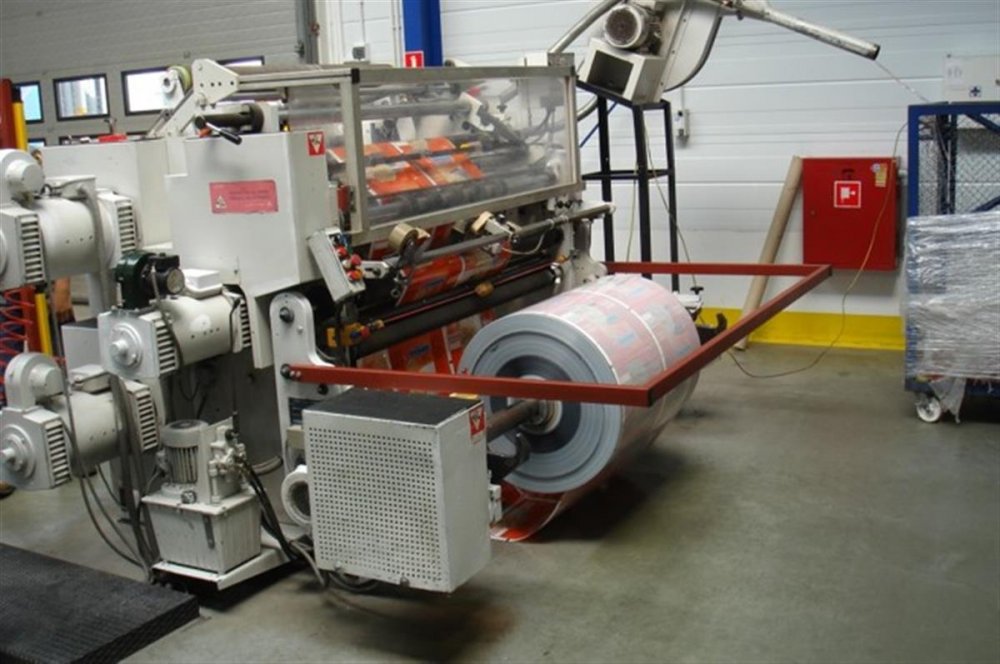

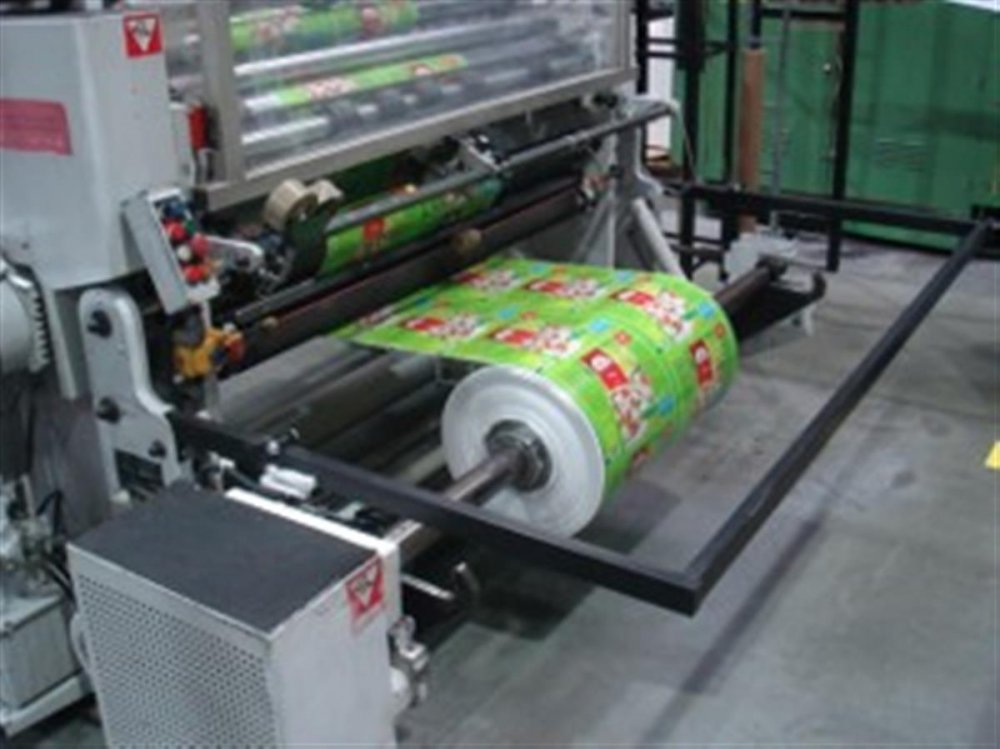

- Code Machine
- SR406
- Fabricant
- DCM
- Modello
- PANTHERE
- Année
- 1992
- Working width (mm)
- 1400
- Unwinder type
- Single shaft
- Max diameter reel unwinder
- 1000
- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 500
- Note
- Maximum weight of the mother roll :1000 kg Web tension at unwind Unwind in both direction No Pneumatic chucks for cardboard or plastic cores diameter 76 and 152 mm Core diameter at rewind 76 mm Maximum weight on the rewinding shaft = 300kg for all cores diam 300 kg
| Code Machine | SR406 |
| Fabricant | DCM |
| Modello | PANTHERE |
| Année | 1992 |
| Working width (mm) | 1400 |
| Unwinder type | Single shaft |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 500 |
| Note | Maximum weight of the mother roll :1000 kg Web tension at unwind Unwind in both direction No Pneumatic chucks for cardboard or plastic cores diameter 76 and 152 mm Core diameter at rewind 76 mm Maximum weight on the rewinding shaft = 300kg for all cores diam 300 kg |
SITEC SMA 600-1300
-
Code Machine: SR443
-
Année: 1999
-
Working width (mm): 1300
KARLVILLE SLIT JHS 1300
-
Code Machine: SR671
-
Working width (mm): 1300
LAEM SYSTEM
-
Code Machine: SR551
-
Année: 2002
-
Working width (mm): 2500
SAGE 1996
-
Code Machine: SR555
-
Année: 1996
-
Working width (mm): 1800
LAEM SYSTEM DOCTORING MACHINE VIS100-800
-
Code Machine: SR559
-
Année: 2015
-
Working width (mm): 800
EUROMAC TB-520
-
Code Machine: SR491
-
Année: 1989
-
Working width (mm): 2000
