- Code Machine
- EX541
- Fabricant
- WINDMÖLLER & HÖLSCHER
- Année
- 1999
- Number of layers
- 3
- Overhaul/renovation
- Machine partially renovated/ upgraded year-2002-2007-2010
- Film structure
- ABC
- Material
- LDPE (up to 100%), LLDPE (up to 100%) ,MDPE
- Film Width
- 1600
- Output (Kg/h)
- 300

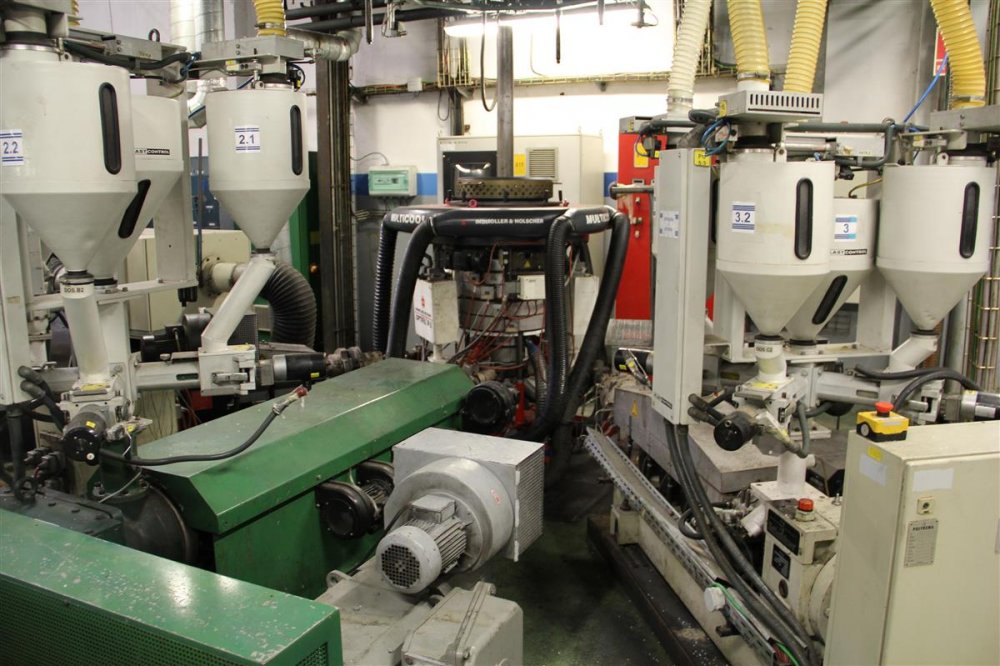

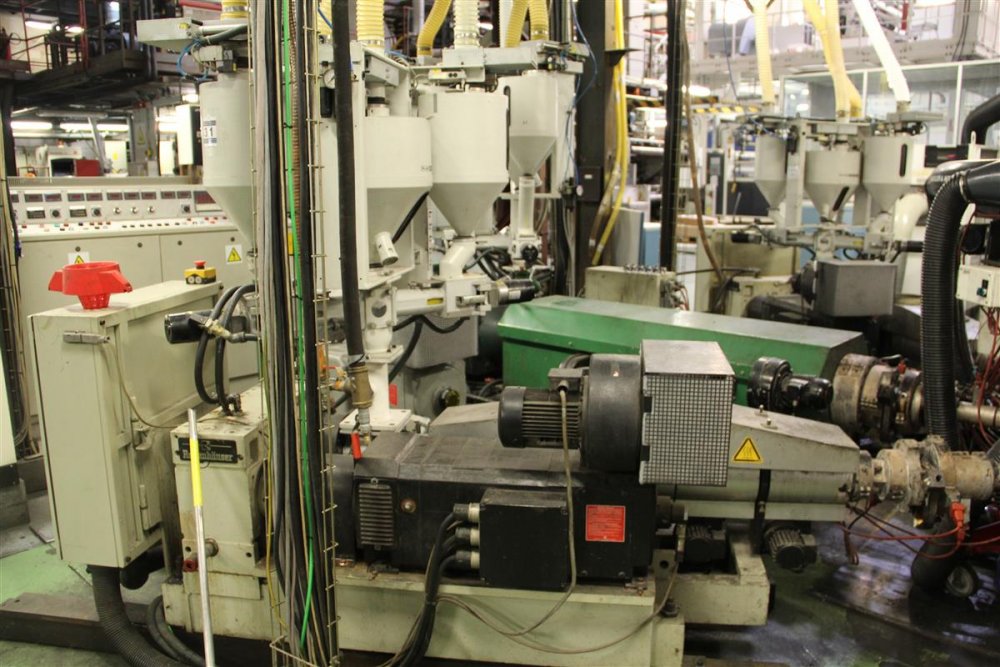

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 50
- Description 1
- L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 80
- Description 2
- L/D 23D , Dosing unit 4 components Plastcontrol
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 50
- Description 3
- L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser

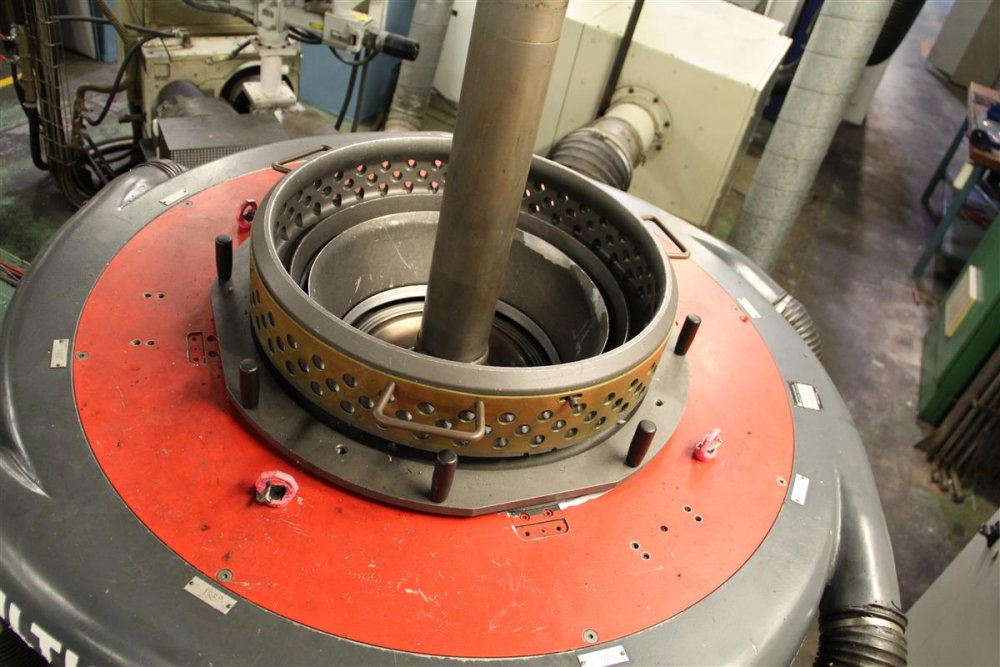

- Head description
- Make W&H, Die Gap 2mm, automatic air ring W&H Optifil P2K year 2007
- Die diam (mm)
- 300
- Thickness controll system
- Yes, gauge Kundig, Control W&H Procontrol TS year 2011, air ring W&H Optifil P2K
- Bubble cage
- yes
- Take off unit
- W&H Rotating
- Corona treatment
- Softal
- Web guide
- yes

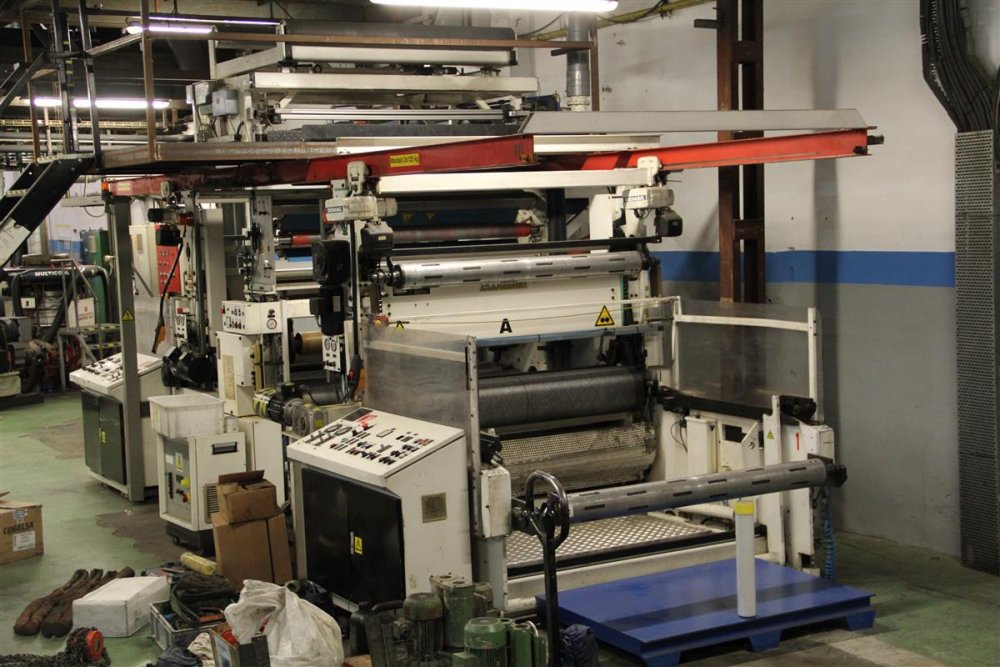

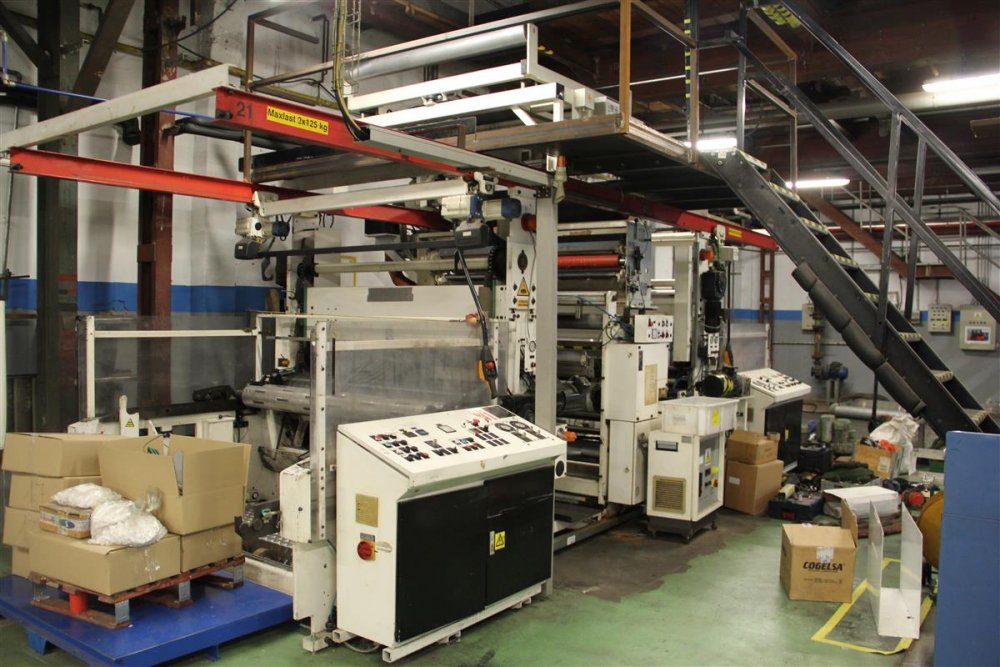

- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1250
- Rewinder description
- Make: W& H Filmatic K , year 1997 . Width 1600mm ; Core size: 3" - 6"; Max speed 200m/min.
- Note
- Process control W&H Procontrol 2010 Perforation device
| Code Machine | EX541 |
| Fabricant | WINDMÖLLER & HÖLSCHER |
| Année | 1999 |
| Number of layers | 3 |
| Overhaul/renovation | Machine partially renovated/ upgraded year-2002-2007-2010 |
| Film structure | ABC |
| Material | LDPE (up to 100%), LLDPE (up to 100%) ,MDPE |
| Film Width | 1600 |
| Output (Kg/h) | 300 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 50 |
| Description 1 | L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 80 |
| Description 2 | L/D 23D , Dosing unit 4 components Plastcontrol |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 50 |
| Description 3 | L/D 30D; Dosing unit 4 components Plastcontrol; make: Reifenhauser |

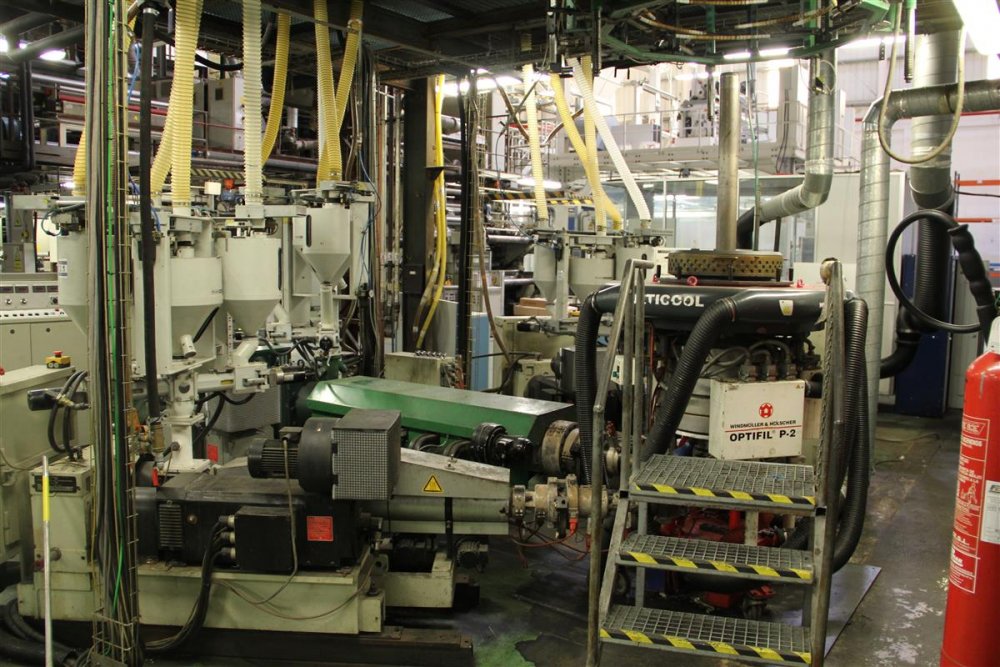

| Head description | Make W&H, Die Gap 2mm, automatic air ring W&H Optifil P2K year 2007 |
| Die diam (mm) | 300 |

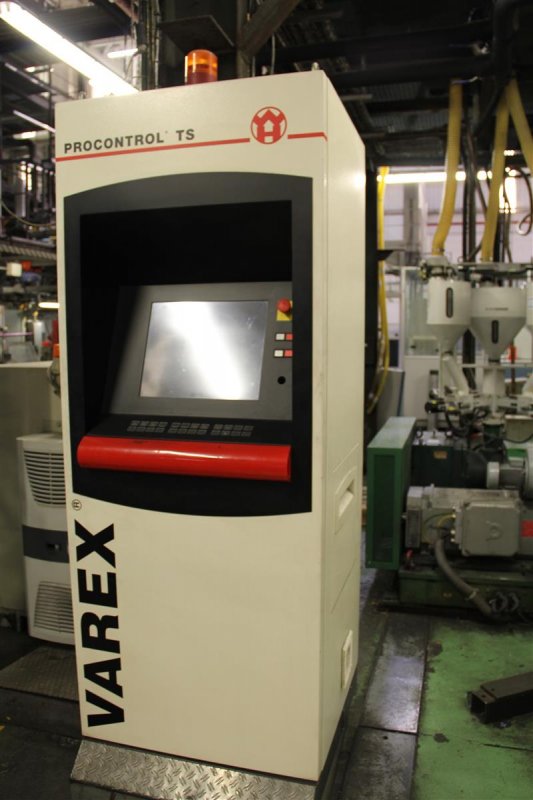

| Thickness controll system | Yes, gauge Kundig, Control W&H Procontrol TS year 2011, air ring W&H Optifil P2K |
| Bubble cage | yes |

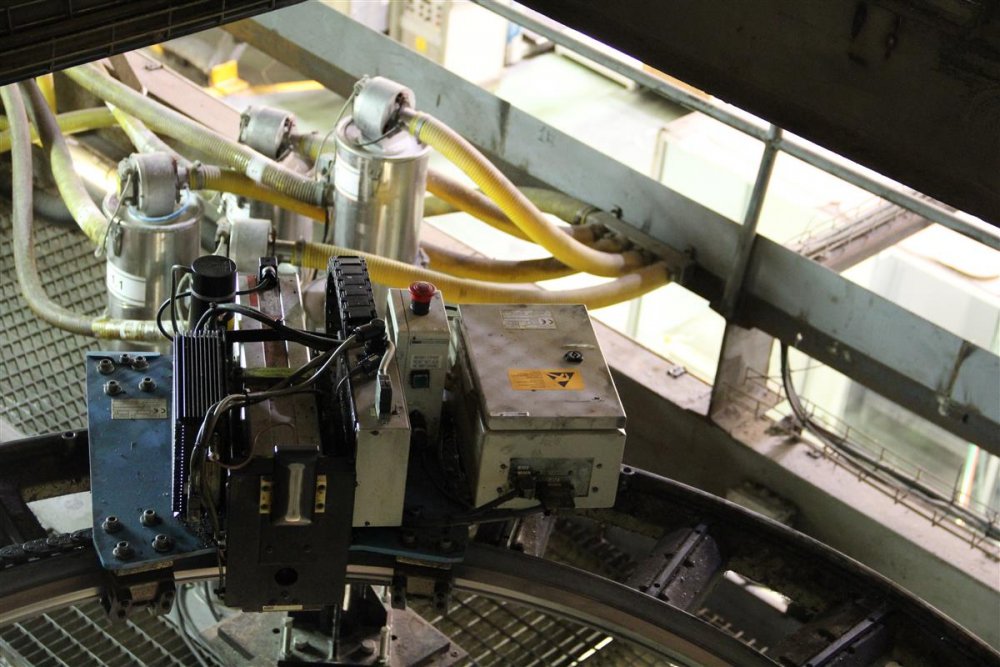

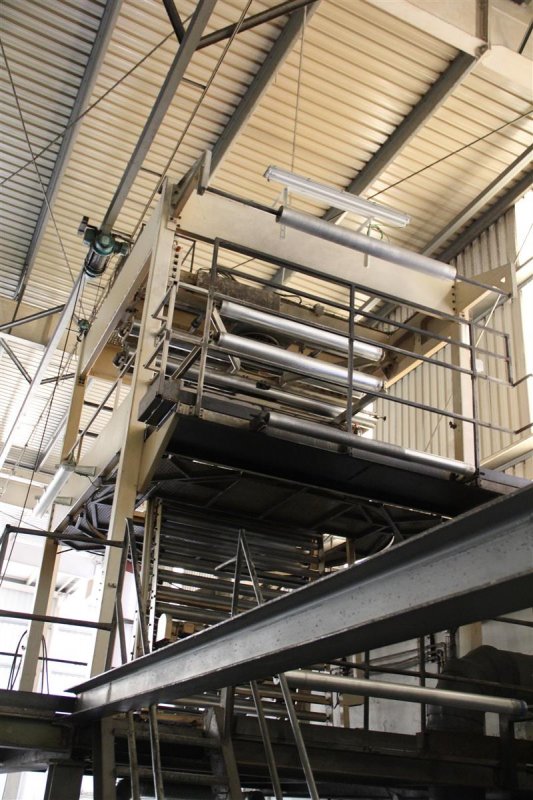

| Take off unit | W&H Rotating |
| Corona treatment | Softal |
| Web guide | yes |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 1250 |
| Rewinder description | Make: W& H Filmatic K , year 1997 . Width 1600mm ; Core size: 3" - 6"; Max speed 200m/min. |
| Note | Process control W&H Procontrol 2010 Perforation device |
