- Code Machine
- RE139
- Fabricant
- STARLINGER
- Modello

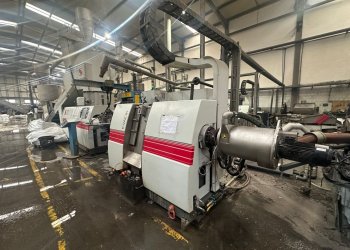

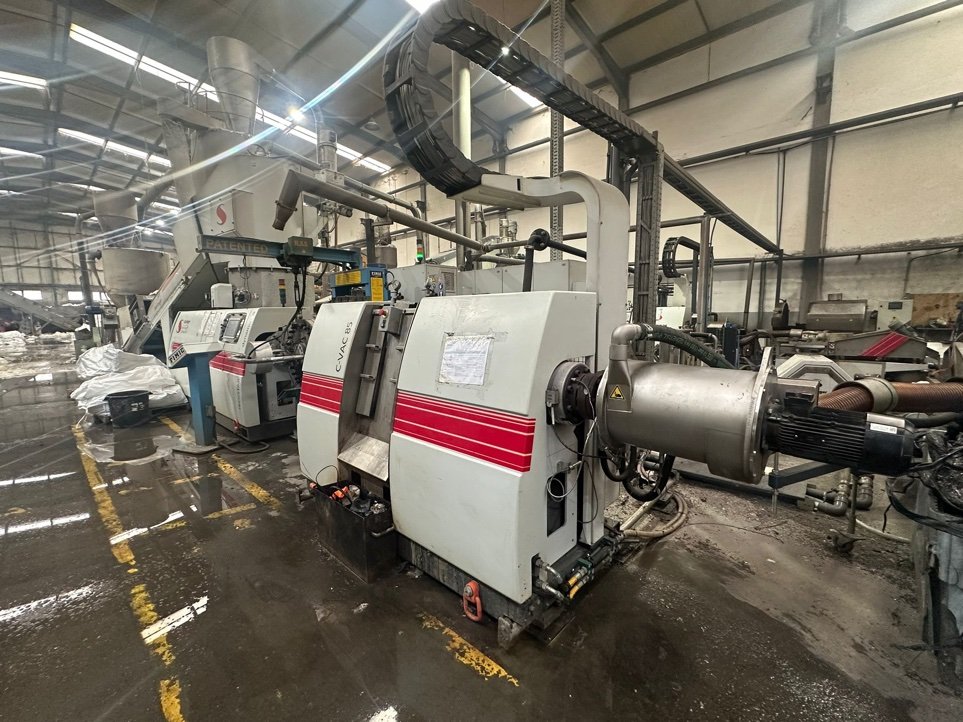

- RECOSTAR DYNAMIC 85 C-VAC
- Année
- 2023
- Screw diameter (mm)
- 85
- Materials
- LDPE, LLDPE, HDPE, PS
- Cooling
- Water cooling
- Output
- 500kg/H
- Note

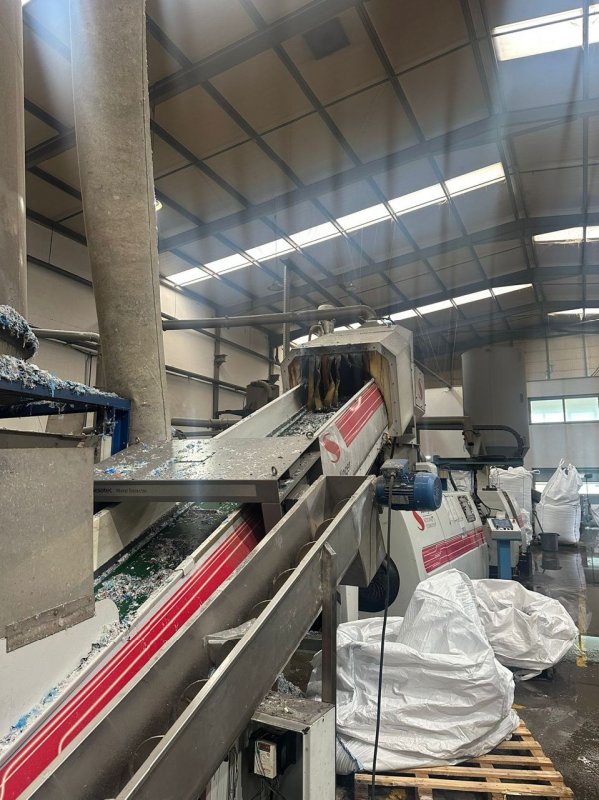

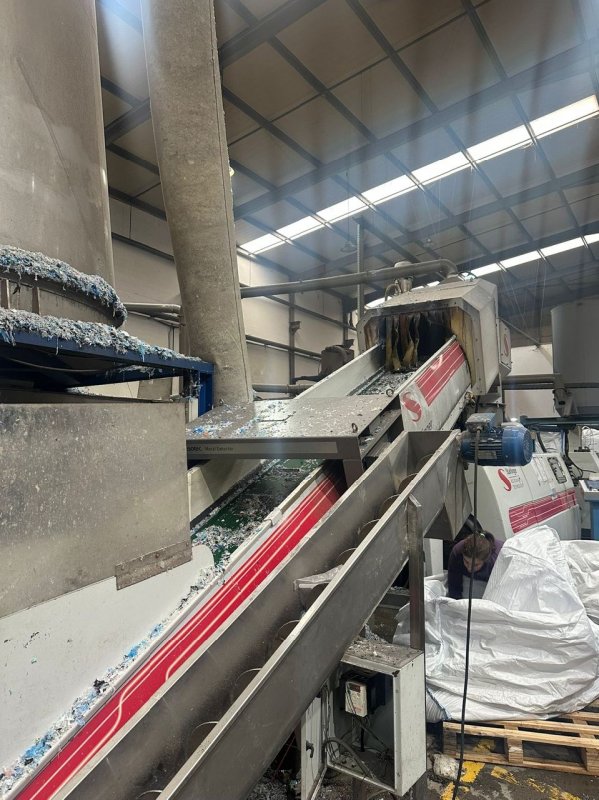

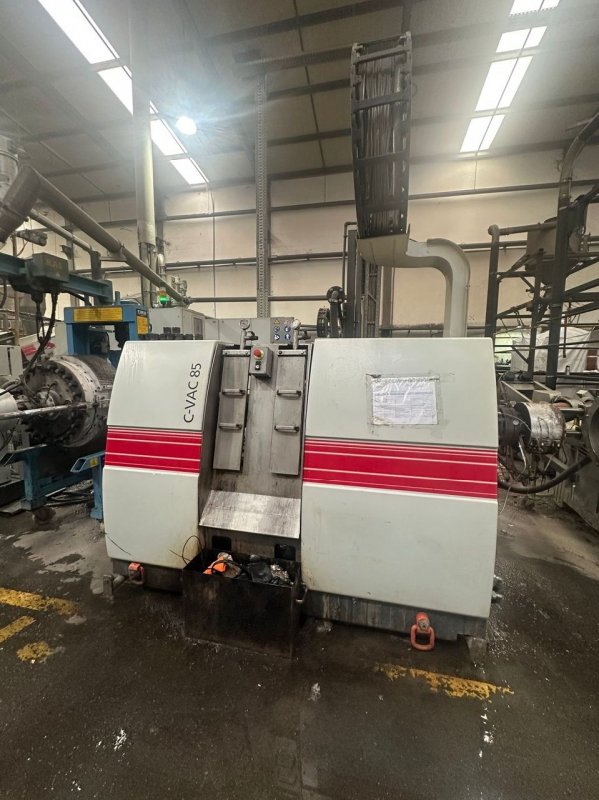

- Conveyor belt CB800D including metal detector Masterbatch dosing unit MBD150 P including feeding and control SMART feeder SF1100 (90kW) including temperature control, shock sensor & intake slider Dynamic automation package DAP1100 (90kW) Air flushing for SMART feeder Dust and steam exhaust unit for SMART feeder Extruder EXD85 (90kW) including melt pressure sensor, melt temperature sensor and air conditioning for electrical components and control panel. Color touch panel (15" display, recipe management) Speed controlled extruder drive (90kW) 2 adaptors with covers including heating and 2 pressure transducer Cascade vacuum unit C-VAC85CC (closed with water circuit) Water ring pelletizing WRP180CC Additional die plate WRP 180CC Automatic change of pelletizing speed Double filling station 1000L with piping & conveyor system Throughput measurement for filling station Fimic Laser Filter – RAS 500 included
| Code Machine | RE139 |
| Fabricant | STARLINGER |
| Modello | RECOSTAR DYNAMIC 85 C-VAC |
| Année | 2023 |
| Screw diameter (mm) | 85 |
| Materials | LDPE, LLDPE, HDPE, PS |
| Cooling | Water cooling |
| Output | 500kg/H |
| Note | Conveyor belt CB800D including metal detector Masterbatch dosing unit MBD150 P including feeding and control SMART feeder SF1100 (90kW) including temperature control, shock sensor & intake slider Dynamic automation package DAP1100 (90kW) Air flushing for SMART feeder Dust and steam exhaust unit for SMART feeder Extruder EXD85 (90kW) including melt pressure sensor, melt temperature sensor and air conditioning for electrical components and control panel. Color touch panel (15" display, recipe management) Speed controlled extruder drive (90kW) 2 adaptors with covers including heating and 2 pressure transducer Cascade vacuum unit C-VAC85CC (closed with water circuit) Water ring pelletizing WRP180CC Additional die plate WRP 180CC Automatic change of pelletizing speed Double filling station 1000L with piping & conveyor system Throughput measurement for filling station Fimic Laser Filter – RAS 500 included |
