- Code Machine
- LAB61
- Fabricant
- EDALE
- Modello
- 250 S
- Année
- 1999
- Number of colors
- 6
- Web width (mm)
- 270
- Print width (mm)
- 250
- Print repeat range (mm)
- 280-355
- Drying
- Hot air and infrared
- Note

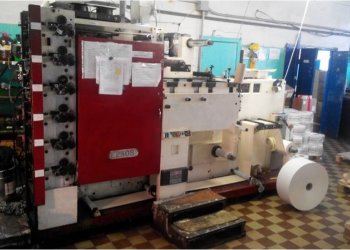

- In production since 2003. Flexographic printing press with closed ink system with doctor knife. Speed up to 100m/min depending on the type of artwork. Water based inks. Dimensions 4,2m lenght 1,3m width, height 2,1m (not including attachments) . Edge control system. Material tension control system (unwinding/rewinding).Infra-red electrical dryers (6 decks).Die cut unit.Mounting table + pneumatic clamps.Drive section - gear (2,5 mm interval).Manual colour register control of the printing decks.Video control .Accessory:Plate rollers: 3 sets.Anilox rolls: 9 rolls.Magnetic cylinder: 2 pcs (11;12 inches) .
| Code Machine | LAB61 |
| Fabricant | EDALE |
| Modello | 250 S |
| Année | 1999 |
| Number of colors | 6 |
| Web width (mm) | 270 |
| Print width (mm) | 250 |
| Print repeat range (mm) | 280-355 |
| Drying | Hot air and infrared |
| Note | In production since 2003. Flexographic printing press with closed ink system with doctor knife. Speed up to 100m/min depending on the type of artwork. Water based inks. Dimensions 4,2m lenght 1,3m width, height 2,1m (not including attachments) . Edge control system. Material tension control system (unwinding/rewinding).Infra-red electrical dryers (6 decks).Die cut unit.Mounting table + pneumatic clamps.Drive section - gear (2,5 mm interval).Manual colour register control of the printing decks.Video control .Accessory:Plate rollers: 3 sets.Anilox rolls: 9 rolls.Magnetic cylinder: 2 pcs (11;12 inches) . |
