- Código Máquina
- SA40
- Constructor
- Gartemann & Hollmann
- Modello

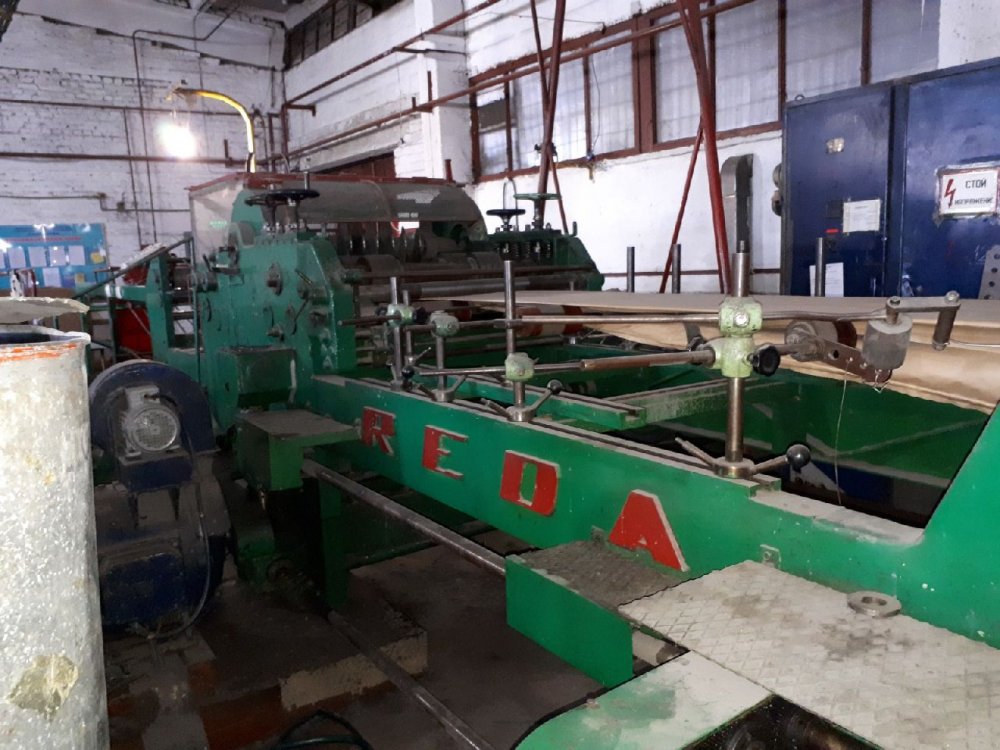

- Tuber Reda 501
- Año
- 1971
- Tipo
- Tuber
- Sack dimensions (mm)
- Tube length: 440-1360 mm. Tube width: 330 - 800 mm.
- Note

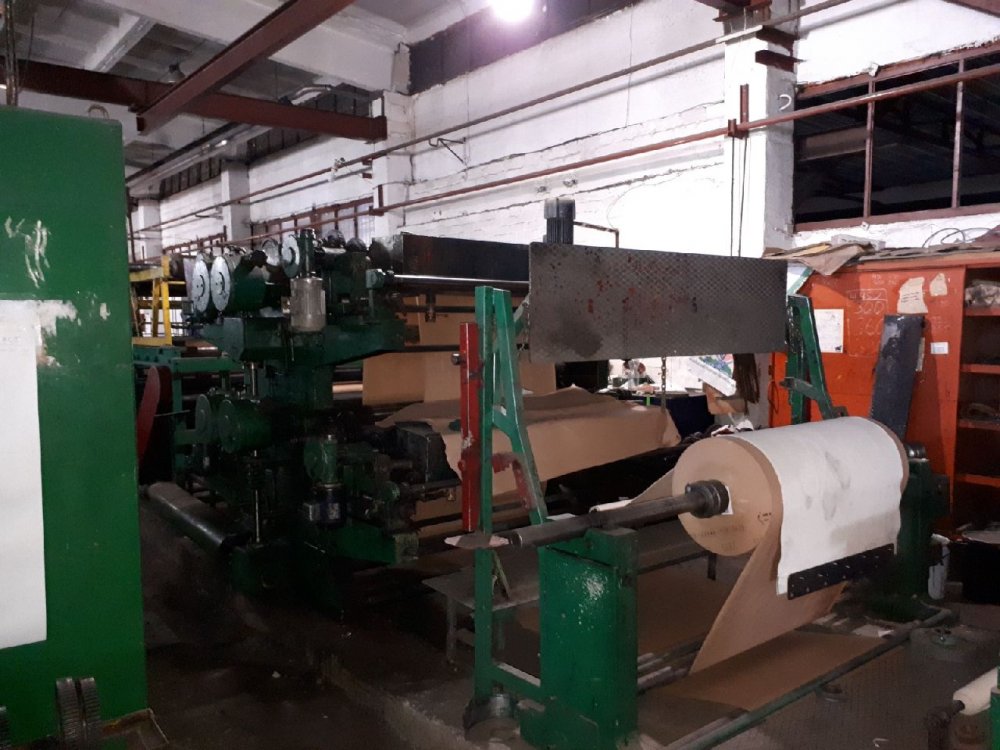

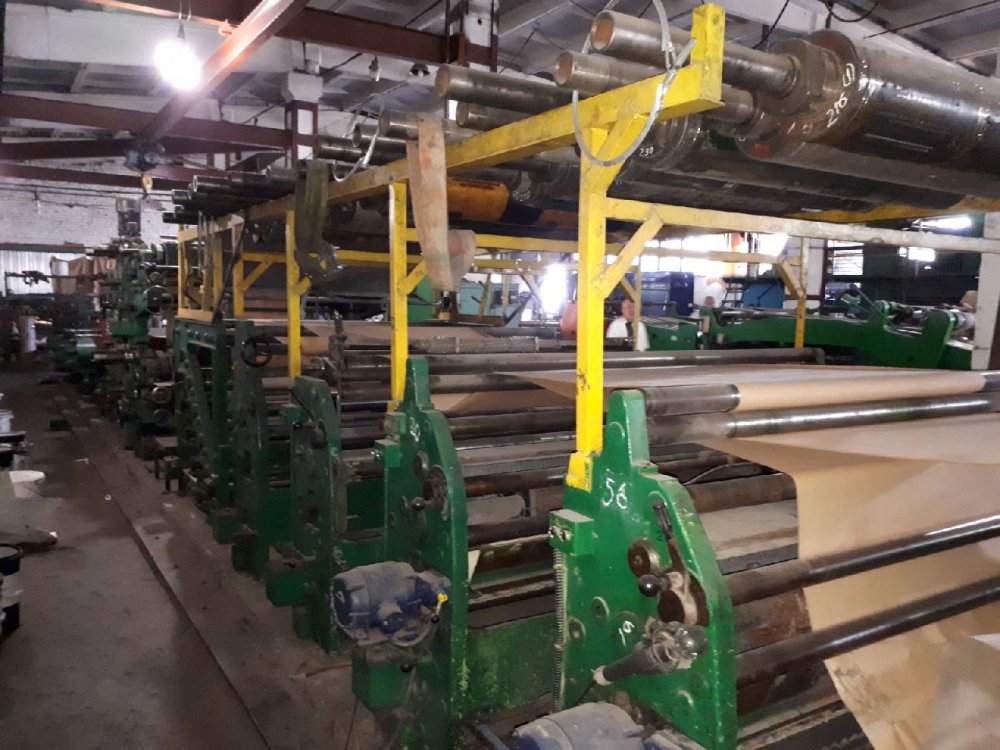

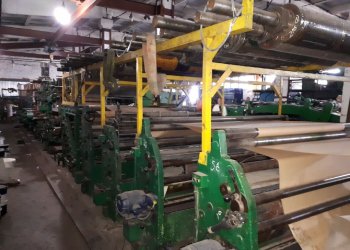

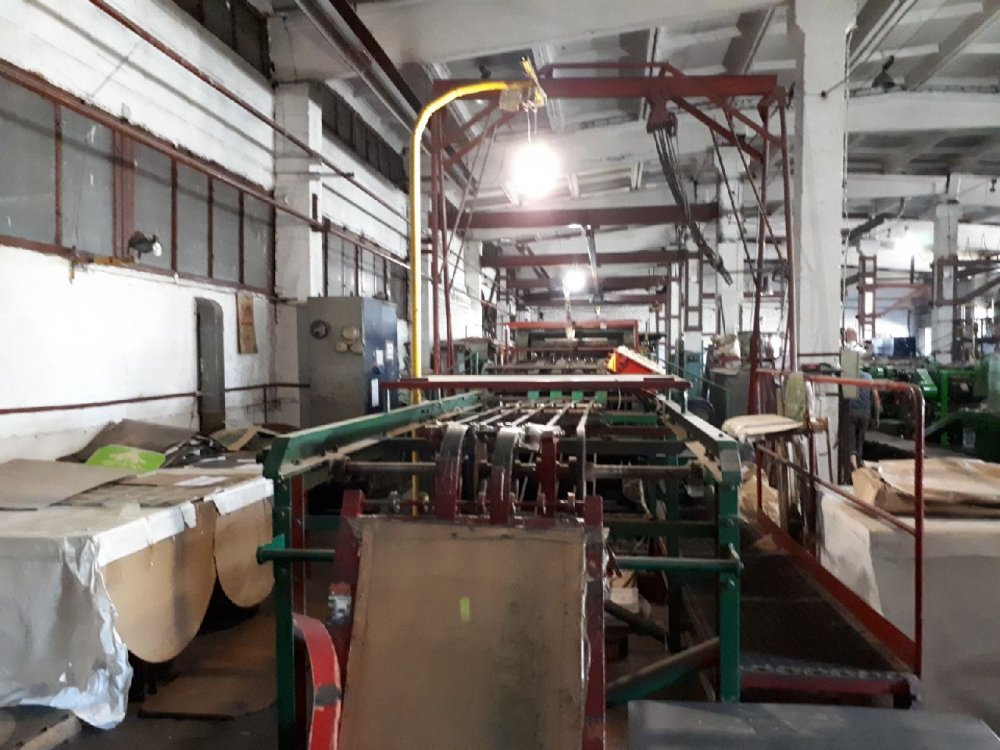

- Straight cut Flexographic printing unit 4 col. Printing length: 1200 mm. Roll width: 400 - 1540 mm. Paper weight: 60-120 g / m2 Number of paper plies: max. 4 Tube length: 440-1360 mm. Tube width: 330 - 800 mm. Speed: 80-150 tubes/min. In normal mode, a maximum of 200 tubes/min. (depending on the number of plies and the quality of the paper) - Counter/Stacker 4 reel stand for rolls up to Ø1150 mm. with axial adjustment; Monorail 2t. (transportation of rolls to the rolling units); Units of preliminary pulling-tension of the web Unit for longitudinal perforation of webs Units of transverse glutinous sizing up to 4 piles of paper Unit of longitudinal gluing Tube formation Rolling unit and radial tube Groove unit for dispensing the tubes and forming stacks The total power consumption is 45 kW / h. Overall dimensions: 24x2,5x3,5 m.
| Código Máquina | SA40 |
| Constructor | Gartemann & Hollmann |
| Modello | Tuber Reda 501 |
| Año | 1971 |
| Tipo | Tuber |
| Sack dimensions (mm) | Tube length: 440-1360 mm. Tube width: 330 - 800 mm. |
| Note | Straight cut Flexographic printing unit 4 col. Printing length: 1200 mm. Roll width: 400 - 1540 mm. Paper weight: 60-120 g / m2 Number of paper plies: max. 4 Tube length: 440-1360 mm. Tube width: 330 - 800 mm. Speed: 80-150 tubes/min. In normal mode, a maximum of 200 tubes/min. (depending on the number of plies and the quality of the paper) - Counter/Stacker 4 reel stand for rolls up to Ø1150 mm. with axial adjustment; Monorail 2t. (transportation of rolls to the rolling units); Units of preliminary pulling-tension of the web Unit for longitudinal perforation of webs Units of transverse glutinous sizing up to 4 piles of paper Unit of longitudinal gluing Tube formation Rolling unit and radial tube Groove unit for dispensing the tubes and forming stacks The total power consumption is 45 kW / h. Overall dimensions: 24x2,5x3,5 m. |
