- Código Máquina
- LA388
- Constructor
- NORDMECCANICA
- Modello
- TRIPLEX COMBI
- Año
- 1998
- Application
- Triplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Overhaul/renovation

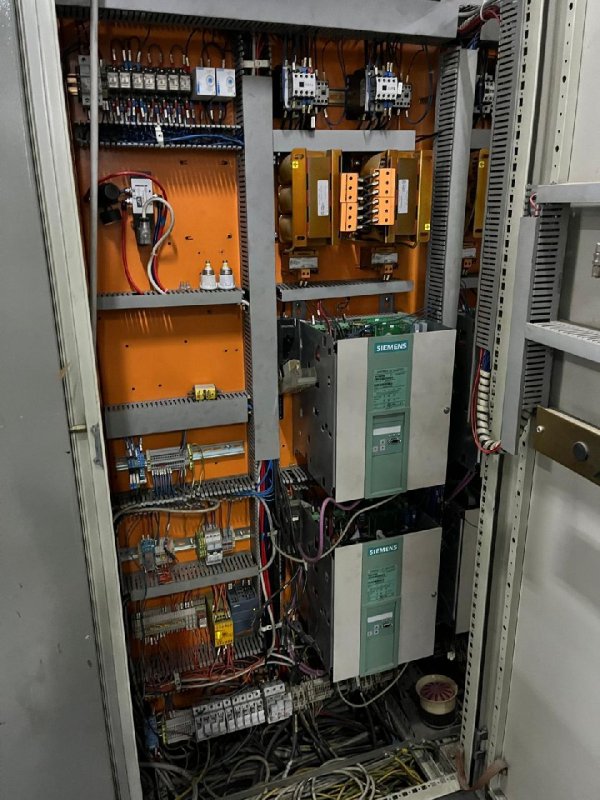

- Complete new control cabinet 2016 SIEMENS S7 PLC and SIEMENS drives
- Working width (mm)
- 1400
- Materials
- Plastic film, paper, alufilm
- First unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Third unwinder type
- Turret
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret
- Max diameter reel rewinder
- 800
- Coating unit
- Solvent/water based coating
- Second Coating unitr
- Solventless
- Drying
- Heated with steam battery
- pumping mixing unit
- VEA mixer
| Código Máquina | LA388 |
| Constructor | NORDMECCANICA |
| Modello | TRIPLEX COMBI |
| Año | 1998 |
| Application | Triplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Overhaul/renovation | Complete new control cabinet 2016 SIEMENS S7 PLC and SIEMENS drives |
| Working width (mm) | 1400 |
| Materials | Plastic film, paper, alufilm |
| First unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Third unwinder type | Turret |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret |
| Max diameter reel rewinder | 800 |
| Coating unit | Solvent/water based coating |
| Second Coating unitr | Solventless |
| Drying | Heated with steam battery |
| pumping mixing unit | VEA mixer |
