- Código Máquina
- FL1228
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- Miraflex AL 8
- Año
- 2013
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 1130
- Unwinder type
- Turret Automatic Shaftless with roll loading system,
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic Shaftless with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control infrared type by Honeywell
- Videocamera
- Yes, AVT. 3 chip matricidal camera and 100% inspection
- Corona treatment
- AFS Single Side 6KW , driven
- Web guides
- Yes
- Vyscosity control
- Inkspec, 3 solvents
- Washing system
- Yes, automatic
- Inking system
- Closed chamber doctor blades, totally 14 piecs ( 8 +6 spare )
- Anilox
- 34 ceramic anilox sleeves
- Print Sleeves
- 400 sleeves, 8 sleeves for each following repeat 400mm , 410, 420, 430, 440, 450 , 460 , 470, 480, 490, 500 , 510, 520 , 530, 540 , 550 , 560 , 580 , 590 , 600 , 610 , 620 , 630 , 640 , 660, 670, 680, 690, 700 , 710 , 720 , 730 , 750 ,760 , 780 , 790 , 810 , 820 , 830 , 840 , 850 , 860 , 870 , 890 24 pcs of adaptors 3 different sizes
- Note
- Max. mechanical speed 400m/min Print materials: PE, OPP, CPP, PA, PET, AUTOMATIC Printing setting EASYSET WH ACE WEB cleaner
| Código Máquina | FL1228 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | Miraflex AL 8 |
| Año | 2013 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 1130 |
| Unwinder type | Turret Automatic Shaftless with roll loading system, |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic Shaftless with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , 6 m6 tunnel , 2 Gas burners, Automatic air recirculating system with LEL control infrared type by Honeywell |
| Videocamera | Yes, AVT. 3 chip matricidal camera and 100% inspection |
| Corona treatment | AFS Single Side 6KW , driven |
| Web guides | Yes |
| Vyscosity control | Inkspec, 3 solvents |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades, totally 14 piecs ( 8 +6 spare ) |
| Anilox | 34 ceramic anilox sleeves |
| Print Sleeves | 400 sleeves, 8 sleeves for each following repeat 400mm , 410, 420, 430, 440, 450 , 460 , 470, 480, 490, 500 , 510, 520 , 530, 540 , 550 , 560 , 580 , 590 , 600 , 610 , 620 , 630 , 640 , 660, 670, 680, 690, 700 , 710 , 720 , 730 , 750 ,760 , 780 , 790 , 810 , 820 , 830 , 840 , 850 , 860 , 870 , 890 24 pcs of adaptors 3 different sizes |
| Note | Max. mechanical speed 400m/min Print materials: PE, OPP, CPP, PA, PET, AUTOMATIC Printing setting EASYSET WH ACE WEB cleaner |
FISCHER & KRECKE 16 S
-
Código Máquina: FL1086
-
Año: 2002
-
Web width (mm): 1150

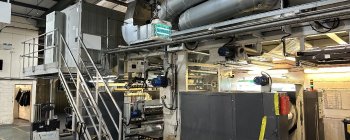

UTECO ONYX 808
-
