- Código Máquina
- FL1227
- Constructor
- BOBST FISCHER & KRECKE
- Modello
- FP16 - S10
- Año
- 2011
- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1500
- Print width (mm)
- 1450
- Min print repeat (mm)
- 390
- Max print repeat (mm)
- 1050
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Thermal oil
- Videocamera
- Yes
- Corona treatment
- AFS 6KW
- Web guides
- Yes
- Vyscosity control
- New Celio, 3 solvents
- Washing system
- Yes, automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 40 aniloxes
- Print Sleeves
- 835 sleeves, 76pcs of adaptors, 7 different sizes
- Note
- Max. Mechanical speed - 500m/min Print materials: PE, OPP, CPP, PA, PET, papier Web slitting before rewinder to separate ups
| Código Máquina | FL1227 |
| Constructor | BOBST FISCHER & KRECKE |
| Modello | FP16 - S10 |
| Año | 2011 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1500 |
| Print width (mm) | 1450 |
| Min print repeat (mm) | 390 |
| Max print repeat (mm) | 1050 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Thermal oil |
| Videocamera | Yes |
| Corona treatment | AFS 6KW |
| Web guides | Yes |
| Vyscosity control | New Celio, 3 solvents |
| Washing system | Yes, automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 40 aniloxes |
| Print Sleeves | 835 sleeves, 76pcs of adaptors, 7 different sizes |
| Note | Max. Mechanical speed - 500m/min Print materials: PE, OPP, CPP, PA, PET, papier Web slitting before rewinder to separate ups |
UTECO TOPAZ 608
-
Código Máquina: FL1177
-
Año: 2019
-
Web width (mm): 1350
OFEM Colombus 7/806
-
Código Máquina: FL1099
-
Año: 1998
-
Web width (mm): 1270
BONARDI M7
-
Código Máquina: FL1136
-
Año: 2020
-
Web width (mm): 1400
COMEXI FS 1500
-
Código Máquina: FL1211
-
Año: 1997
-
Web width (mm): 1240

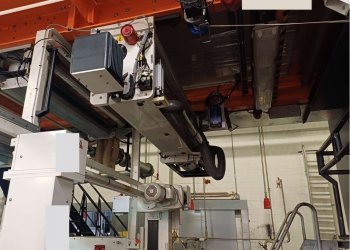

WINDMÖLLER & HÖLSCHER Miraflex AL 8
-
