- Código Máquina
- FL1078
- Constructor

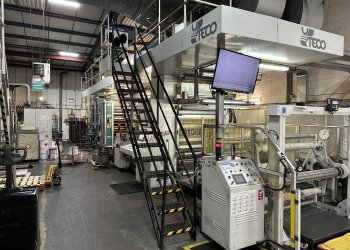

- UTECO
- Modello
- ONYX 876
- Año
- 2010
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 800
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones (print unit and tunnel), 4 fans, 2 gas burners. Drying tunnel with 2 hoods 6 mt
- Videocamera
- BST
- Web guides
- BST EKR 500
- Inking system
- Close chamber doctor blades
- Anilox
- 16
- Print Sleeves
- approx 190
- Note
- Mechanical speed 365 m/min frigosystem chiller Operational LEL system Inline slitting
| Código Máquina | FL1078 |
| Constructor | UTECO |
| Modello | ONYX 876 |
| Año | 2010 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 800 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones (print unit and tunnel), 4 fans, 2 gas burners. Drying tunnel with 2 hoods 6 mt |
| Videocamera | BST |
| Web guides | BST EKR 500 |
| Inking system | Close chamber doctor blades |
| Anilox | 16 |
| Print Sleeves | approx 190 |
| Note | Mechanical speed 365 m/min frigosystem chiller Operational LEL system Inline slitting |
