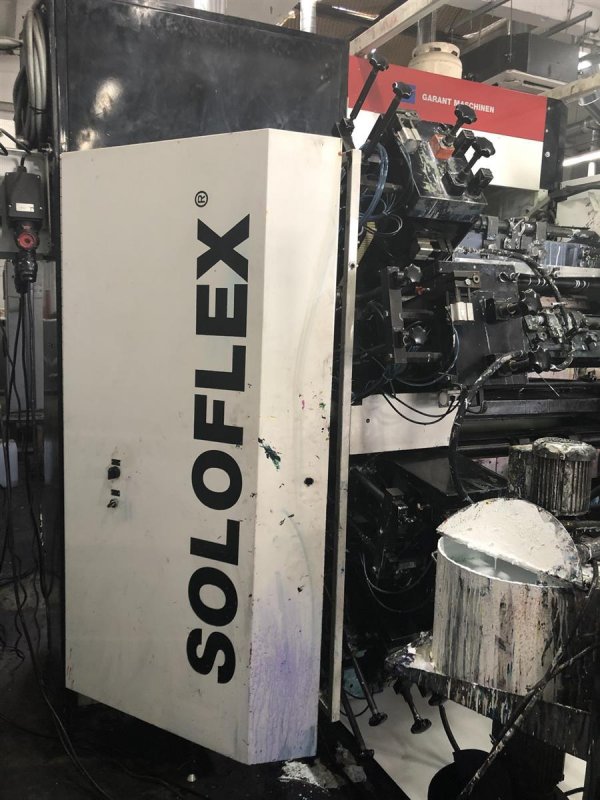

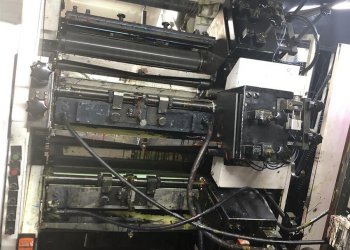

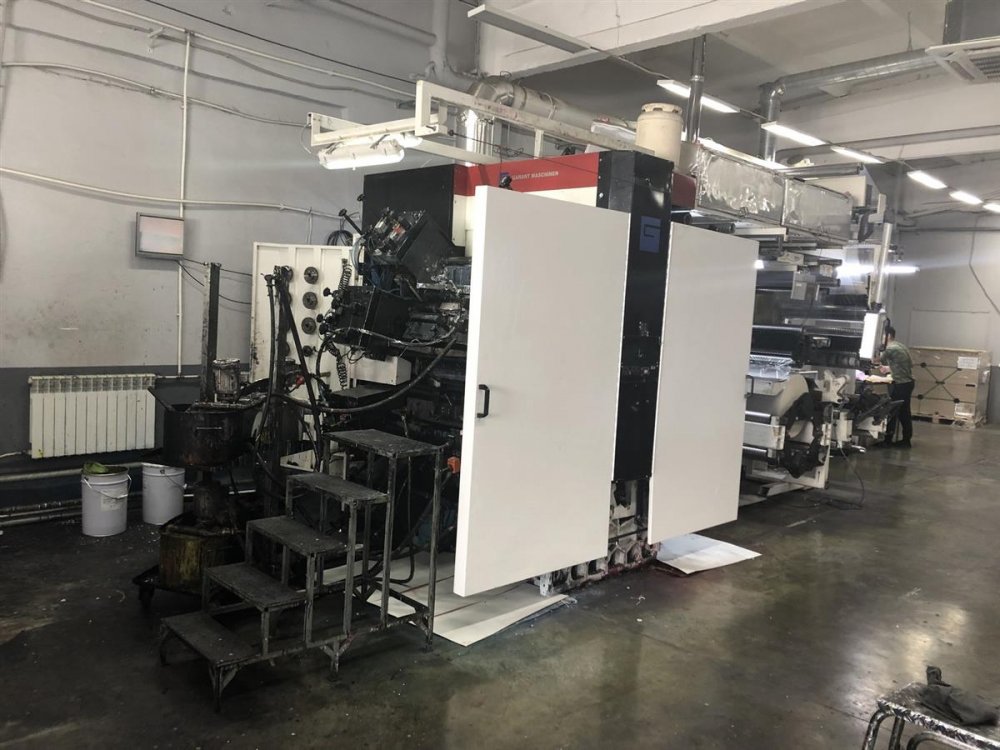

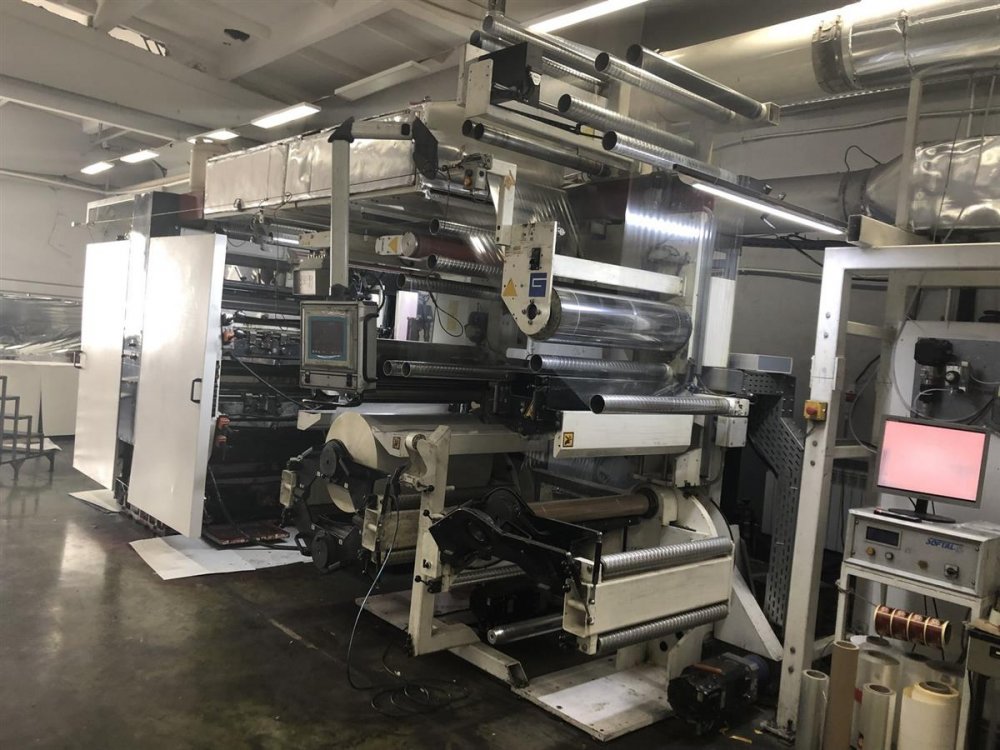

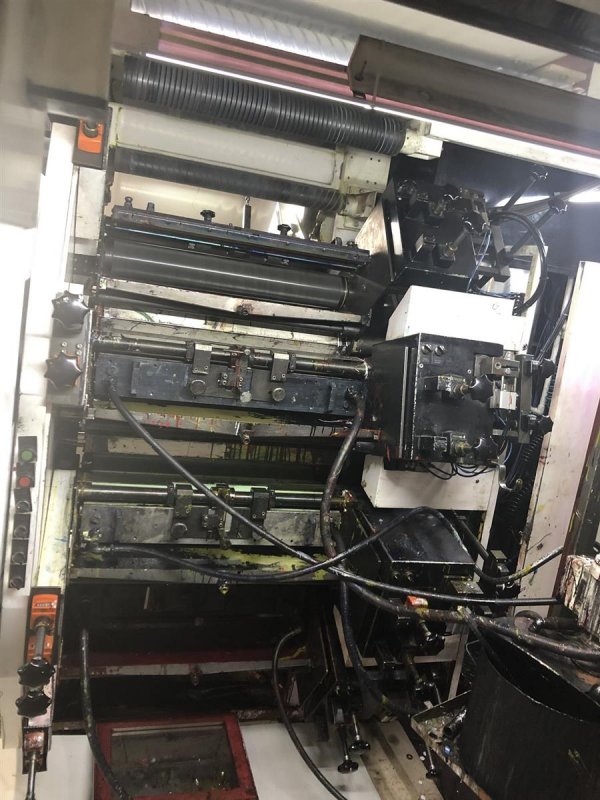

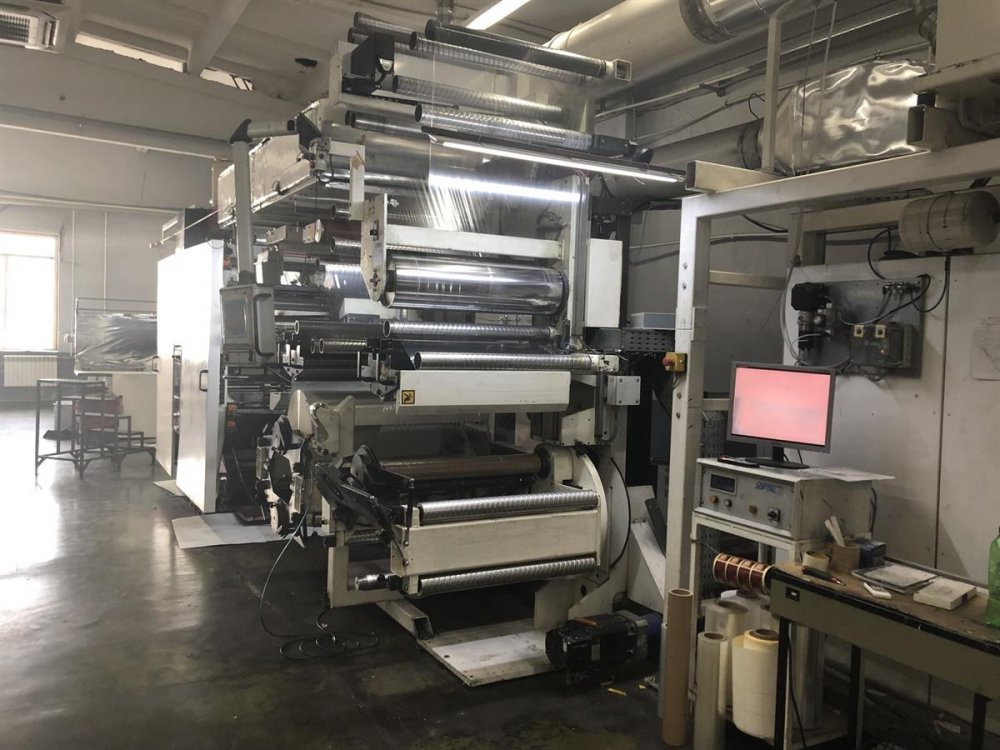

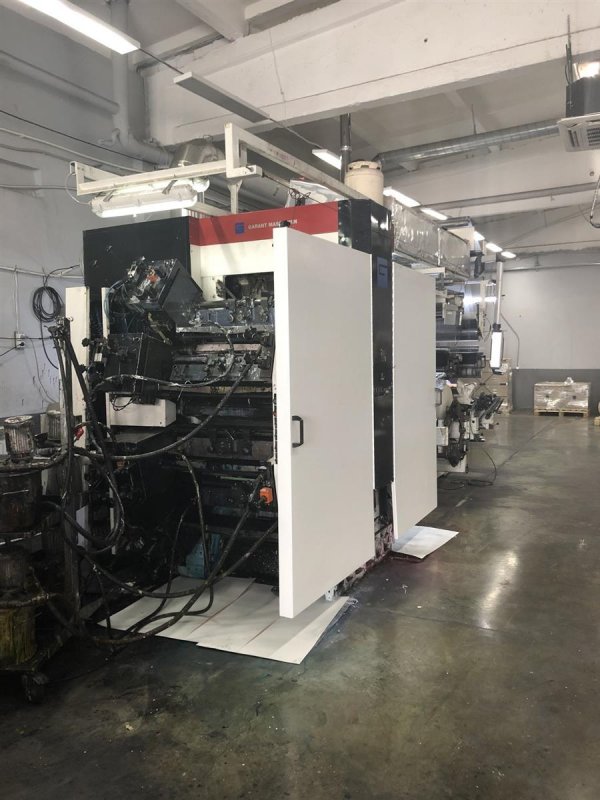

WINDMÖLLER & HÖLSCHER SOLOFLEX Maquina Flexo 8 colores

Código Máquina
FL871
Constructor
WINDMÖLLER & HÖLSCHER
Modello
SOLOFLEX
Año
2007
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
No

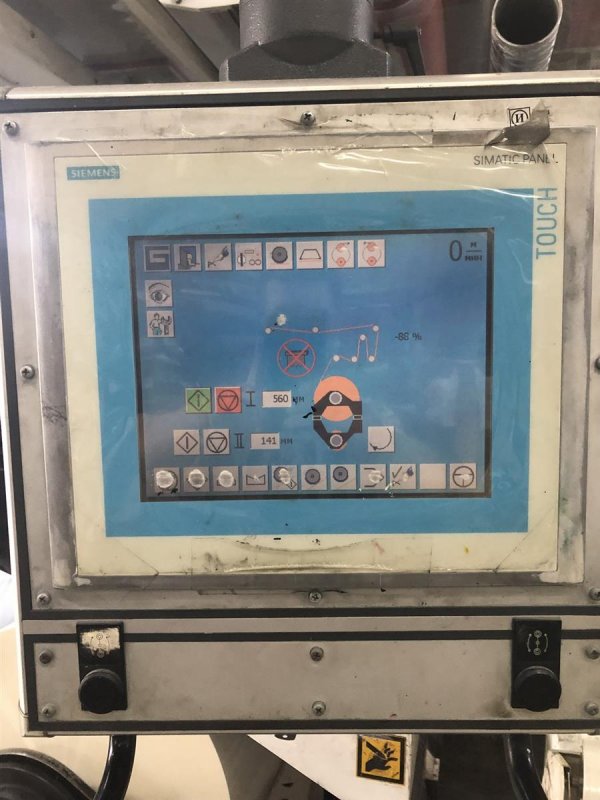

Computer supervision
Yes
Web width (mm)
850
Print width (mm)
820
Min print repeat (mm)
280
Max print repeat (mm)
600

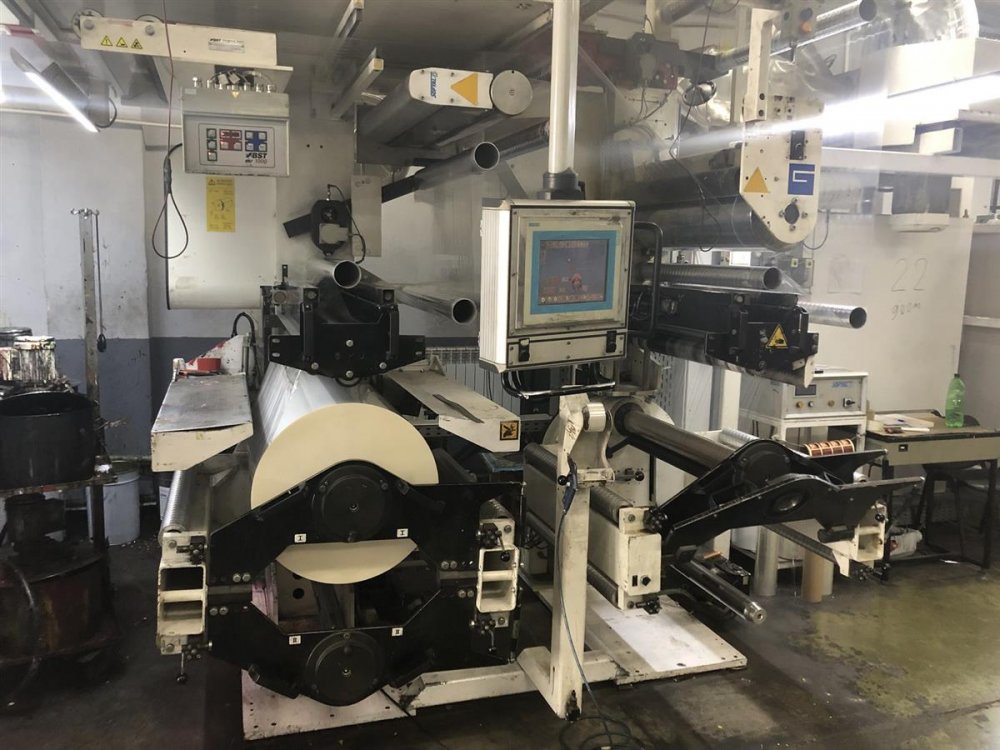

Unwinder type
Cantilever turret
Max reel diameter unwinder (mm)
600
Rewinder type
Turret
Max reel diameter rewinder (mm)
600
Drying
Electric
Videocamera
BST HandyScan pro 3000
Corona treatment
1 Softal
Web guides
BST
Inking system
Ceramic anilox + doctor blade
Anilox
l.xcm3/m2, 80x24,100x13,2,100x18,100x20,100x20,100x14,8-14,3,100x14,7 ,110x9,5,120x9,130x9,7,130x9,6,140x8,7,140x8,9,140x8,5,160x10,180x7,6,180x7,5,200x6 ,200x6,4,200x6,4,220x9 ,230x6,3,230x6,3,255x5,7,255x5,6,255x5,7,255x5,9 ,255x5,6,255x5,6,320x4,7,320x4,7,320x4,6 ,320x4,8,340x4,340x4,340x4.
Print Sleeves
250x8, 260x9, 265x9,270x15, 275x8, 280x16, 285x8, 290x8,300x7, 310x8,315x8, 330x10, 335x8,340x8,345x8,350x8,355x10,375x8,380x16,400x9,405x8,410x8,420x7,440x10,445x7,470x10,480x8,490x24
Note

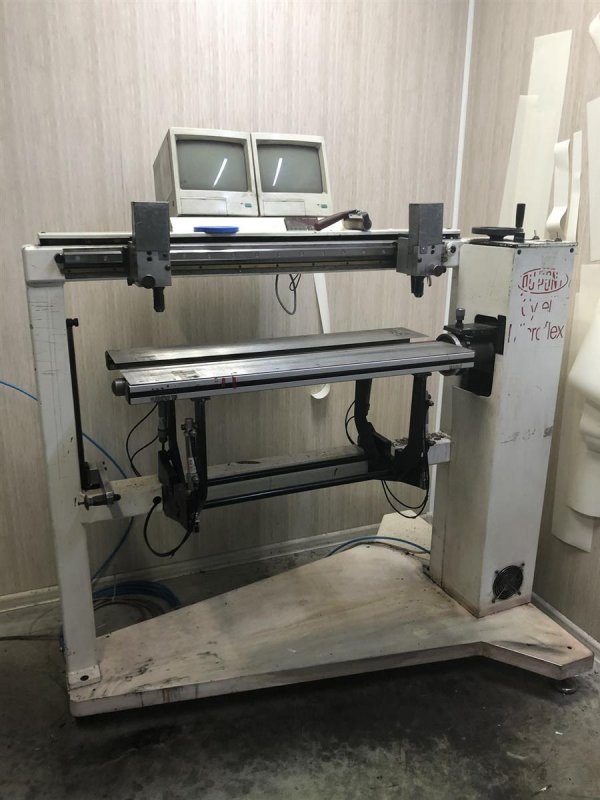

Flexo plates mounting machine Microflex (DuPont) Pumps 23 pieces. Ink boxes big 9 pieces. Ink tanks small 5 pieces. Doctor blade chambers 15 pieces. Pallets 20 pieces. Doctor blades 390 pieces. Stands for 4 ink tanks 2 pieces. Ink pipes 10 pieces. Trolley for rolls 1 piece.
Código Máquina FL871
Constructor WINDMÖLLER & HÖLSCHER
Modello SOLOFLEX
Año 2007
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system No
Computer supervision Yes
Web width (mm) 850
Print width (mm) 820
Min print repeat (mm) 280
Max print repeat (mm) 600
Unwinder type Cantilever turret
Max reel diameter unwinder (mm) 600
Rewinder type Turret
Max reel diameter rewinder (mm) 600
Drying Electric
Videocamera BST HandyScan pro 3000
Corona treatment 1 Softal
Web guides BST
Inking system Ceramic anilox + doctor blade
Anilox l.xcm3/m2, 80x24,100x13,2,100x18,100x20,100x20,100x14,8-14,3,100x14,7 ,110x9,5,120x9,130x9,7,130x9,6,140x8,7,140x8,9,140x8,5,160x10,180x7,6,180x7,5,200x6 ,200x6,4,200x6,4,220x9 ,230x6,3,230x6,3,255x5,7,255x5,6,255x5,7,255x5,9 ,255x5,6,255x5,6,320x4,7,320x4,7,320x4,6 ,320x4,8,340x4,340x4,340x4.
Print Sleeves 250x8, 260x9, 265x9,270x15, 275x8, 280x16, 285x8, 290x8,300x7, 310x8,315x8, 330x10, 335x8,340x8,345x8,350x8,355x10,375x8,380x16,400x9,405x8,410x8,420x7,440x10,445x7,470x10,480x8,490x24
Note Flexo plates mounting machine Microflex (DuPont) Pumps 23 pieces. Ink boxes big 9 pieces. Ink tanks small 5 pieces. Doctor blade chambers 15 pieces. Pallets 20 pieces. Doctor blades 390 pieces. Stands for 4 ink tanks 2 pieces. Ink pipes 10 pieces. Trolley for rolls 1 piece.
** SOLD **
