- Código Máquina
- FL734
- Constructor
- COMEXI
- Modello
- FP 1808
- Año
- 1997
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 970
- Print width (mm)
- 920
- Min print repeat (mm)
- 335
- Max print repeat (mm)
- 650
- Unwinder type
- Flying splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Flying splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas drying (2.74m length)
- Videocamera
- BST video camera system
- Corona treatment
- Sherman corona treater
- Web guides
- BST edge guide front and back
- Vyscosity control
- Inelme automatic viscosity control
- Inking system
- Steel sealed chamber doctor blades

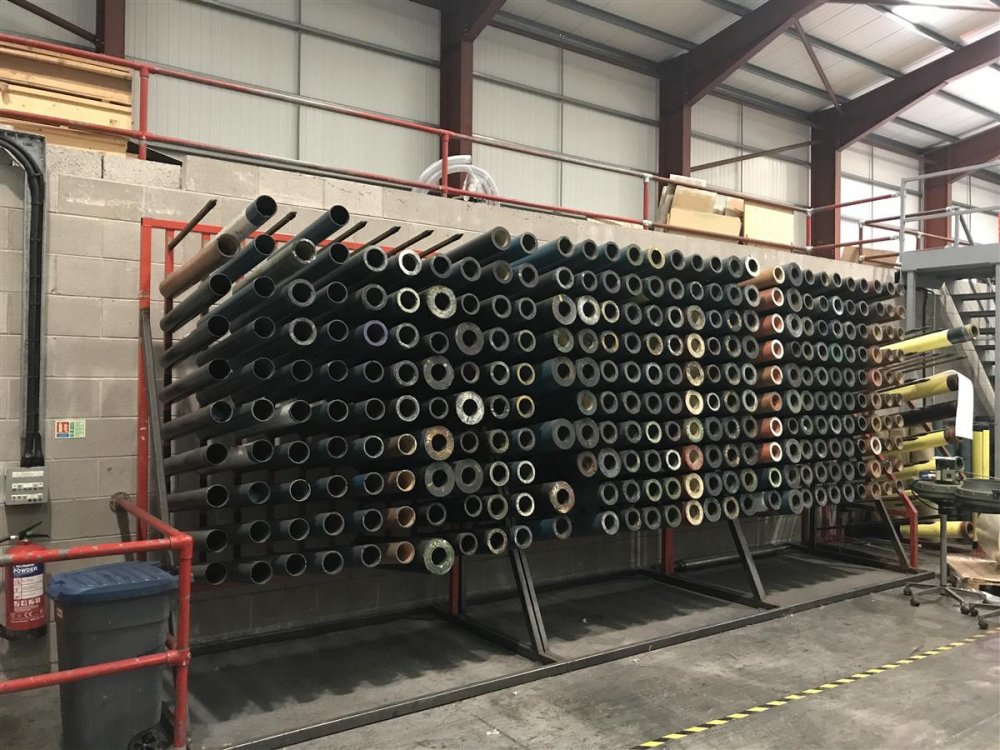

- Print Sleeves
- tot 316. 8x335,345,355 ,375,380,385,395,420,455,460,465,480,500,530,560,580,630 ; 16x365,430,440,4850,485,510,545,620 ; 12x405 ; 24x520
- Note
- 5mm gear pitch Inline slitting with razor blades Suitable for printing on LDPE, OPP, CPP 4x air shafts (76mm)
Código Máquina | FL734 |
Constructor | COMEXI |
Modello | FP 1808 |
Año | 1997 |
Number of colors | 8 |
Gearless | No |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 970 |
Print width (mm) | 920 |
Min print repeat (mm) | 335 |
Max print repeat (mm) | 650 |
Unwinder type | Flying splice |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | Flying splice |
Max reel diameter rewinder (mm) | 800 |
Drying | Gas drying (2.74m length) |
Videocamera | BST video camera system |
Corona treatment | Sherman corona treater |
Web guides | BST edge guide front and back |
Vyscosity control | Inelme automatic viscosity control |
Inking system | Steel sealed chamber doctor blades |
Print Sleeves | tot 316. 8x335,345,355 ,375,380,385,395,420,455,460,465,480,500,530,560,580,630 ; 16x365,430,440,4850,485,510,545,620 ; 12x405 ; 24x520 |
Note | 5mm gear pitch Inline slitting with razor blades Suitable for printing on LDPE, OPP, CPP 4x air shafts (76mm) |
