- Código Máquina
- FL659

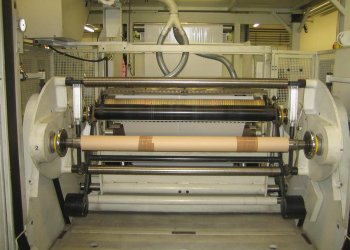

- Constructor
- FISCHER & KRECKE
- Modello
- 34 DF
- Año
- 2000
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- No
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 1000
- Max reel diameter unwinder (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- AVT optical web scanner
- Corona treatment
- no
- Web guides
- Yes
- Vyscosity control
- Yes
- Inking system
- Ink pump system with cleaning function
- Anilox
- Not available
- Print Sleeves
- 76
- Note
- Speed 300m/min Reel width min 400mm -max 1500mm Cores diameters unwind/rewind 76mm Turn bar for 1/2 web Cutt off 300mm-1160mm = 6 colors 300mm-1000mm = 8 colors AVT optical web scanner reel slitter +extraction reel width min 400 -max 1500mm
| Código Máquina | FL659 |
| Constructor | FISCHER & KRECKE |
| Modello | 34 DF |
| Año | 2000 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | No |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 1000 |
| Max reel diameter unwinder (mm) | 1000 |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | AVT optical web scanner |
| Corona treatment | no |
| Web guides | Yes |
| Vyscosity control | Yes |
| Inking system | Ink pump system with cleaning function |
| Anilox | Not available |
| Print Sleeves | 76 |
| Note | Speed 300m/min Reel width min 400mm -max 1500mm Cores diameters unwind/rewind 76mm Turn bar for 1/2 web Cutt off 300mm-1160mm = 6 colors 300mm-1000mm = 8 colors AVT optical web scanner reel slitter +extraction reel width min 400 -max 1500mm |
