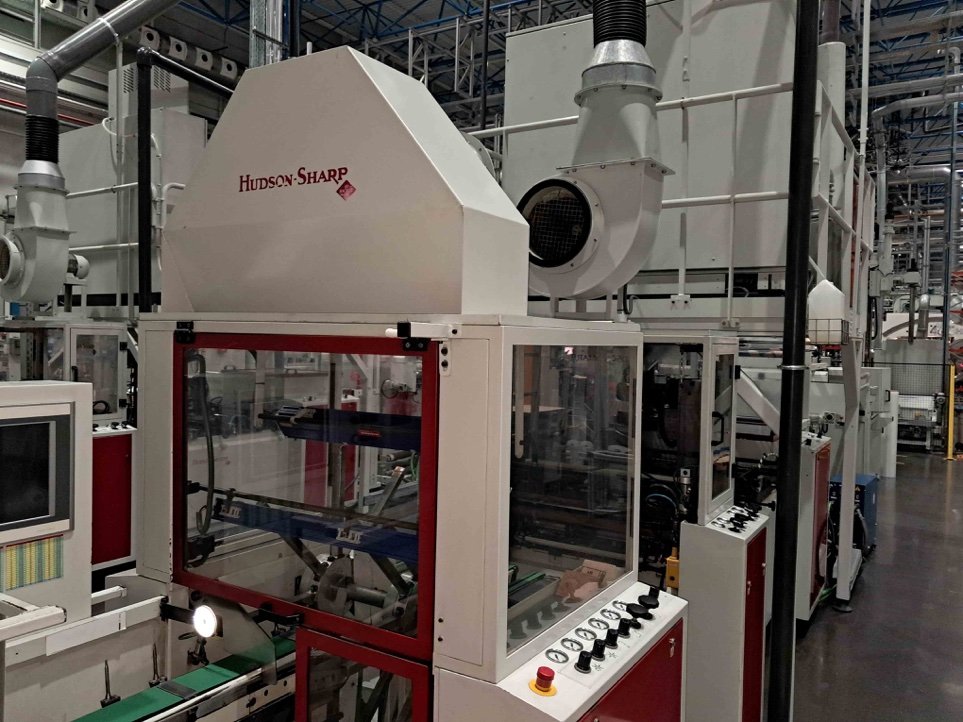

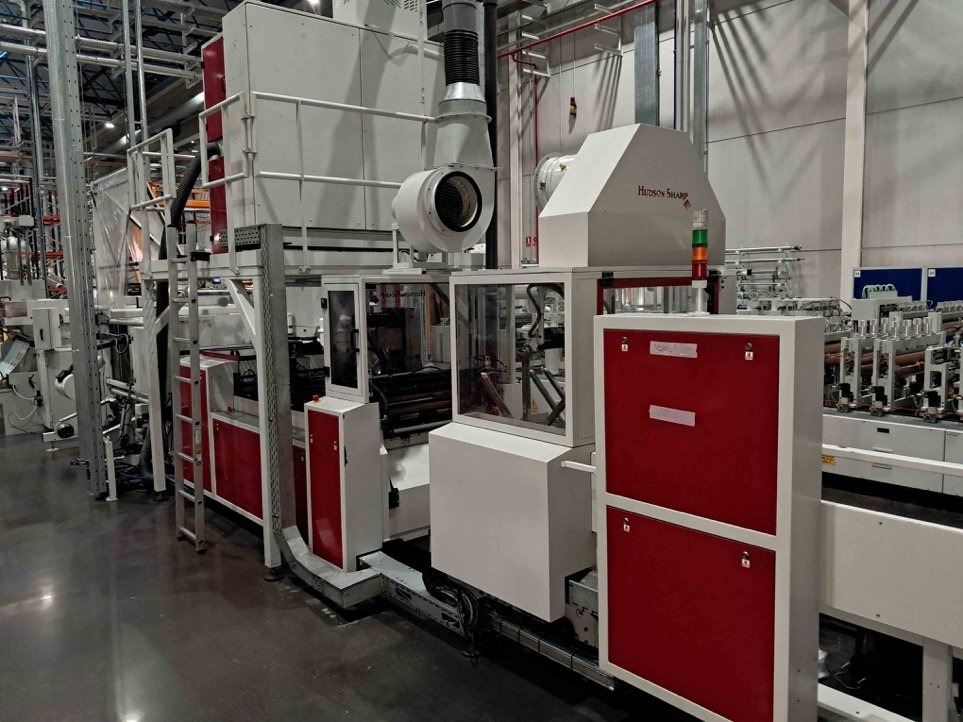

- Machine code
- FI576
- Manufacturer
- HUDSON SHARP
- Modello
- 5750W 390-H
- Year
- 2006
- Type of delivery
- Wicketer)

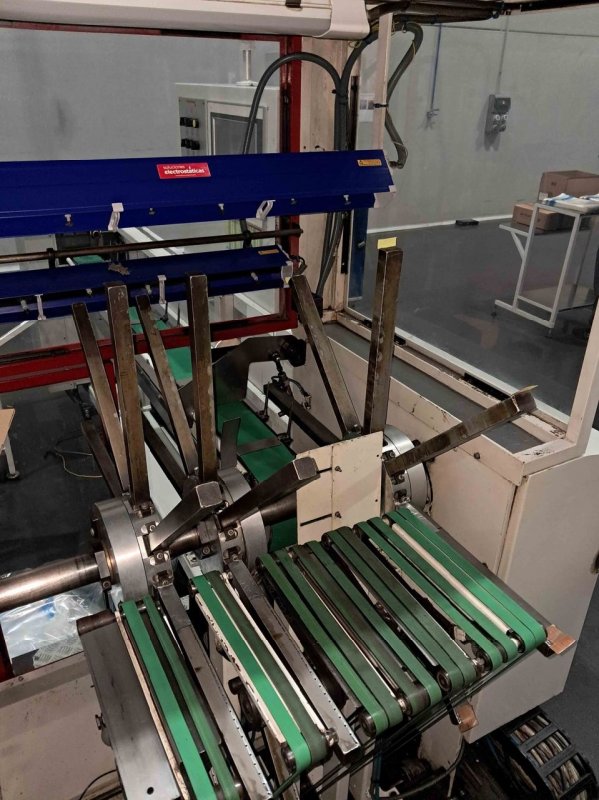

- Type of bags
- Wicketers
- Working width (mm)
- 1370
- Bag length
- max. 610mm, min.240mm
- Bag width
- max.390mm, min.110mm
- Cycle / min
- 120m/min

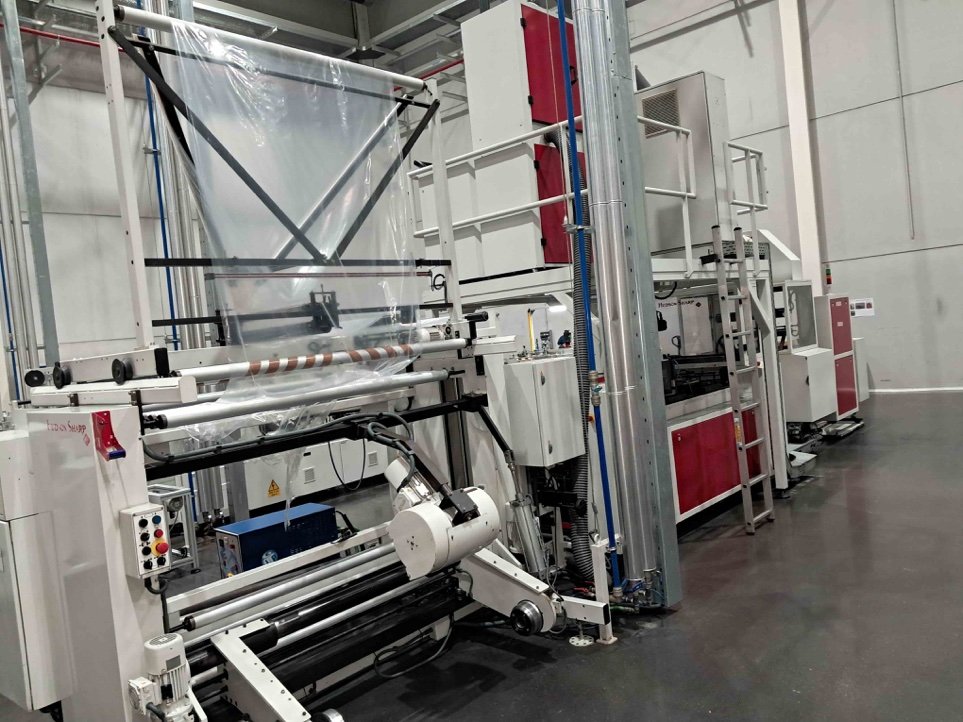

- Unwinder

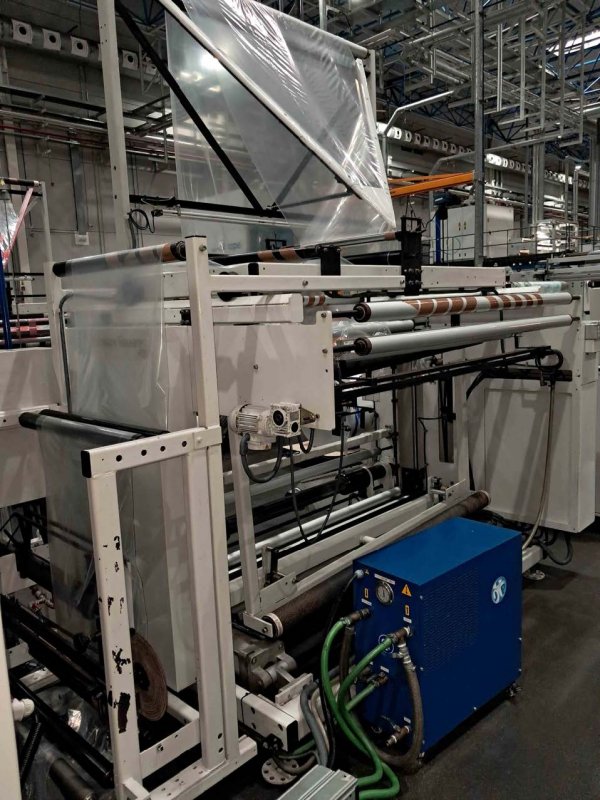

- Shaftless, Electric powered and braked, VFAC surface driven, Unwind speed determined by position of compensator, Film tension can be adjusted between 0 and 1 Newton/Meter/Micron, Selection of the unwind direction via touch screen, Pneumatic reel lifting, Folding triangle on top 2, Motorised opening and closing of lifting arms, With ultrasonic BST centre guide, Light running bearings, End of reel and film break detection, For core dia of 76 and 152 mm max. roll diamterer 1000mm
- Note

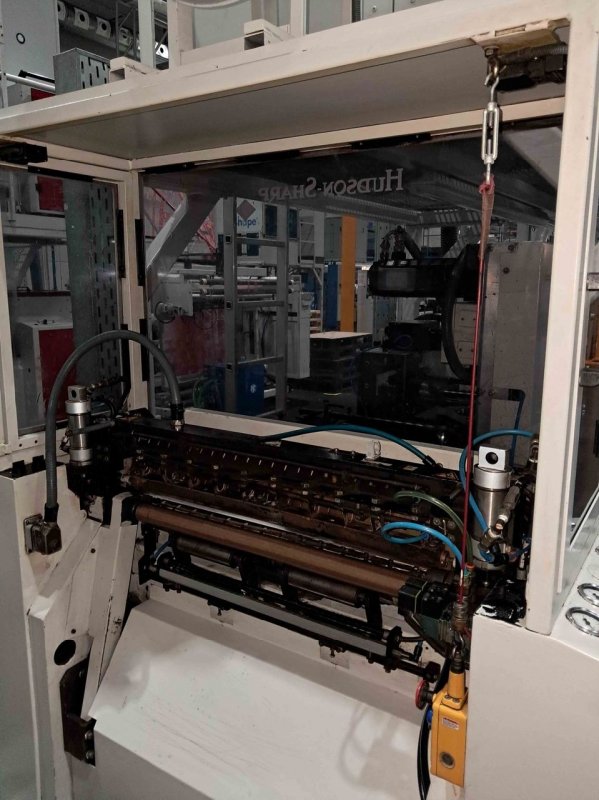

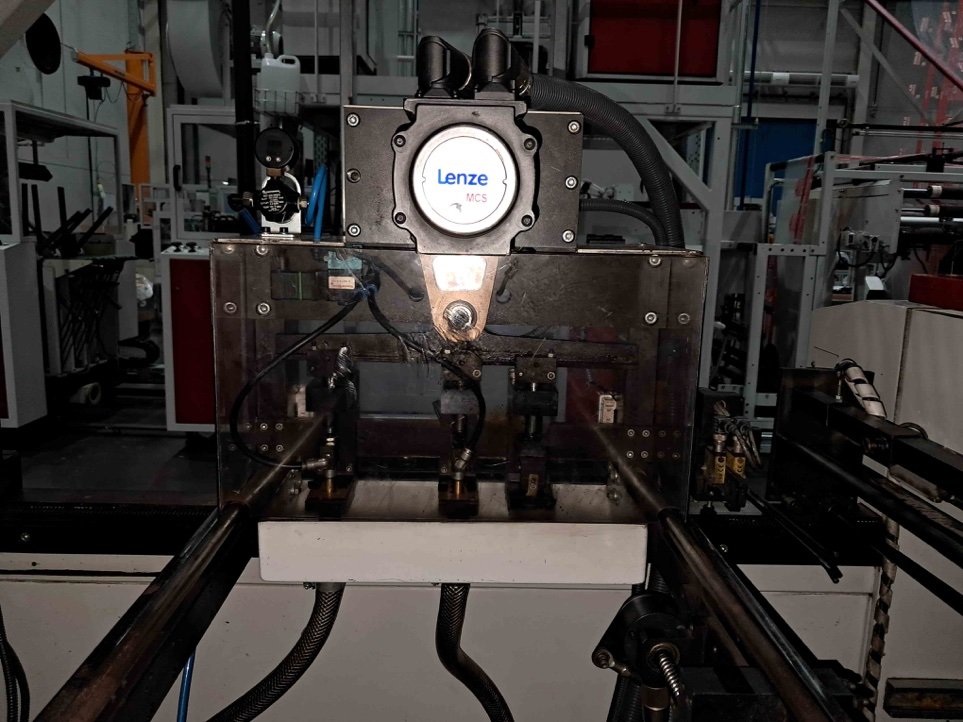

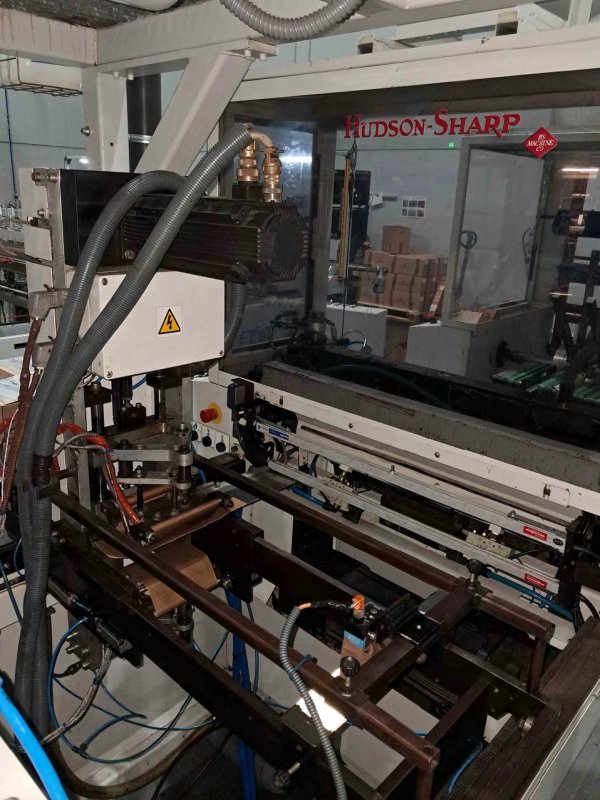

- SERVO DRIVEN CHEVRON SEAL DEVICE seal time adjustable in milliseconds upper and lower temperature adjustable
| Machine code | FI576 |
| Manufacturer | HUDSON SHARP |
| Modello | 5750W 390-H |
| Year | 2006 |
| Type of delivery | Wicketer) |
| Type of bags | Wicketers |
| Working width (mm) | 1370 |
| Bag length | max. 610mm, min.240mm |
| Bag width | max.390mm, min.110mm |
| Cycle / min | 120m/min |
| Unwinder | Shaftless, Electric powered and braked, VFAC surface driven, Unwind speed determined by position of compensator, Film tension can be adjusted between 0 and 1 Newton/Meter/Micron, Selection of the unwind direction via touch screen, Pneumatic reel lifting, Folding triangle on top 2, Motorised opening and closing of lifting arms, With ultrasonic BST centre guide, Light running bearings, End of reel and film break detection, For core dia of 76 and 152 mm max. roll diamterer 1000mm |
| Note | SERVO DRIVEN CHEVRON SEAL DEVICE seal time adjustable in milliseconds upper and lower temperature adjustable |
