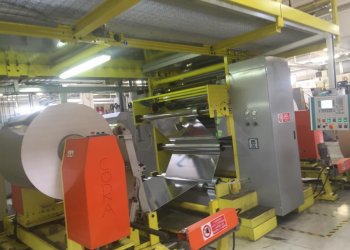

- Machine code
- LA220
- Manufacturer
- CML
- Year
- 2008
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1250
- Speed
- 150 mt/min

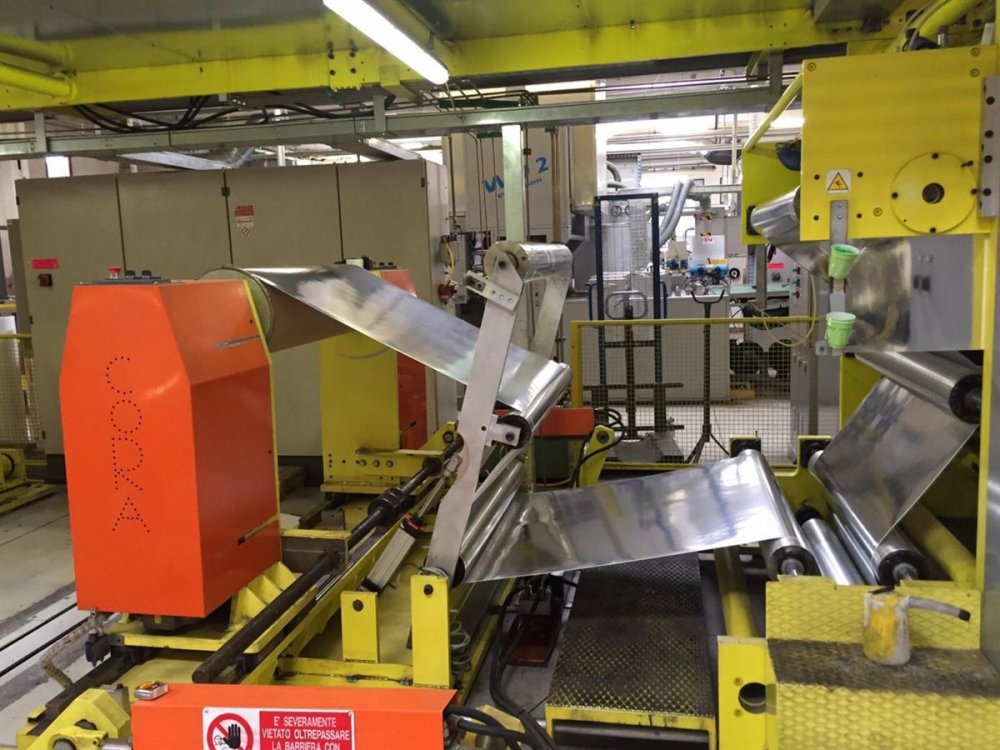

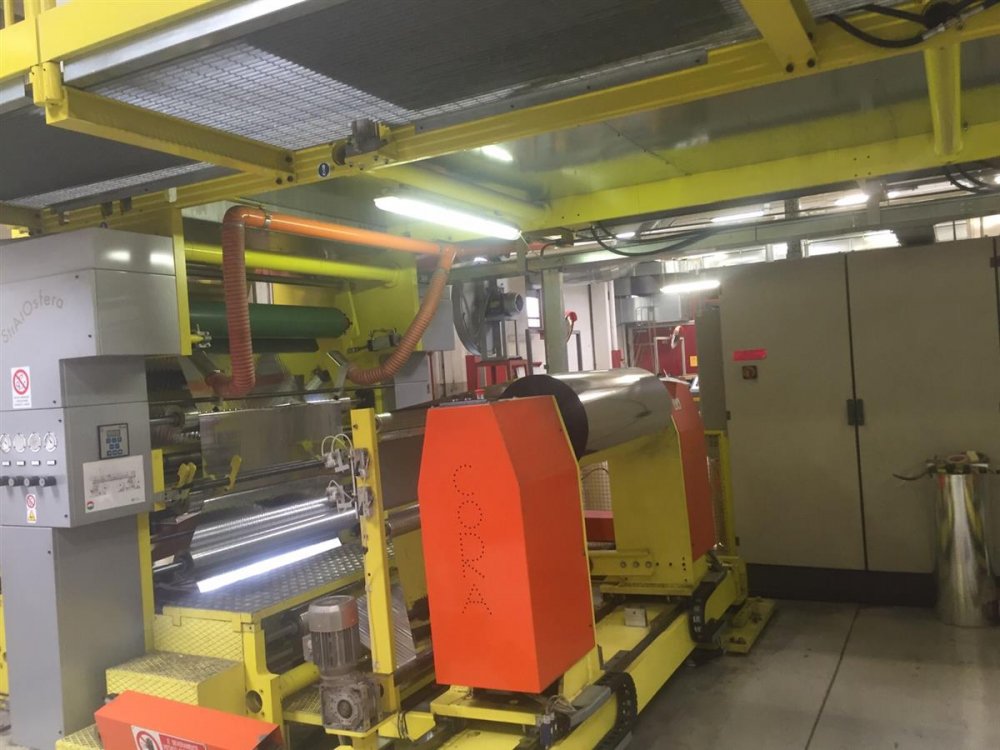

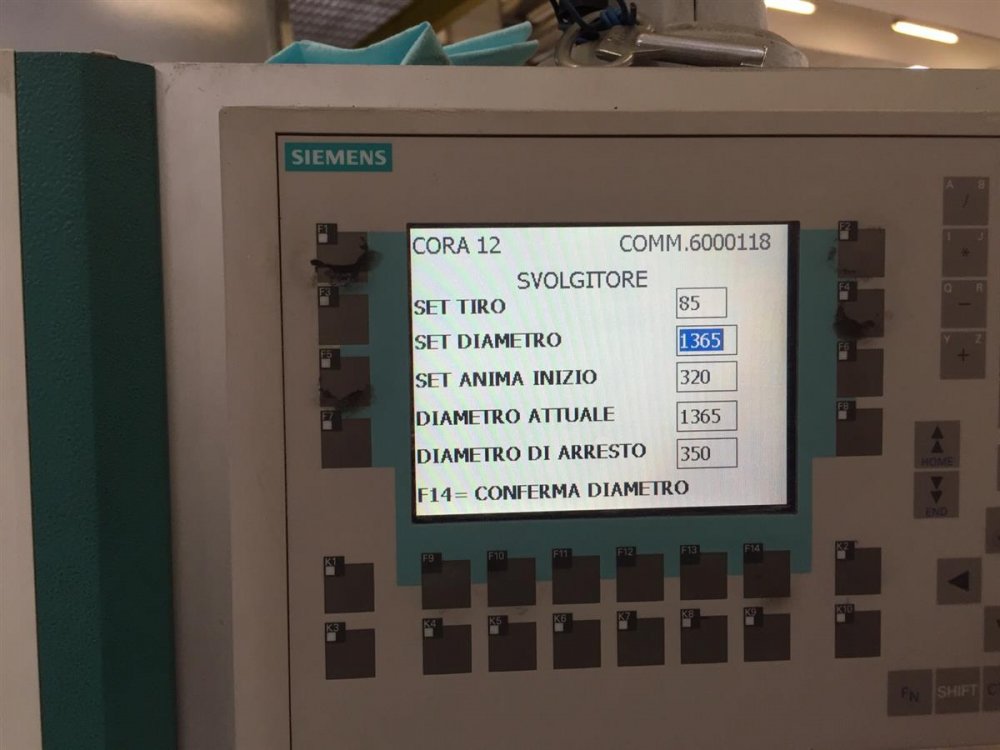

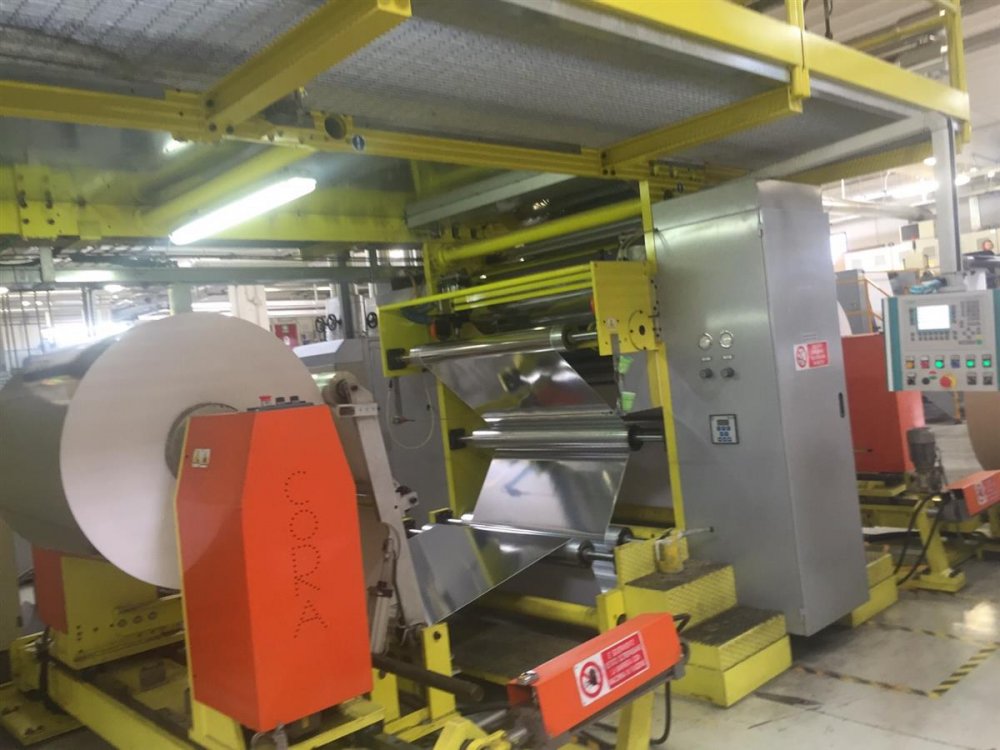

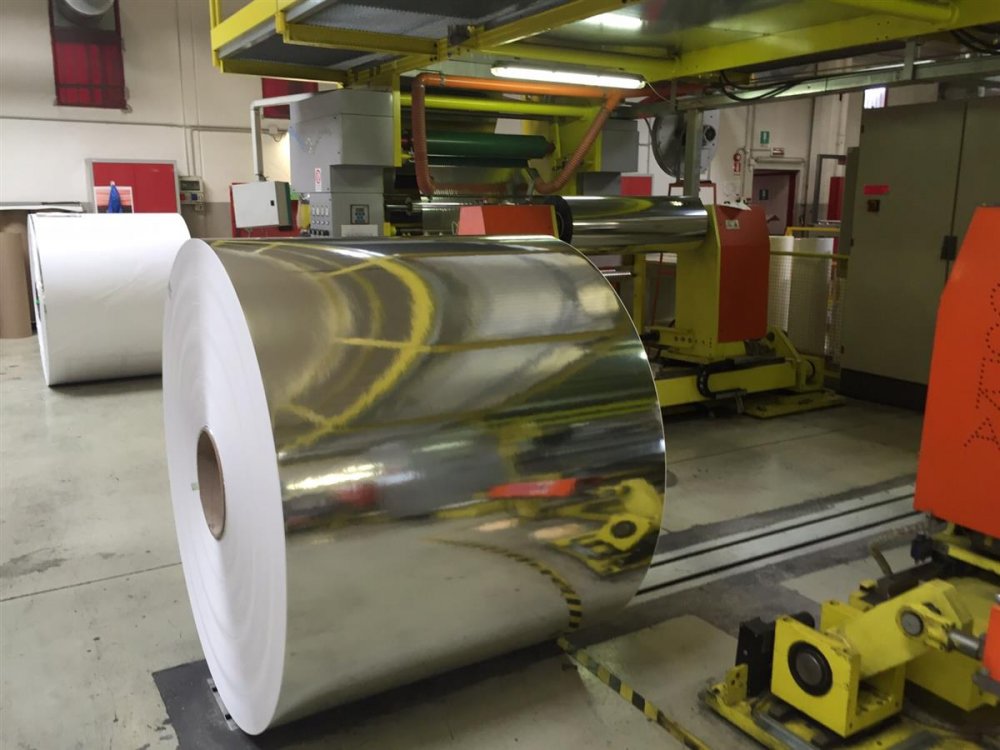

- First unwinder type
- Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” ;
- Max diameter reel unwinder
- 1500
- Secondary unwinder type
- Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12”
- Max diameter reel unwinder
- 1500
- Rewinder type
- Shaftless with reel unloading tofloor; ;In line slitting (edges) ; cores available 6” ; 12”
- Max diameter reel rewinder
- 1800

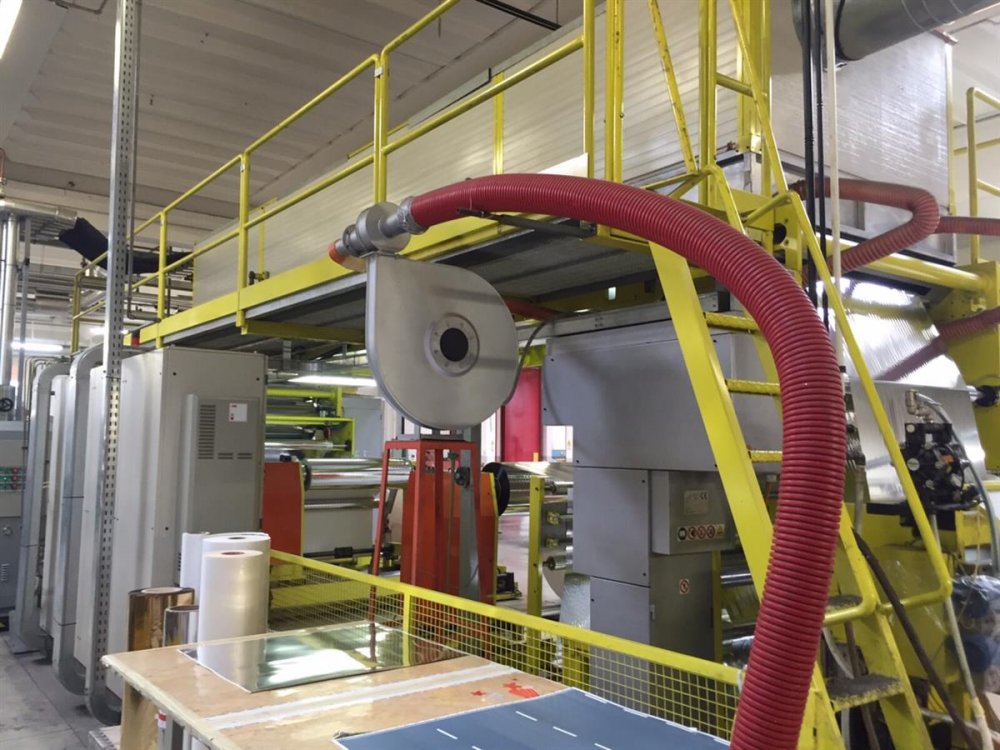

- Drying

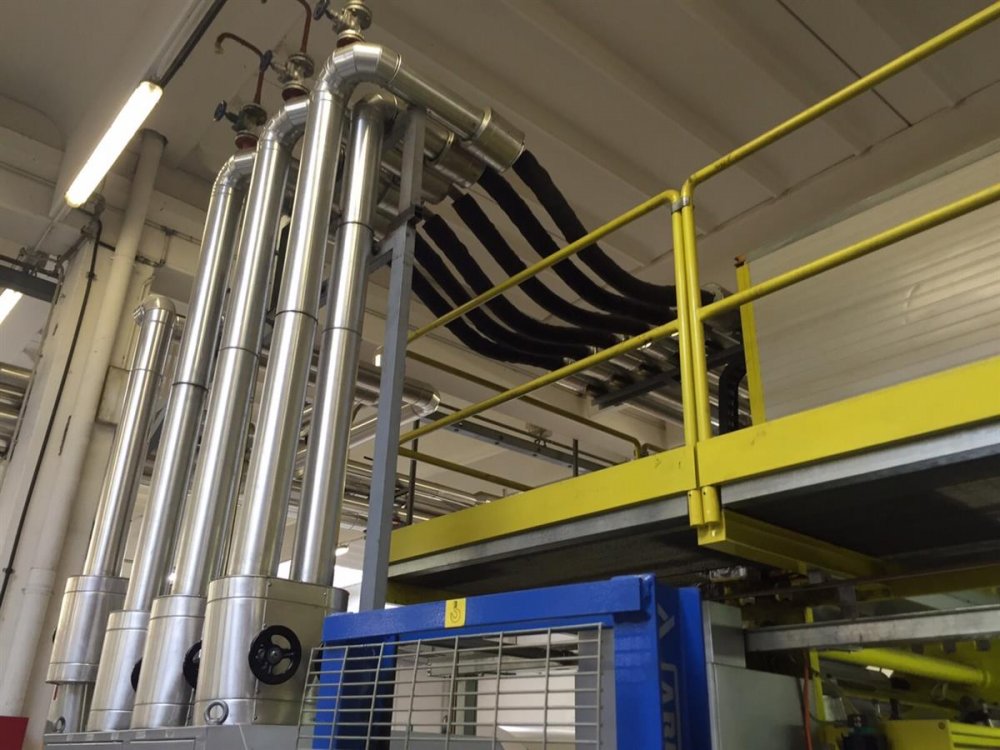

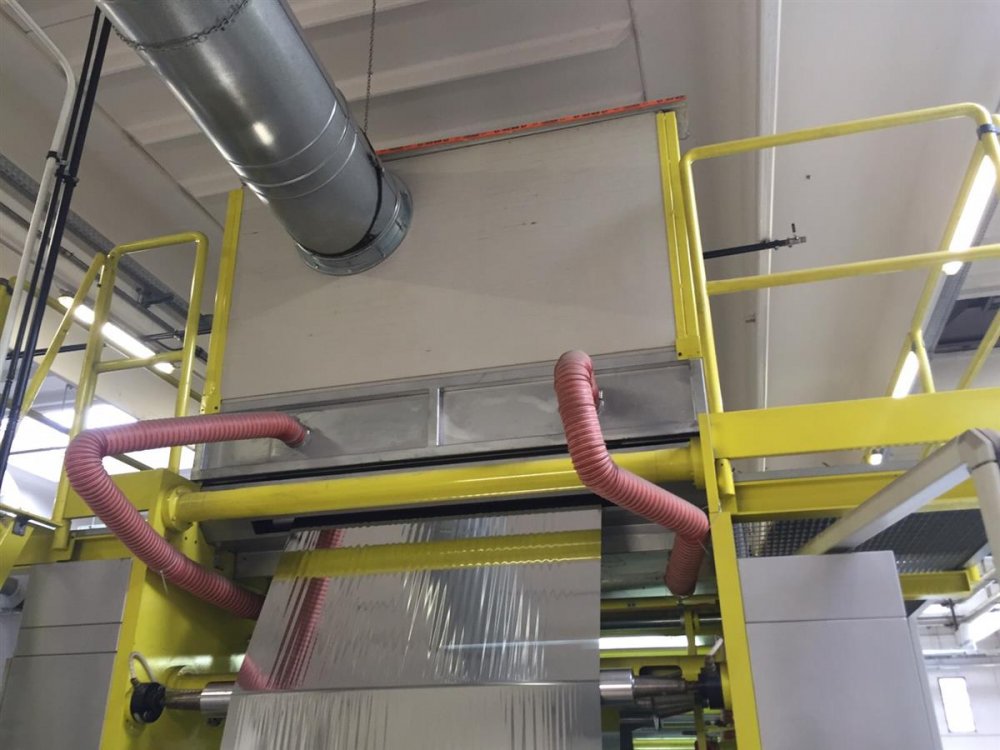

- Drying 8m drying length. 2 drying hoods with 4 blowers (2x inlet, and 2 outlet).All blower’s motors are under inverter, Heat source 2x thermal oil heaters;
- Note

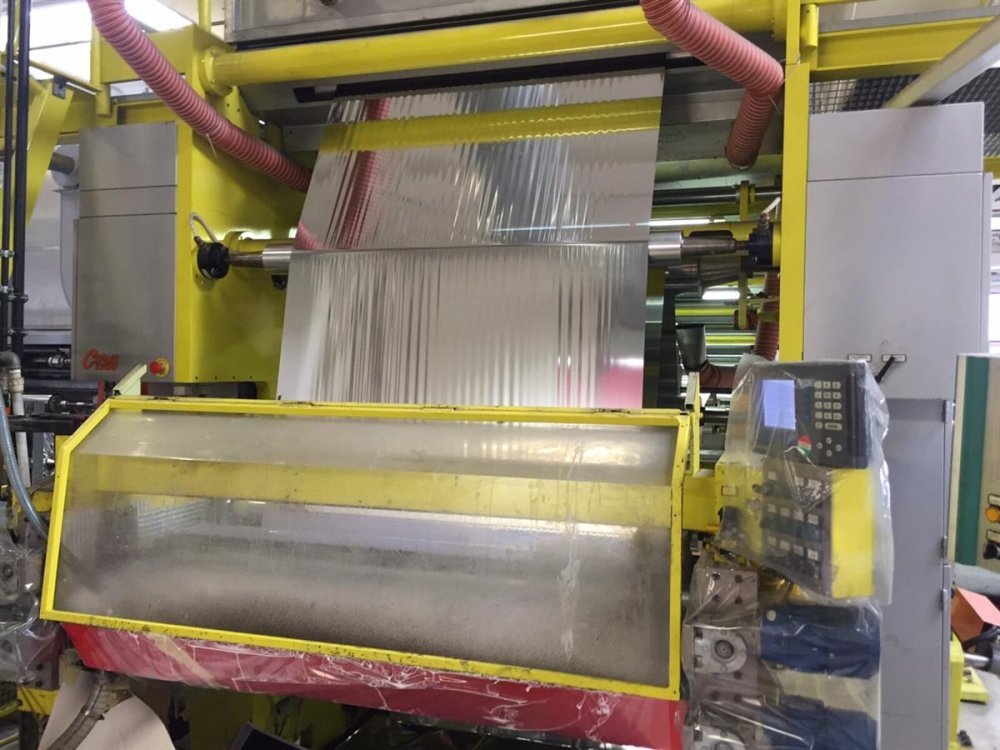

- Machine is with interchangable coating trolley (Combi) Machine is supplied with trolley for water based coatings. In case oF 2 components solventless glues is are required an additional trolley shall be purchased Unwi/Rew reel max weight 1600kg
| Machine code | LA220 |
| Manufacturer | CML |
| Year | 2008 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1250 |
| Speed | 150 mt/min |
| First unwinder type | Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” ; |
| Max diameter reel unwinder | 1500 |
| Secondary unwinder type | Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” |
| Max diameter reel unwinder | 1500 |
| Rewinder type | Shaftless with reel unloading tofloor; ;In line slitting (edges) ; cores available 6” ; 12” |
| Max diameter reel rewinder | 1800 |
| Drying | Drying 8m drying length. 2 drying hoods with 4 blowers (2x inlet, and 2 outlet).All blower’s motors are under inverter, Heat source 2x thermal oil heaters; |
| Note | Machine is with interchangable coating trolley (Combi) Machine is supplied with trolley for water based coatings. In case oF 2 components solventless glues is are required an additional trolley shall be purchased Unwi/Rew reel max weight 1600kg |
