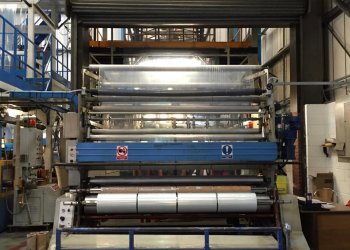

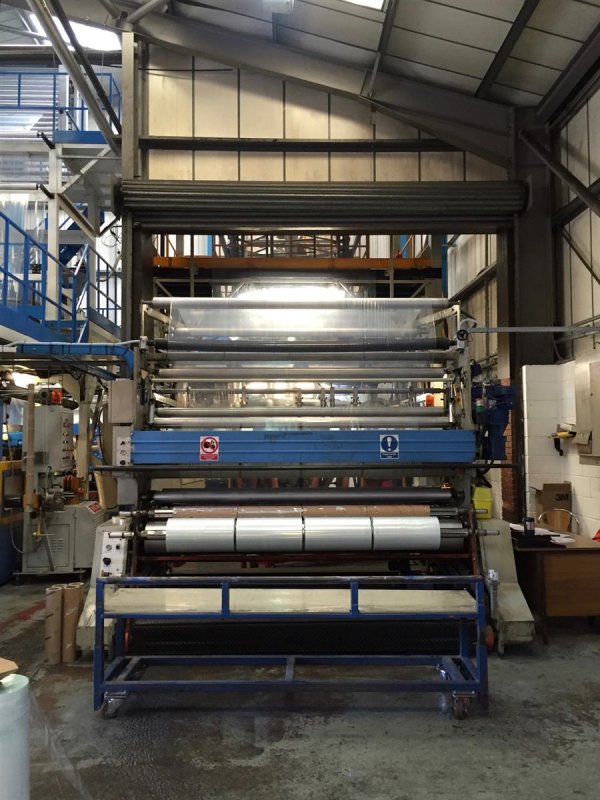

- Machine code
- EX517
- Manufacturer
- ZOCCHI
- Year
- 1999
- Number of layers
- 1
- Overhaul/renovation
- Extruder renovated on 2015. New Screws and Barrels
- Material
- STRETCH FILM, LDPE,LLDPE, SILAGE FILM
- Film Width
- 2400
- Output (Kg/h)
- 300/350 KG/H
- Description 1

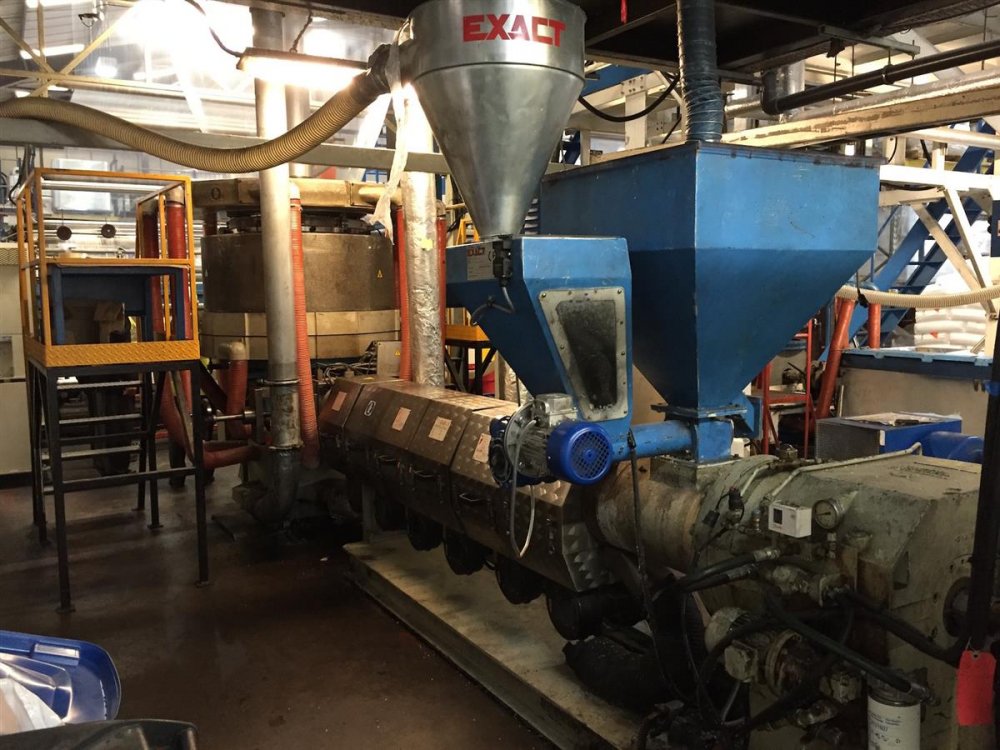

- Baumuller 168 KW CC Motors .Gravimetric Dosing Unit 4 component Maguire; Manual screen changer

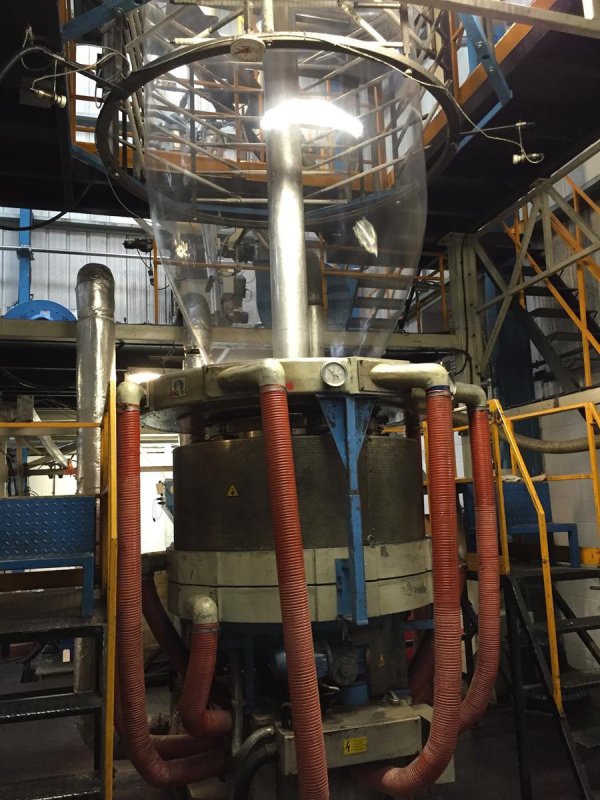

- Head description
- Rotating, IBC system

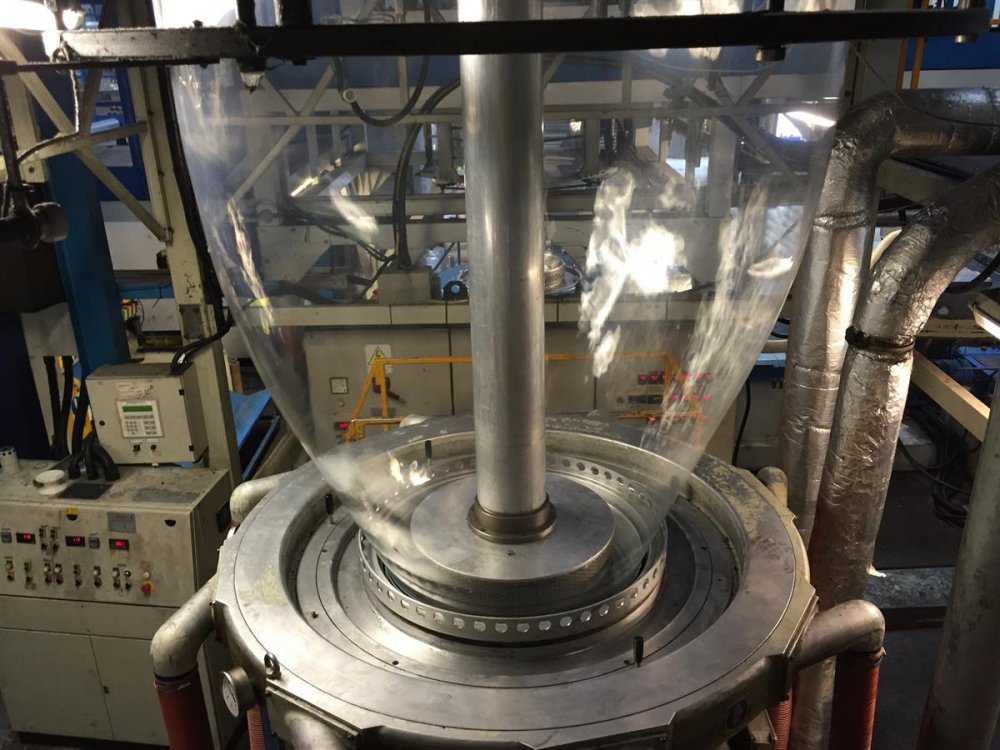

- Die diam (mm)
- 650mm
- Bubble cage
- Yes automatic
- Take off unit
- Fixed. useful width 2400mm

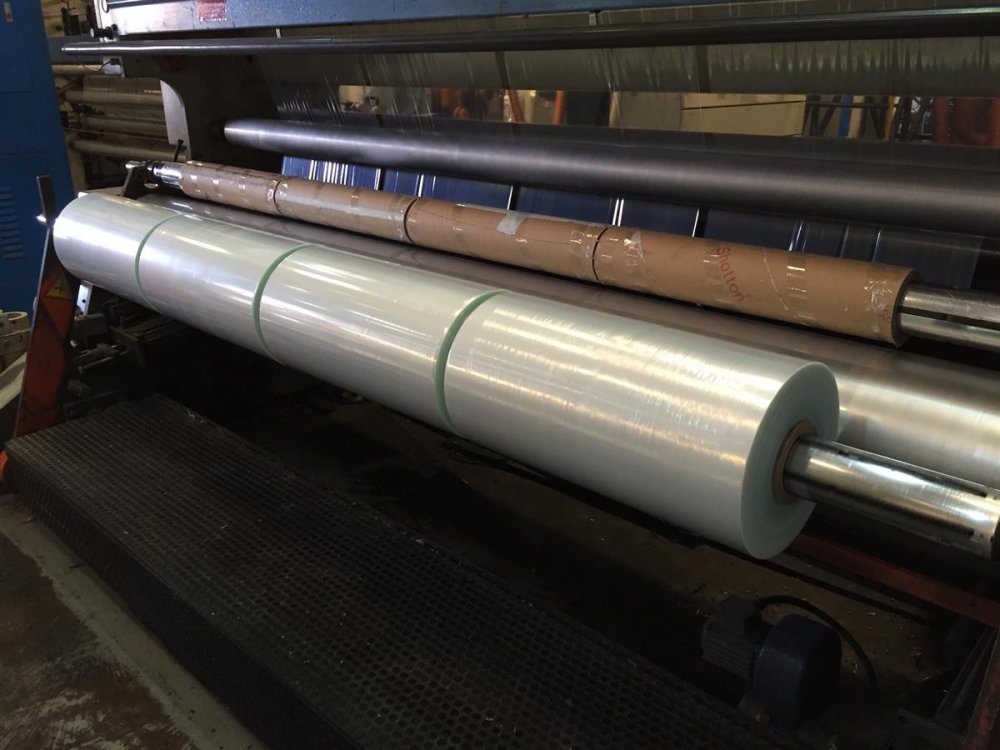

- Rewinder Type
- Double back to back
- Rewinder description
- Double station. Model 2500mm (useful width 2400mm)
- Note
- • N. 01 pressure and melt temperature transducers • Tower frame H= 8mt – Total Height of the Line: 10,2 mt • Air blower to include chiller boxes Max Line speed 60 Mt/min Thickness Range 16 – 150 micron depending on the resins used. Max Useful Width 2400mm (open 4800mm) - Min Useful Width 1500mm (open 3000mm)
| Machine code | EX517 |
| Manufacturer | ZOCCHI |
| Year | 1999 |
| Number of layers | 1 |
| Overhaul/renovation | Extruder renovated on 2015. New Screws and Barrels |
| Material | STRETCH FILM, LDPE,LLDPE, SILAGE FILM |
| Film Width | 2400 |
| Output (Kg/h) | 300/350 KG/H |
| Description 1 | Baumuller 168 KW CC Motors .Gravimetric Dosing Unit 4 component Maguire; Manual screen changer |
| Head description | Rotating, IBC system |
| Die diam (mm) | 650mm |
| Bubble cage | Yes automatic |
| Take off unit | Fixed. useful width 2400mm |
| Rewinder Type | Double back to back |
| Rewinder description | Double station. Model 2500mm (useful width 2400mm) |
| Note | • N. 01 pressure and melt temperature transducers • Tower frame H= 8mt – Total Height of the Line: 10,2 mt • Air blower to include chiller boxes Max Line speed 60 Mt/min Thickness Range 16 – 150 micron depending on the resins used. Max Useful Width 2400mm (open 4800mm) - Min Useful Width 1500mm (open 3000mm) |
GHIOLDI - BANDERA
-
Machine code: EX569
-
Year: 1990
-
Film Width: 1400
WINDMÖLLER & HÖLSCHER VAREX
-
Machine code: EX744
-
Year: 2002
-
Film Width: 2100
DOLCI fIL 700
-
Machine code: EX689
-
Year: 1990
-
Film Width: 3200
BIELLONI
-
Machine code: EX771
-
Year: 1998
-
Film Width: 2000
GHIOLDI
-
Machine code: EX745
-
Year: 1998
-
Film Width: 2000
