- Machine code
- CA247
- Manufacturer
- BETOL
- Year
- 1994
- Number of layers
- 7
- Film structure
- EDBBCAA ; EBBCDCA ; ACEDEBA
- Film width (mm)
- 650
- Output (Kg/h)
- 200
- Screw diam 1
- 60mm
- Description 1
- melt pump. 70 kg/h extruder output
- Screw diam 2
- 38mm
- Description 2
- 18 Kg/h extruder's output
- Screw diam 3
- 38mm
- Description 3
- 18 Kg/h extruder's output
- Screw diam 4
- 38mm
- Description 4
- 18 Kg/h extruder's output
- Screw diam 5
- 60mm
- Description 5
- melt pump. 70 kg/h extruder output

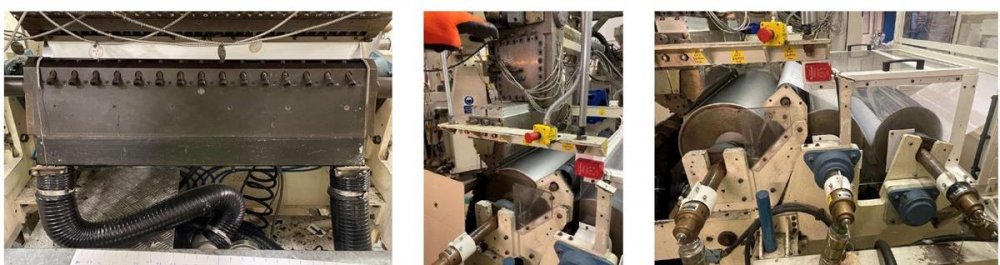

- Head description
- Cloeren die , gap 0,5-1,3mm, air knife
- Die width (mm)
- 800mm
- Chill roll unit
- 3 chill roll system ( 15-90° C ) Diameter chill roll 1, 2, 3 : 450, 350, 350(mm)
- Corona treatment
- Yes
- Rewinder max reel diameter (mm)
- 300mm
- Rewinder description
- turret
- Note
- Hoppers and pneumatic feeding system available Pipe design Scren changer
| Machine code | CA247 |
| Manufacturer | BETOL |
| Year | 1994 |
| Number of layers | 7 |
| Film structure | EDBBCAA ; EBBCDCA ; ACEDEBA |
| Film width (mm) | 650 |
| Output (Kg/h) | 200 |
| Screw diam 1 | 60mm |
| Description 1 | melt pump. 70 kg/h extruder output |
| Screw diam 2 | 38mm |
| Description 2 | 18 Kg/h extruder's output |
| Screw diam 3 | 38mm |
| Description 3 | 18 Kg/h extruder's output |
| Screw diam 4 | 38mm |
| Description 4 | 18 Kg/h extruder's output |
| Screw diam 5 | 60mm |
| Description 5 | melt pump. 70 kg/h extruder output |
| Head description | Cloeren die , gap 0,5-1,3mm, air knife |
| Die width (mm) | 800mm |
| Chill roll unit | 3 chill roll system ( 15-90° C ) Diameter chill roll 1, 2, 3 : 450, 350, 350(mm) |
| Corona treatment | Yes |
| Rewinder max reel diameter (mm) | 300mm |
| Rewinder description | turret |
| Note | Hoppers and pneumatic feeding system available Pipe design Scren changer |
