- Machine code
- CA154
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- FILMEX
- Year
- 2012
- Number of layers
- 9
- Material
- CPP and Barrier Film
- Film width (mm)
- 2400
- Speed (m/min)
- 350
- Output (Kg/h)
- 1000 gross

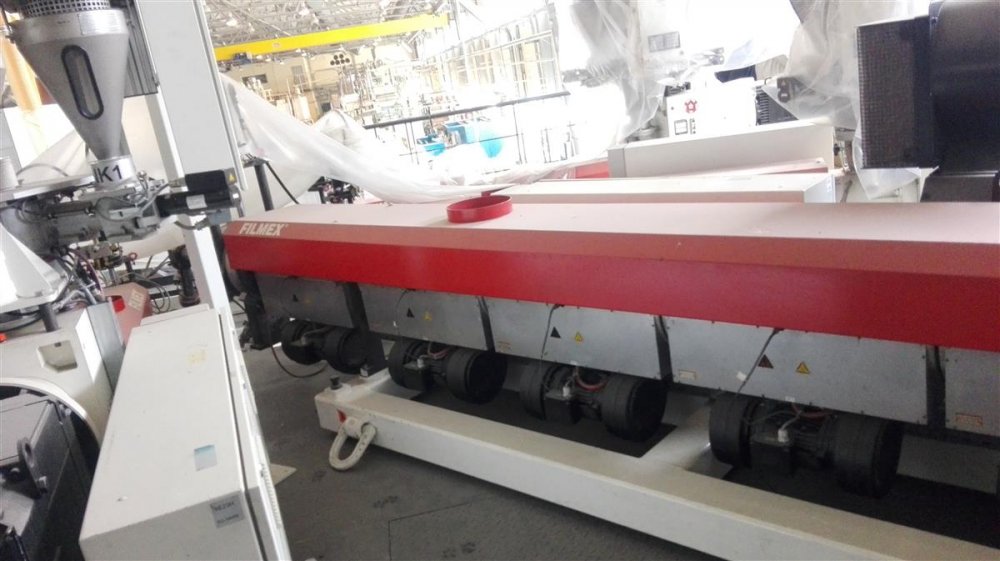

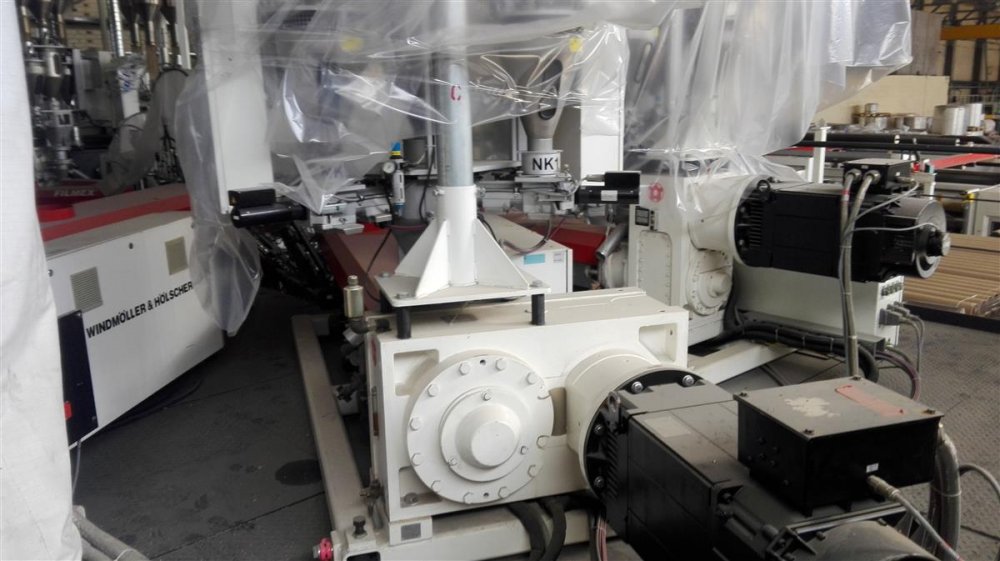

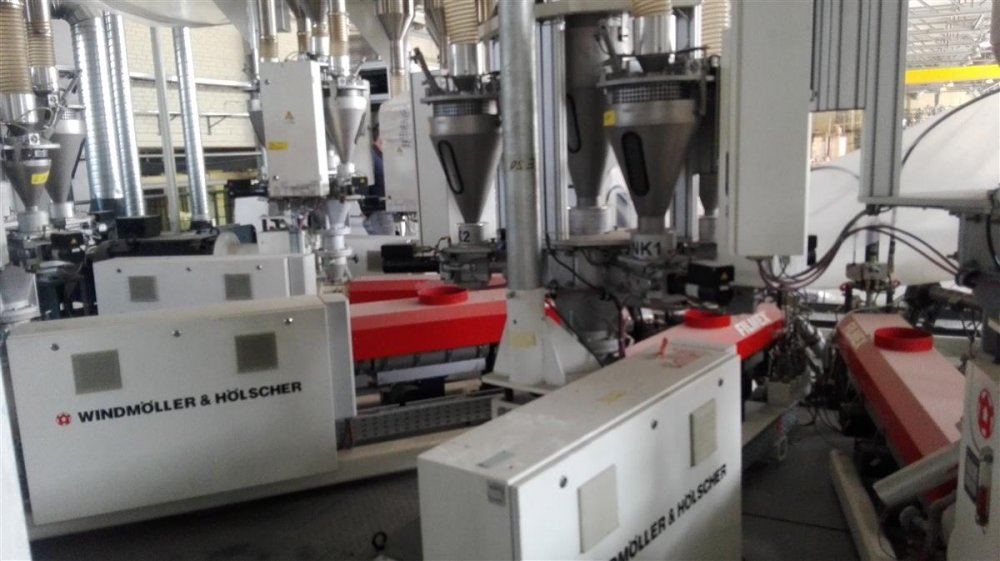

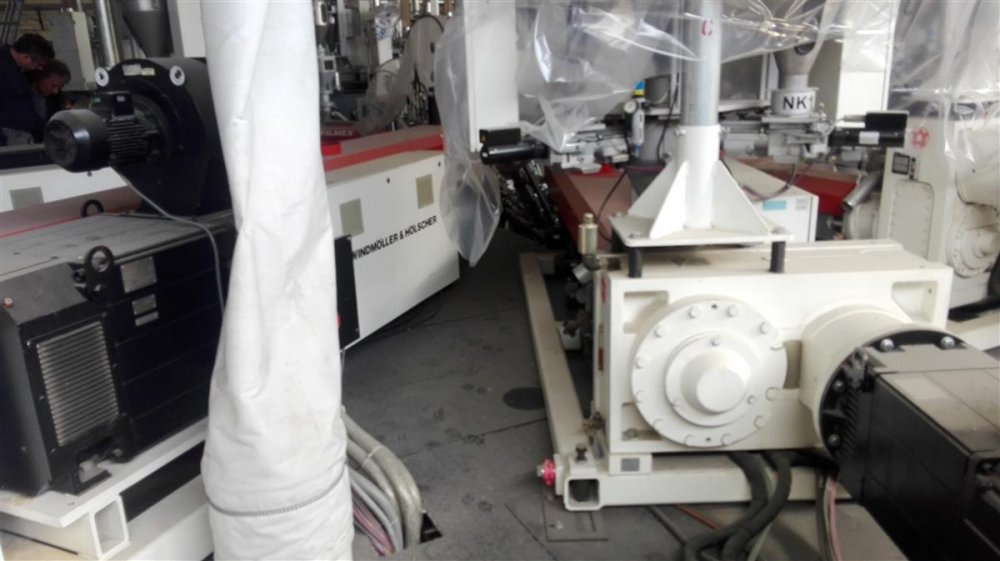

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 135
- Description 1
- FILMEX
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 90
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 90
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 70
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 60
- Extruder 6 Layer ref:
- F
- Screw diam 6
- 50
- Extruder 7 Layer ref:
- G
- Screw diam 7
- 50

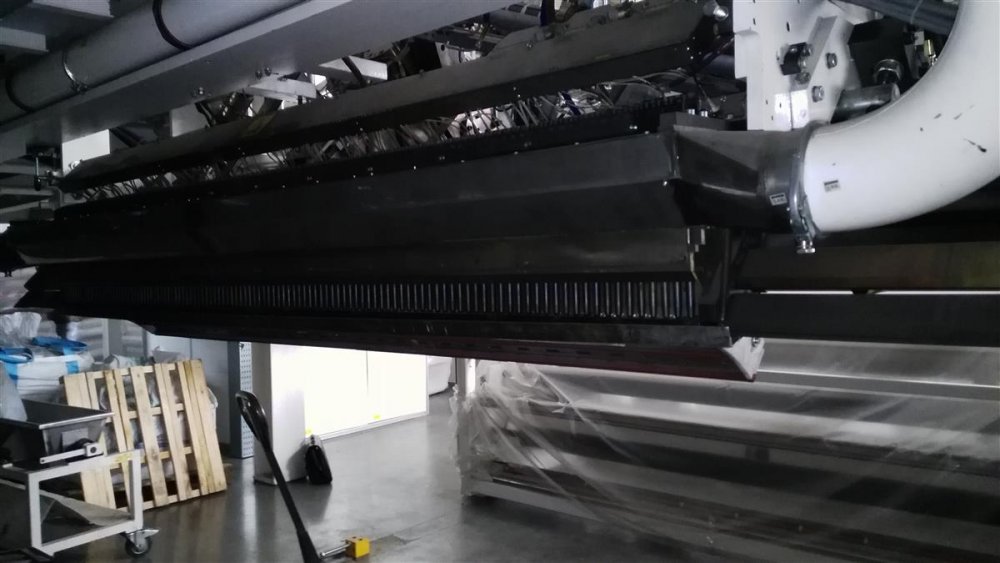

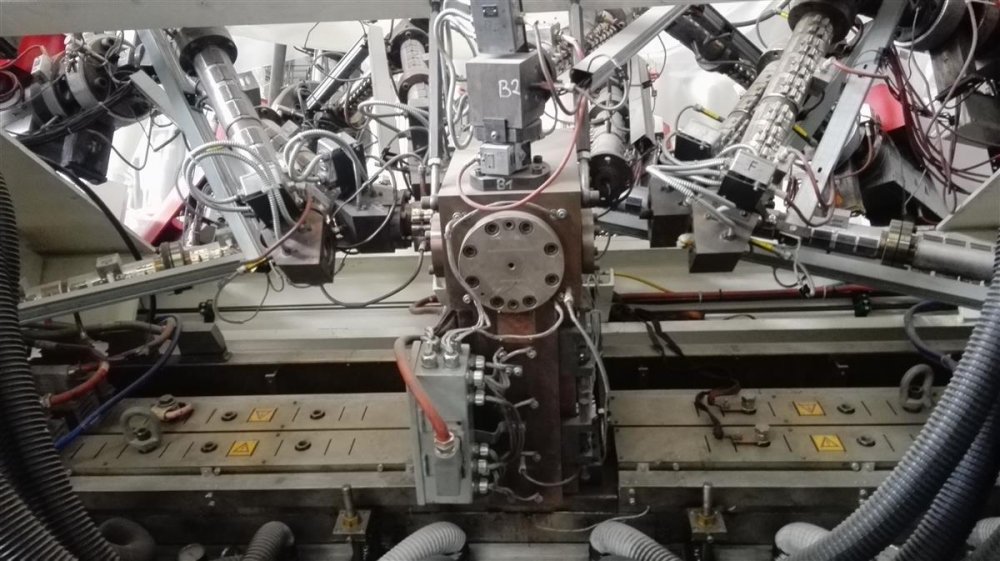

- Head description
- automatic die 2700 mm wide Coeren with feed block for 9 layers, dual chamber vacuum box , internal slot die deckling system with edge encapsulation
- Die width (mm)
- 2700

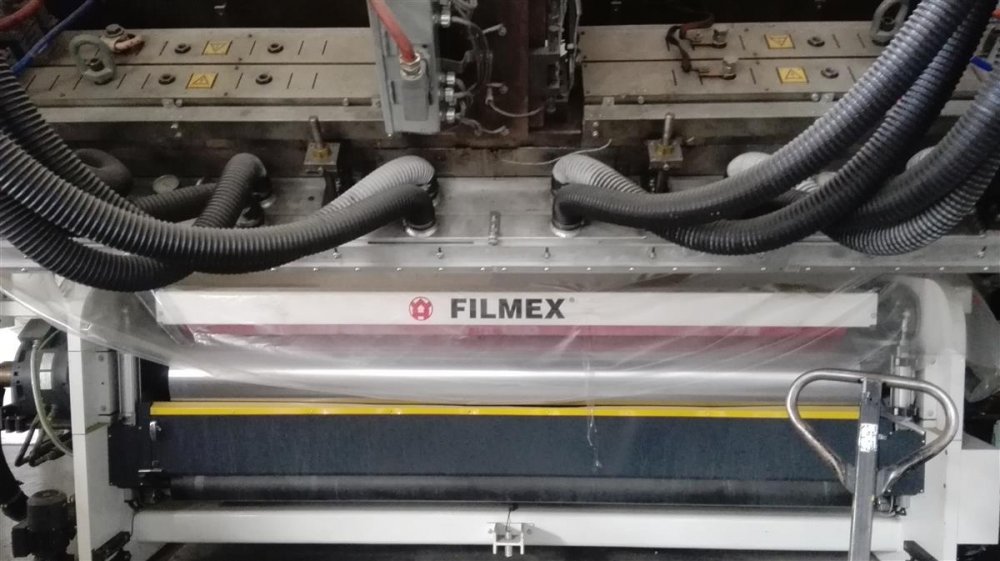

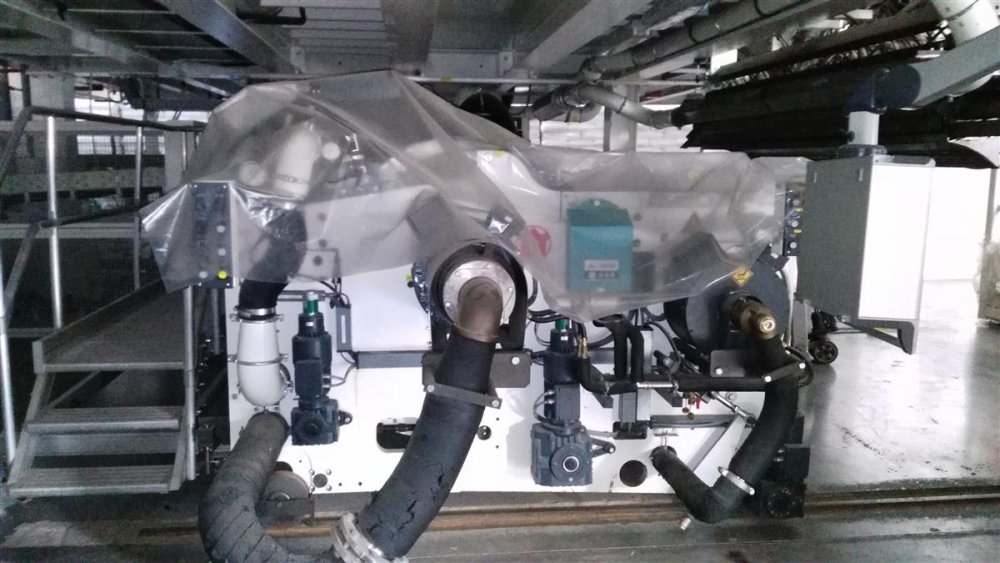

- Chill roll unit
- double chill roller , electrostatic edge stabilization pneumatic edge stabilization
- Thickness controll system
- Infrared thickness gauge NDC with additio nal infrared gauge
- Corona treatment
- Yes, for pre treatment

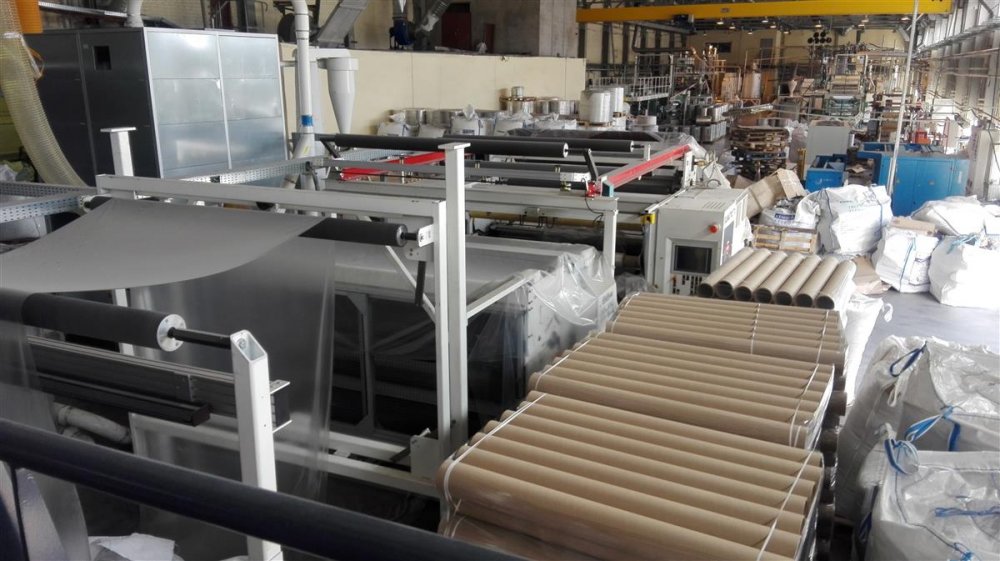

- Rewinder max reel diameter (mm)
- 1200
- Rewinder description
- Center driven
- Note
- Total electrical connected load: 1350 KVA Power: 400V/50Hz 1000 kw installed power
| Machine code | CA154 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | FILMEX |
| Year | 2012 |
| Number of layers | 9 |
| Material | CPP and Barrier Film |
| Film width (mm) | 2400 |
| Speed (m/min) | 350 |
| Output (Kg/h) | 1000 gross |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 135 |
| Description 1 | FILMEX |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 90 |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 90 |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 70 |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 60 |
| Extruder 6 Layer ref: | F |
| Screw diam 6 | 50 |
| Extruder 7 Layer ref: | G |
| Screw diam 7 | 50 |
| Head description | automatic die 2700 mm wide Coeren with feed block for 9 layers, dual chamber vacuum box , internal slot die deckling system with edge encapsulation |
| Die width (mm) | 2700 |
| Chill roll unit | double chill roller , electrostatic edge stabilization pneumatic edge stabilization |
| Thickness controll system | Infrared thickness gauge NDC with additio nal infrared gauge |
| Corona treatment | Yes, for pre treatment |
| Rewinder max reel diameter (mm) | 1200 |
| Rewinder description | Center driven |
| Note | Total electrical connected load: 1350 KVA Power: 400V/50Hz 1000 kw installed power |
