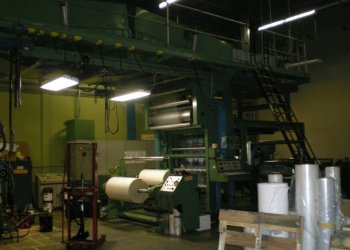

UTECO AMBER 808 Флексографской печатной машины 8 colors

Machine code
FL596
Manufacturer
UTECO
Model
AMBER 808
Year
1994
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
No
Web width (mm)
1550
Print width (mm)
1500
Min print repeat (mm)
320
Max print repeat (mm)
800
Unwinder type
Semi automatic drop splice
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic with blade slitting device.
Max reel diameter rewinder (mm)
800
Drying
2 Gas burners 200.000 K/cal.
Web guides
2 FIFE
Anilox
16
Print cylinders
as follows: 8x14.5; 10x15,5; 9x16,5; 8x17,75; 8x18,5; 8x19, 9x19,25; 8x20; 1x21,25; 8x21,5; 6x22; 8x22,75; 8x23,5; 9x25; 8x26; 8x26.75; 8x27; 8x28,25 mm
Additional information
Material: LDPE Total plate thickness: 3,25 mm (stickyback included) Mechanical speed: 250 /min 8 electric pumps with tanks, 8 ink trays, 8 new doctor chambers and blade system of last generation. Unwind and rewind rebuilt in 2008, new gears, hydraulics, new main motor.
Machine code FL596
Manufacturer UTECO
Model AMBER 808
Year 1994
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change No
Web width (mm) 1550
Print width (mm) 1500
Min print repeat (mm) 320
Max print repeat (mm) 800
Unwinder type Semi automatic drop splice
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic with blade slitting device.
Max reel diameter rewinder (mm) 800
Drying 2 Gas burners 200.000 K/cal.
Web guides 2 FIFE
Anilox 16
Print cylinders as follows: 8x14.5; 10x15,5; 9x16,5; 8x17,75; 8x18,5; 8x19, 9x19,25; 8x20; 1x21,25; 8x21,5; 6x22; 8x22,75; 8x23,5; 9x25; 8x26; 8x26.75; 8x27; 8x28,25 mm
Additional information Material: LDPE Total plate thickness: 3,25 mm (stickyback included) Mechanical speed: 250 /min 8 electric pumps with tanks, 8 ink trays, 8 new doctor chambers and blade system of last generation. Unwind and rewind rebuilt in 2008, new gears, hydraulics, new main motor.
