- Machine code
- FL1186
- Manufacturer
- FISCHER & KRECKE
- Modello
- 16S-10k
- Year
- 2005
- Number of colors
- 10
- Overhaul/renovation
- In 2022: New Main OCS Computer New Valve Island for CI New Valve Island for Winder & Rewinder Spare Rexroth motors for: Printing shaft Anilox roller Two carbon printing shafts included
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1100
- Print width (mm)
- 1050
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 750

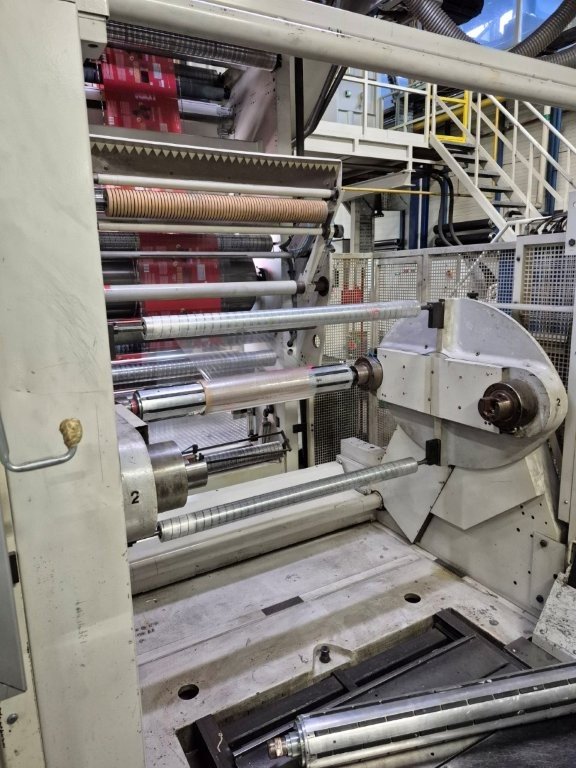

- Unwinder type
- Turret non stop
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Double Unwinding Shaft with Dancing Rollers
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
- Videocamera
- BST IPQ Print Control / View System Latest-generation inspection & print monitoring technology. (installed in 2023)
- Inking system
- Closed chamber doctor blades and pneumatic ink pumps
| Machine code | FL1186 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 16S-10k |
| Year | 2005 |
| Number of colors | 10 |
| Overhaul/renovation | In 2022: New Main OCS Computer New Valve Island for CI New Valve Island for Winder & Rewinder Spare Rexroth motors for: Printing shaft Anilox roller Two carbon printing shafts included |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1100 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 750 |
| Unwinder type | Turret non stop |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Double Unwinding Shaft with Dancing Rollers |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners |
| Videocamera | BST IPQ Print Control / View System Latest-generation inspection & print monitoring technology. (installed in 2023) |
| Inking system | Closed chamber doctor blades and pneumatic ink pumps |
