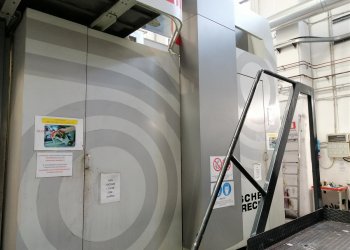

FISCHER & KRECKE FP15 S Флексографской печатной машины 8 colors

Machine code
FL896
Manufacturer
FISCHER & KRECKE
Model
FP15 S
Year
2012
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
380
Max print repeat (mm)
800
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans 2 gas burners
Videocamera
yes
Web guides
Yes in and out
Vyscosity control
yes automatic by Selectra
Washing system
yes
Inking system
Closed chamber doctor blades
Anilox
16 ceramic anilox sleeves : 5x 420 L/cm-vol.4,5 ; 1x 225 L/cm- vol.6 ; 1x 200 L/cm-vol.6 ; 3x 200 L/cm-vol.8; 1x 180 L/cm-vol.9; 2x 110 L/cm-vol.12 ; 2 x 80 L/cm-vol.15 ; 1x 60 L7cm.vol.18;
Print Sleeves
256 print sleeves , 8 for each repeat as follwos: 370, 380, 390, 400,410, 420, 430 , 440 , 450, 460 , 470 , 480 , 490 , 500 , 510 , 520, 530 , 540, 550 , 560, 570, 580, 600 , 620 , 630, 640 , 660, 700, 720, 760
Additional information
AUTO REGISTER SYSTEM AND PRINT SET UP with GPS system
Machine code FL896
Manufacturer FISCHER & KRECKE
Model FP15 S
Year 2012
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans 2 gas burners
Videocamera yes
Web guides Yes in and out
Vyscosity control yes automatic by Selectra
Washing system yes
Inking system Closed chamber doctor blades
Anilox 16 ceramic anilox sleeves : 5x 420 L/cm-vol.4,5 ; 1x 225 L/cm- vol.6 ; 1x 200 L/cm-vol.6 ; 3x 200 L/cm-vol.8; 1x 180 L/cm-vol.9; 2x 110 L/cm-vol.12 ; 2 x 80 L/cm-vol.15 ; 1x 60 L7cm.vol.18;
Print Sleeves 256 print sleeves , 8 for each repeat as follwos: 370, 380, 390, 400,410, 420, 430 , 440 , 450, 460 , 470 , 480 , 490 , 500 , 510 , 520, 530 , 540, 550 , 560, 570, 580, 600 , 620 , 630, 640 , 660, 700, 720, 760
Additional information AUTO REGISTER SYSTEM AND PRINT SET UP with GPS system
** SOLD **
