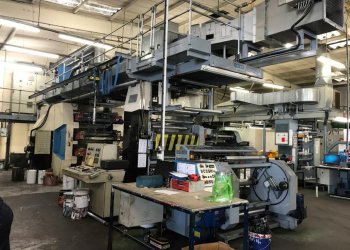

OFEM JULIETTE 758 Флексографской печатной машины 8 colors // Flexo CI // Printing machines // Б/у оборудование // Tecno Converting 2000 S.r.l.

** SOLD **

Фотогалерея

Machine code: FL773
Manufacturer: OFEM
Modello: JULIETTE 758
Year: 2000
Number of colors: 8
Print possibilityes: 8+0.
Gearless: No
Fast sleeve change: Yes
Computer supervision: Yes
Web width (mm): 1070
Print width (mm): 1000
Min print repeat (mm): 300
Max print repeat (mm): 750
Unwinder type: Double spindle turret flying splice
Max reel diameter unwinder (mm): 800
Rewinder type: Double spindle turret flying splice
Max reel diameter rewinder (mm): 800
Drying: Gas burner.
Inking system: solvent based. .8 ink pumps.Enclosed doctor blade chambers with ceramic anilox rollers
Anilox: 8 anilox ceramic coated and laser engraved.
Note: Substrates able to process:Plastic films Maximum speed :200 m./min. Bull-gear, pitch 5 mm. Edge guide systems:1 before printing and 1 before rewinding Length registers :Motorized remote controlled. Side registers:Manual. Decks’ positioning system:Automatic. Locking system of the printing units:Automatic.

Machine code	FL773
Manufacturer	OFEM
Modello	JULIETTE 758
Year	2000
Number of colors	8
Print possibilityes	8+0.
Gearless	No
Fast sleeve change	Yes
Computer supervision	Yes
Web width (mm)	1070
Print width (mm)	1000
Min print repeat (mm)	300
Max print repeat (mm)	750
Unwinder type	Double spindle turret flying splice
Max reel diameter unwinder (mm)	800
Rewinder type	Double spindle turret flying splice
Max reel diameter rewinder (mm)	800
Drying	Gas burner.
Inking system	solvent based. .8 ink pumps.Enclosed doctor blade chambers with ceramic anilox rollers
Anilox	8 anilox ceramic coated and laser engraved.
Note	Substrates able to process:Plastic films Maximum speed :200 m./min. Bull-gear, pitch 5 mm. Edge guide systems:1 before printing and 1 before rewinding Length registers :Motorized remote controlled. Side registers:Manual. Decks’ positioning system:Automatic. Locking system of the printing units:Automatic.
