- Machine code
- FL0739
- Manufacturer
- BOBST FISCHER & KRECKE
- Modello
- FK 20 / 6 CS
- Year
- 2015

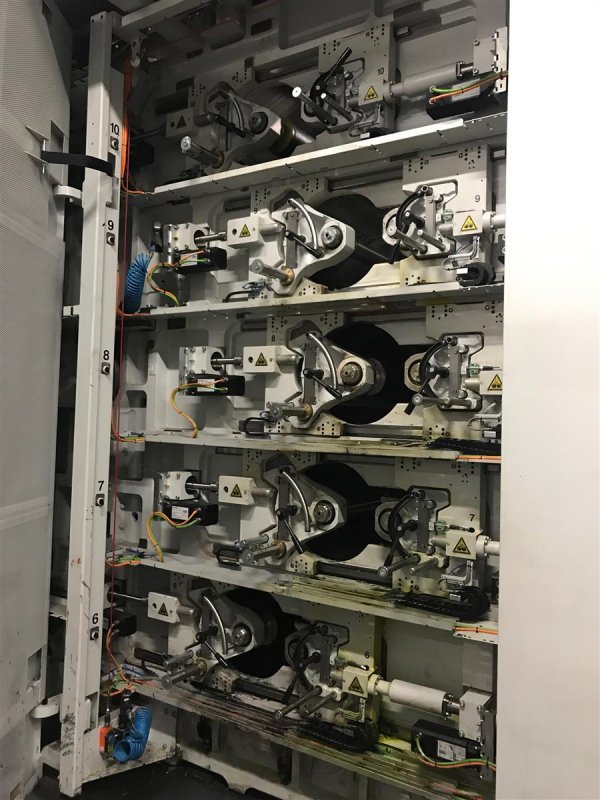

- Number of colors
- 10
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

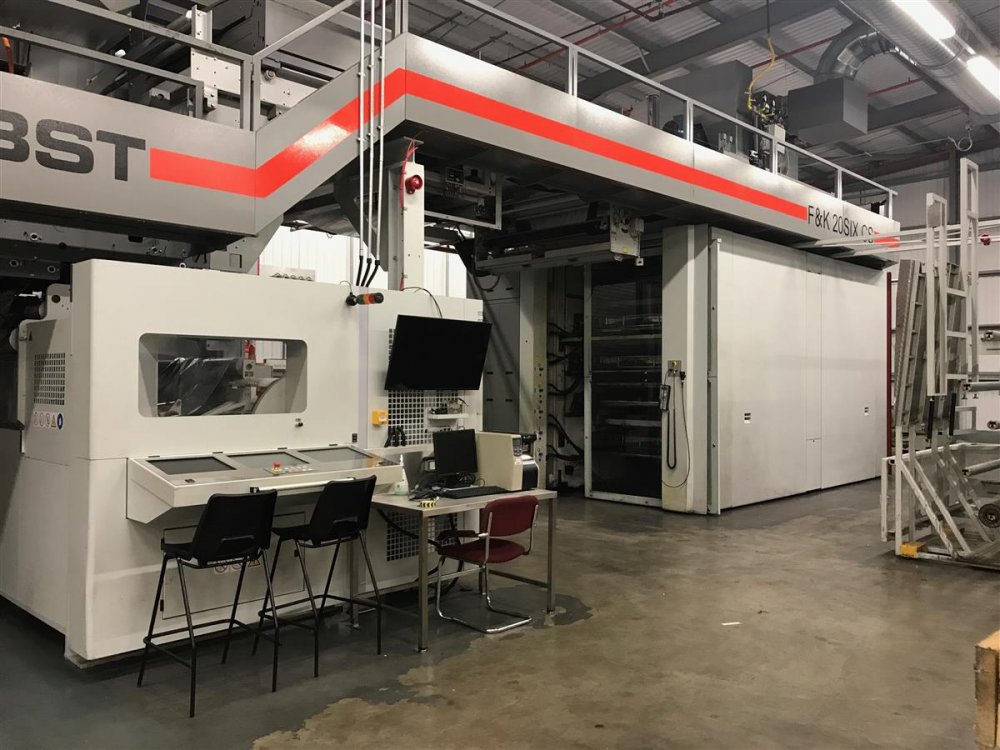

- Computer supervision
- Yes
- Web width (mm)
- 1700
- Print width (mm)
- 1650
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 1200
- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000

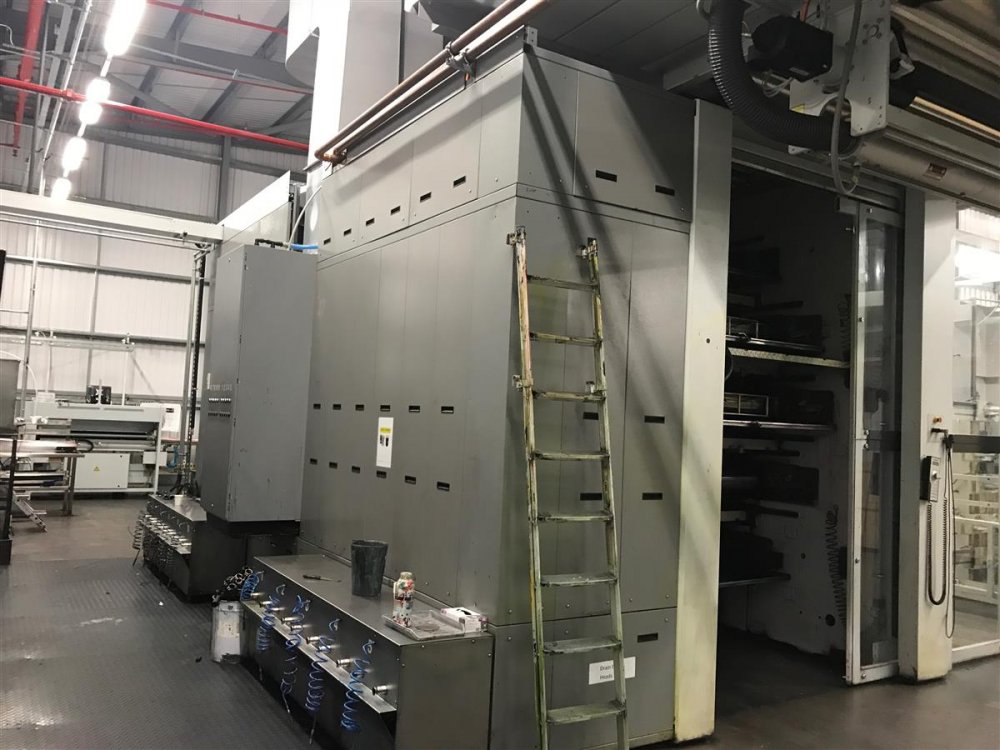

- Drying
- 2 ZONES 2 GAS BURNERS 4 FANS 6 mt tunnel, Automtic air recirculation system with LEL control

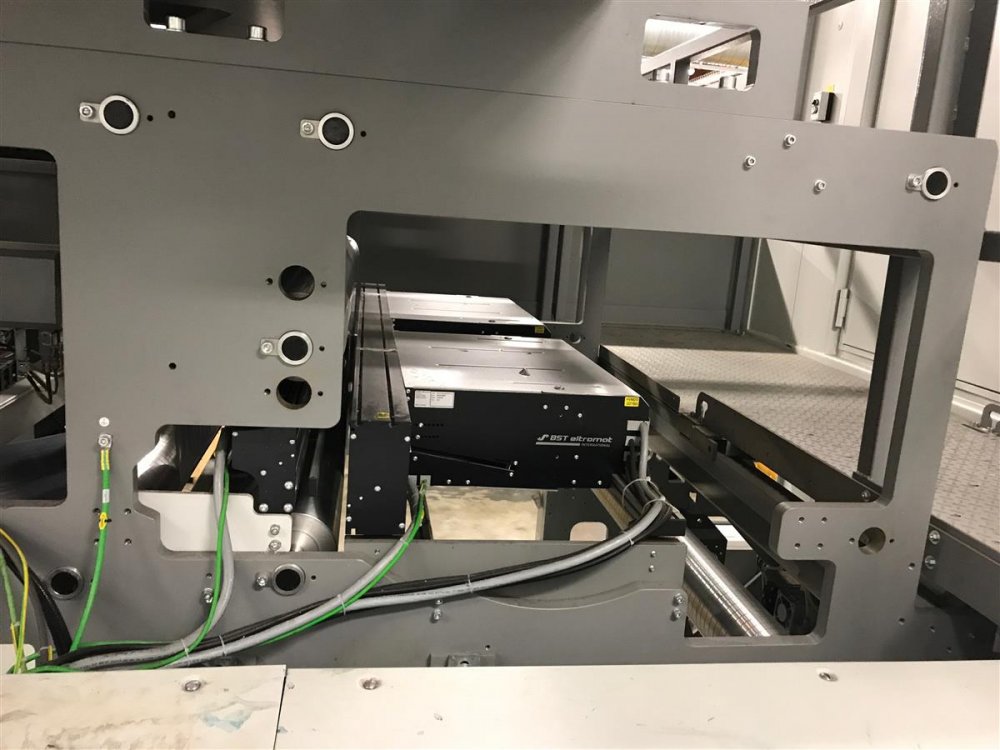

- Videocamera
- Eltromat high resolution camera; Eltromat 100% inspection system

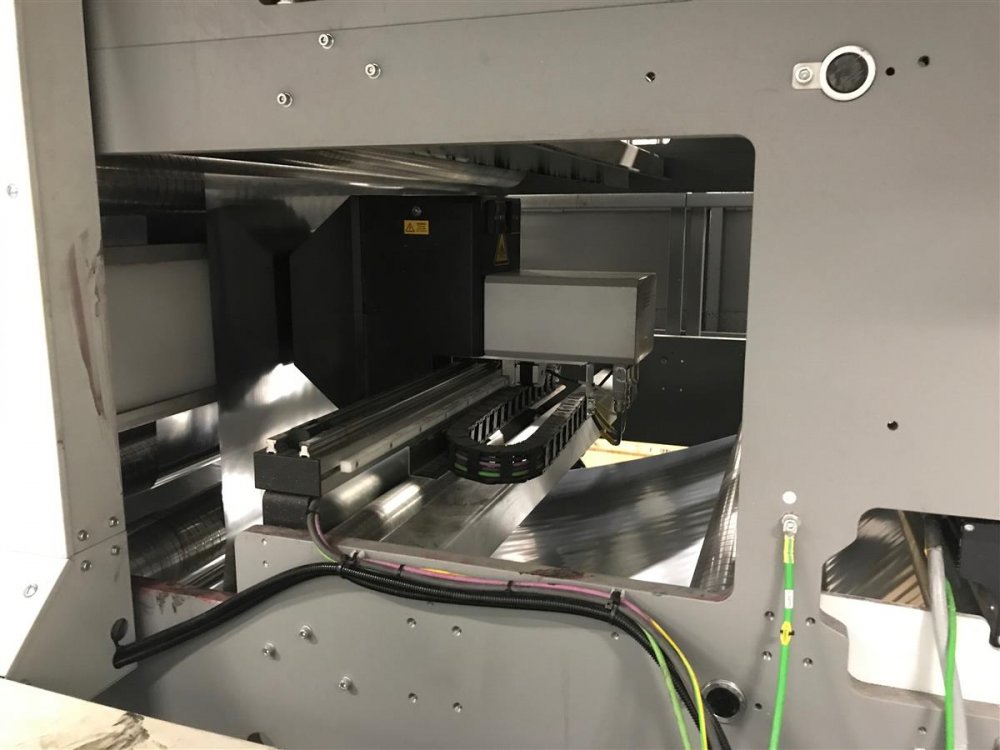

- Corona treatment
- MERO Web MR/B10K0P3IGBT
- Web guides
- yes
- Vyscosity control
- Automatic
- Washing system
- Automatic
- Inking system
- closed chamber doctor blades
- Anilox
- 34 ceramic anilox sleeves engraving between 80 lines / cm and 480 lines / cm DIam .mm 200,54, width 1730 1x 80 L/cm-Vol16 cm3/mq ; 1x 80 L/cm- Vol.14 ; 1x 100 L/cm-vol.18 ¸1x 140 L/cm- vol.12; 1x 200 L/cm-vol.10; 2x 200 L/cm-vol.9 ; 1x 200 L/cm- vol.4,9 ; 1x 220 L/cm-vol.9 ; 1x 260 L/cm-vol.7,5; 1x 300 L/cm-vol.6,5 ; 7x 360 L/cm-vol.5 ; 1x 360 L/cm- vol.6; 2x 400 L/cm-vol.5; 1x 400 L/cm-vol.5,7 ; 4x 400 L/cm-vol.3,5; 2x 400 L/cm-vol.2,7 ; 1x 400 L/cm- vol.3; 2x 480 L/cm-vol.2,5 ; 2x 480 L/cm-vol.3,8 ; 1x 490 L/cm-vol.4,65

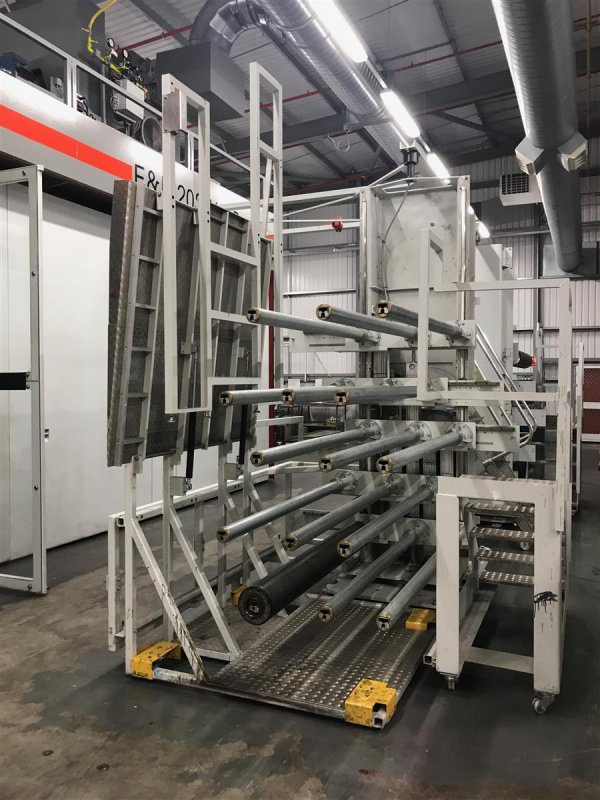

- Print Sleeves
- approx 220, many with GPS chip as follows 8x 600 mm ; 8x 610 mm ; 5x 620mm ; 18x 640 mm ; 5x 650 mm ; 21x 660 mm ; 5x 675 mm; 14x 680mm ; 9x 690mm ; 12x 700 mm ; 18x 720 mm ; 5x 725 mm ; 6x 740 mm ; 15x 760 mm ; 5x 765 mm.; 5x 735 m ; , 5x 750 mm ; 20 x 780 mm ; 9x 800mm ;8x 810 mm ; 9x 840mm ; 8x 860 mm, 5x 870 mm ; 8x 880 mm
- Note

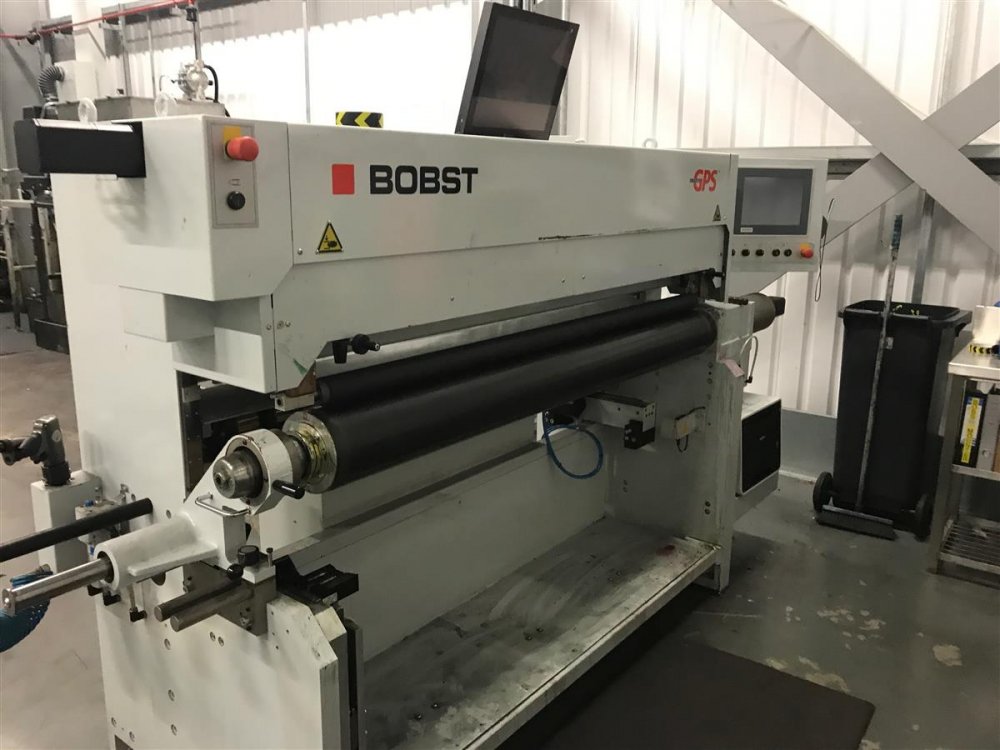

- SMART GPS SYSTEM COMMISSIONED IN 2016 IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection
| Machine code | FL0739 |
| Manufacturer | BOBST FISCHER & KRECKE |
| Modello | FK 20 / 6 CS |
| Year | 2015 |
| Number of colors | 10 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1700 |
| Print width (mm) | 1650 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 1200 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 ZONES 2 GAS BURNERS 4 FANS 6 mt tunnel, Automtic air recirculation system with LEL control |
| Videocamera | Eltromat high resolution camera; Eltromat 100% inspection system |
| Corona treatment | MERO Web MR/B10K0P3IGBT |
| Web guides | yes |
| Vyscosity control | Automatic |
| Washing system | Automatic |
| Inking system | closed chamber doctor blades |
| Anilox | 34 ceramic anilox sleeves engraving between 80 lines / cm and 480 lines / cm DIam .mm 200,54, width 1730 1x 80 L/cm-Vol16 cm3/mq ; 1x 80 L/cm- Vol.14 ; 1x 100 L/cm-vol.18 ¸1x 140 L/cm- vol.12; 1x 200 L/cm-vol.10; 2x 200 L/cm-vol.9 ; 1x 200 L/cm- vol.4,9 ; 1x 220 L/cm-vol.9 ; 1x 260 L/cm-vol.7,5; 1x 300 L/cm-vol.6,5 ; 7x 360 L/cm-vol.5 ; 1x 360 L/cm- vol.6; 2x 400 L/cm-vol.5; 1x 400 L/cm-vol.5,7 ; 4x 400 L/cm-vol.3,5; 2x 400 L/cm-vol.2,7 ; 1x 400 L/cm- vol.3; 2x 480 L/cm-vol.2,5 ; 2x 480 L/cm-vol.3,8 ; 1x 490 L/cm-vol.4,65 |
| Print Sleeves | approx 220, many with GPS chip as follows 8x 600 mm ; 8x 610 mm ; 5x 620mm ; 18x 640 mm ; 5x 650 mm ; 21x 660 mm ; 5x 675 mm; 14x 680mm ; 9x 690mm ; 12x 700 mm ; 18x 720 mm ; 5x 725 mm ; 6x 740 mm ; 15x 760 mm ; 5x 765 mm.; 5x 735 m ; , 5x 750 mm ; 20 x 780 mm ; 9x 800mm ;8x 810 mm ; 9x 840mm ; 8x 860 mm, 5x 870 mm ; 8x 880 mm |
| Note | SMART GPS SYSTEM COMMISSIONED IN 2016 IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection |
