- Machine code
- FL640
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello

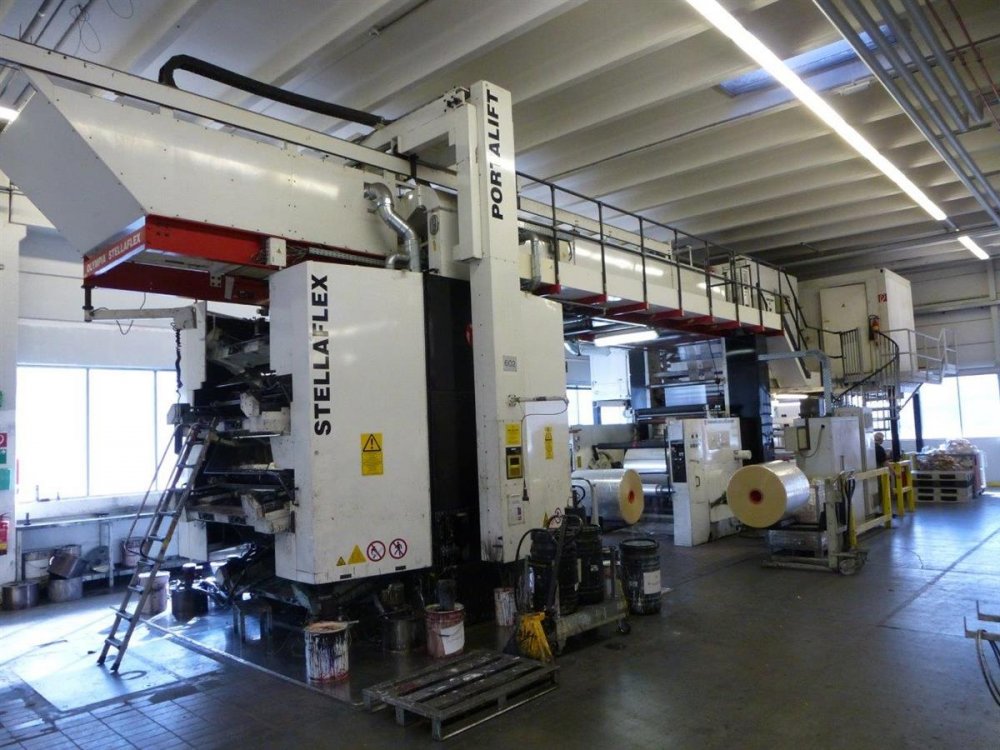

- STELLAFLEX
- Year
- 1996
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 1070

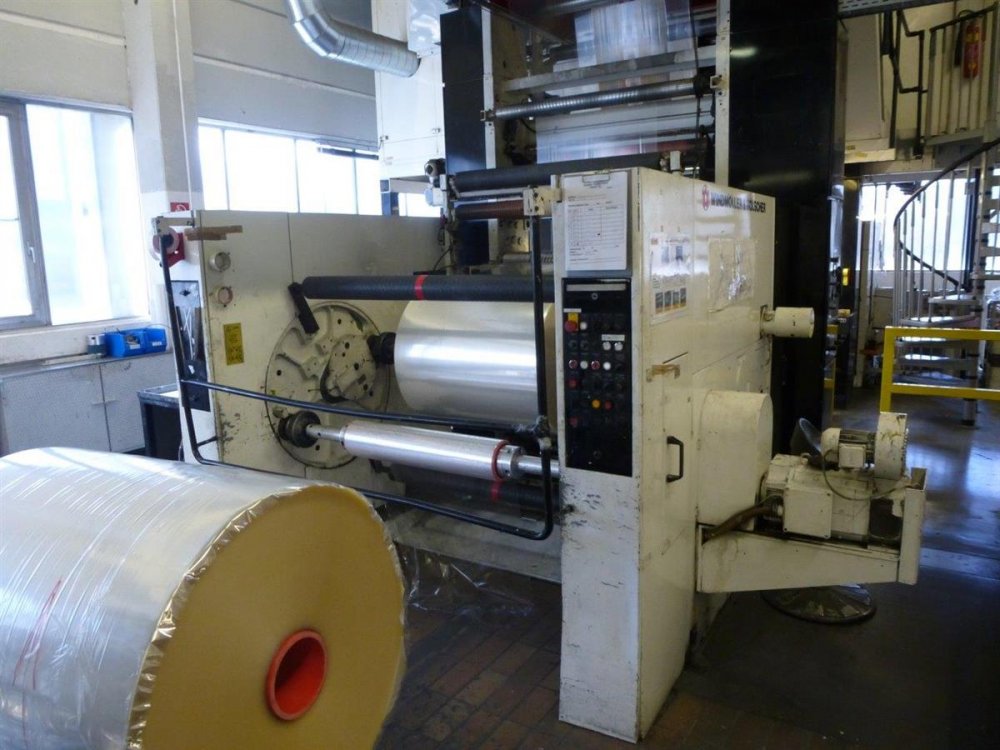

- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Diathermic oil
- Videocamera
- No

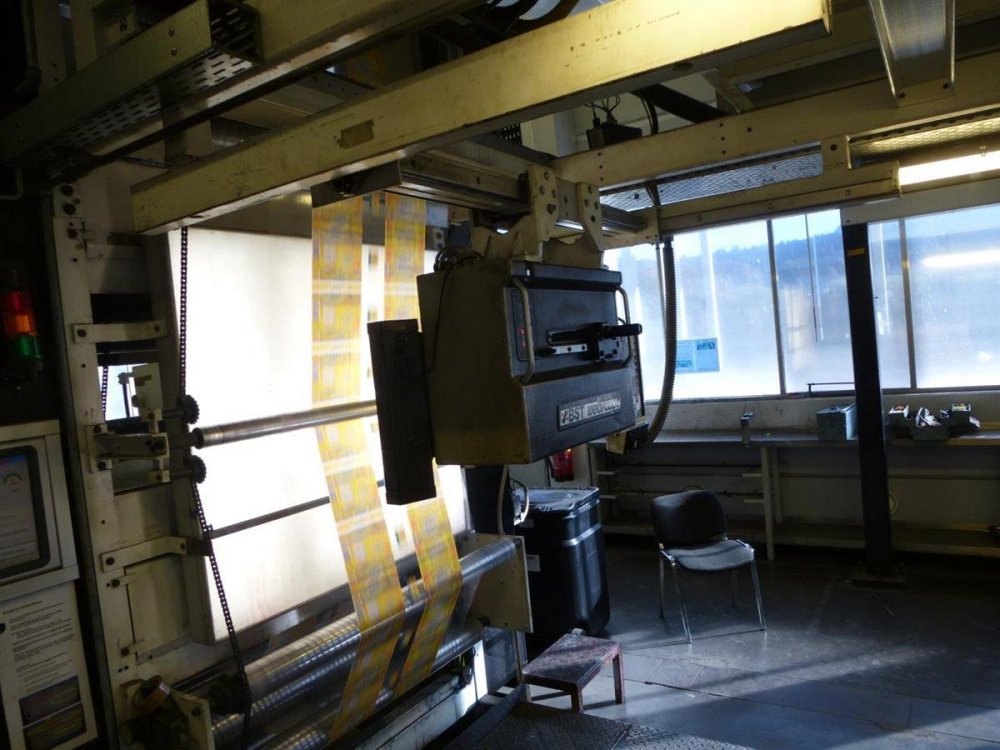

- Web guides
- 2 edge guides BST
- Vyscosity control
- Yes
- Inking system
- Doctor blae chamber. 8 ink pumps
- Anilox
- 26 as follows 5x 80L/cm ; 4x120L/cm; 2x140L/cm;3x160L/cm;5x225L/cm;7x320L/cm
- Print Sleeves
- Sleeves cliche 2,84 mm as follows: 5x330,350,380,16x440;8x470;8x480;8x520;8x560;9x530;5x570;8x600;4x900;8x1000;16x1110;6x1170mm ; Sleeves cliche 1,14 as follows: 11x350mm,8x380,16x400,16x420mm;8x440;16x460;8+8x480;16x500;8x510;7x520;8x570;17x590;16x600;8x660;7x1050;15x1070mm
- Note
- Mechanical speed 300m/min. Gear pitch 10mm Material: plastic film 12-200my Cliche thickness 1,14/2,84 4 airshafts 3" Hot water heating type Inline slitting with 1 knive Portalift system for automatic cylinder's loading. 48 gears cylinders Spare parts : 2 doctor blade chamber; 4 color trays; 3 color pot Dimensions of printer 19,5mx7m Air mandrels: 8x300,9x370,8x420,7x440,9x460,9x500,5x530;2x570;6x660;6x650;16x950mm
| Machine code | FL640 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | STELLAFLEX |
| Year | 1996 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 1070 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Diathermic oil |
| Videocamera | No |
| Web guides | 2 edge guides BST |
| Vyscosity control | Yes |
| Inking system | Doctor blae chamber. 8 ink pumps |
| Anilox | 26 as follows 5x 80L/cm ; 4x120L/cm; 2x140L/cm;3x160L/cm;5x225L/cm;7x320L/cm |
| Print Sleeves | Sleeves cliche 2,84 mm as follows: 5x330,350,380,16x440;8x470;8x480;8x520;8x560;9x530;5x570;8x600;4x900;8x1000;16x1110;6x1170mm ; Sleeves cliche 1,14 as follows: 11x350mm,8x380,16x400,16x420mm;8x440;16x460;8+8x480;16x500;8x510;7x520;8x570;17x590;16x600;8x660;7x1050;15x1070mm |
| Note | Mechanical speed 300m/min. Gear pitch 10mm Material: plastic film 12-200my Cliche thickness 1,14/2,84 4 airshafts 3" Hot water heating type Inline slitting with 1 knive Portalift system for automatic cylinder's loading. 48 gears cylinders Spare parts : 2 doctor blade chamber; 4 color trays; 3 color pot Dimensions of printer 19,5mx7m Air mandrels: 8x300,9x370,8x420,7x440,9x460,9x500,5x530;2x570;6x660;6x650;16x950mm |
