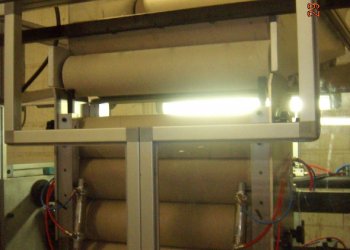

Maklaus RES-UNI Svolgitore / Avvolgitore // Unwinder-Rewinder // Other machine // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Photo Gallery

Codice Macchina: UN-RE44
Manufacturer: Maklaus
Modello: RES-UNI
Year: 2008
Larghezza lavoro (mm): 600
Ulteriori informazioni: The machine covers all kind of finished rolls required by the market (automatic production of Mini-rolls, automatic use, manual use and pre-stretch) Max. rewinding speed 1500 meters per minute Cycle production time 17-21 seconds (for 250 meter rolls) Max. diameter of mother roll - 550 mm Max. material width - 600 mm Min. material width - 450 mm Max. diameter of finished roll - 300 mm Mother roll core diameter - 76 mm Inside diameter of finished roll - 50 mm (30mm, 32mm, 38mm, 42mm, 76mm optional) Material thickness - 10 micron - 50 micron Installed power - 14 Kw Voltage - 400 V Air pressure - 6 bar Compressed air consumption - < 100 liter per minute Machine overall dimensions - 1350x1800x2200 mm Machine weight - 1250 Kg

Codice Macchina	UN-RE44
Manufacturer	Maklaus
Modello	RES-UNI
Year	2008
Larghezza lavoro (mm)	600
Ulteriori informazioni	The machine covers all kind of finished rolls required by the market (automatic production of Mini-rolls, automatic use, manual use and pre-stretch) Max. rewinding speed 1500 meters per minute Cycle production time 17-21 seconds (for 250 meter rolls) Max. diameter of mother roll - 550 mm Max. material width - 600 mm Min. material width - 450 mm Max. diameter of finished roll - 300 mm Mother roll core diameter - 76 mm Inside diameter of finished roll - 50 mm (30mm, 32mm, 38mm, 42mm, 76mm optional) Material thickness - 10 micron - 50 micron Installed power - 14 Kw Voltage - 400 V Air pressure - 6 bar Compressed air consumption - < 100 liter per minute Machine overall dimensions - 1350x1800x2200 mm Machine weight - 1250 Kg
