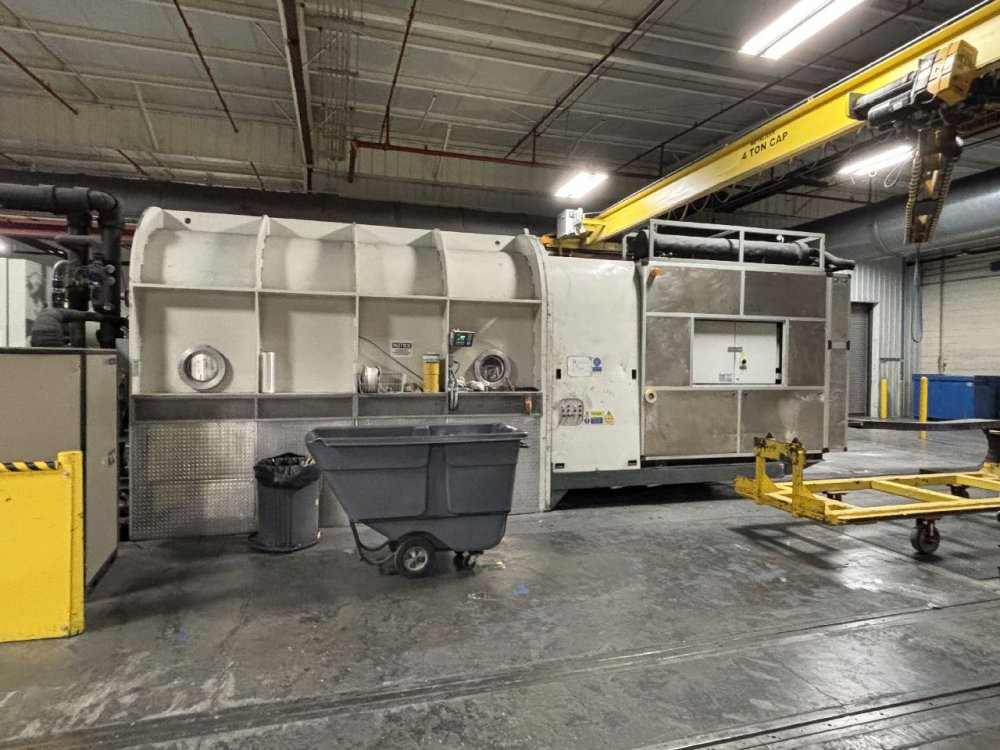

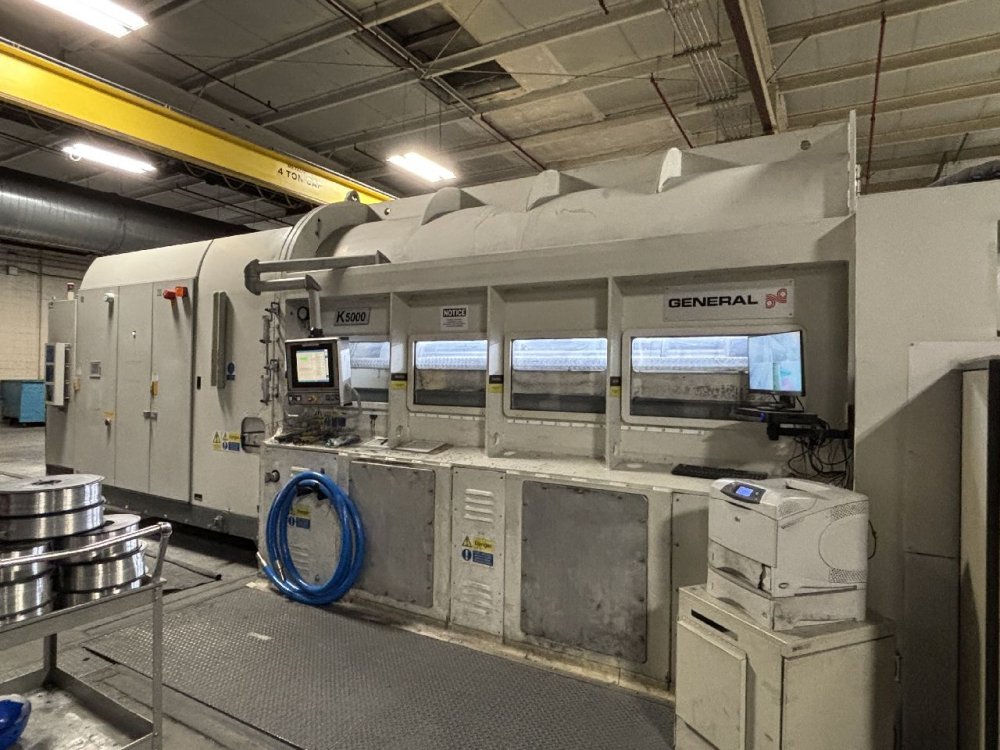

BOBST K5000 Metallizzatore

BOBST K5000 Metallizzatore
BOBST K5000 Metallizzatore
BOBST K5000 Metallizzatore
Photo Gallery
Richiedi maggiori informazioni
Codice Macchina
ME104
Manufacturer
BOBST
Modello
K5000
Year
2007
Larghezza lavoro (mm)
2850
Materiali
BOPP 10 to 50 µm; PET 8 to 20 µm
Velocità
1000m/min
Diametro massimo bobina svolgitore
1200mm, shaftless chucking system
Diametro massimo bobina avvolgitore
1200mm, shaftless chucking system
Navicelle di evaporazione
- 30 Dimensions: 125 mm x 40 mm x 10 mm, Fully staggered. Aluminium wire specification: Diameter 2 mm, Purity 99.8%
Tempo di vuoto
Operating pressure 5 x 10-4 mbar (web coating zone) , Pumping time <5 min (clean, dry and empty)
Sistema di pompaggio
Web coating zones: 1 x SV750 rotary vane pumps, each with a pumping capacity of 750 m3/hr, are employed to evacuate the web coating zone. Each SV750 is purged via automatic gas ballast. 1 x x Aerzen GLB14.9 booster pump, with a pumping capacity of 3,900 m3/hr, is employed to evacuate the web coating zone. 2 x Varian HS35 diffusion pumps, each with a pumping capacity of 50,000 litre/sec, are employed to evacuate the web coating zone. Web winding zone 2 x SV750 rotary vane pumps, each with a pumping capacity of 750 m3/hr, are employed to evacuate the web winding zone. Each SV750 is purged via automatic gas ballast. 2 x Aerzen GLB14.9 booster pump, with a pumping capacity of 3,900 m3/hr, is employed to evacuate the web winding zone. 1 x Aerzen with raised 40 kW motor, with a pumping capacity of 13,000 m3/hr, is employed to evacuate the web winding zone.
Polycold
2 x Polycold PFC 1101 HC cryogenic units, with a total pumping capacity of 400,000 litre/sec, is employed to evacuate the web coating zone. 1 x Polycold PFC 1101 HC cryogenic unit, with a pumping capacity of 200,000 litre/sec, is employed to evacuate the web winding zone.
Ulteriori informazioni
Installed power per evaporator 13 V, 1000 A Power consumption: Average during cycle 350 kW Standby 80 kW PLC software - Siemens S7
Codice Macchina ME104
Manufacturer BOBST
Modello K5000
Year 2007
Larghezza lavoro (mm) 2850
Materiali BOPP 10 to 50 µm; PET 8 to 20 µm
Velocità 1000m/min
Diametro massimo bobina svolgitore 1200mm, shaftless chucking system
Diametro massimo bobina avvolgitore 1200mm, shaftless chucking system
Navicelle di evaporazione - 30 Dimensions: 125 mm x 40 mm x 10 mm, Fully staggered. Aluminium wire specification: Diameter 2 mm, Purity 99.8%
Tempo di vuoto Operating pressure 5 x 10-4 mbar (web coating zone) , Pumping time <5 min (clean, dry and empty)
Sistema di pompaggio Web coating zones: 1 x SV750 rotary vane pumps, each with a pumping capacity of 750 m3/hr, are employed to evacuate the web coating zone. Each SV750 is purged via automatic gas ballast. 1 x x Aerzen GLB14.9 booster pump, with a pumping capacity of 3,900 m3/hr, is employed to evacuate the web coating zone. 2 x Varian HS35 diffusion pumps, each with a pumping capacity of 50,000 litre/sec, are employed to evacuate the web coating zone. Web winding zone 2 x SV750 rotary vane pumps, each with a pumping capacity of 750 m3/hr, are employed to evacuate the web winding zone. Each SV750 is purged via automatic gas ballast. 2 x Aerzen GLB14.9 booster pump, with a pumping capacity of 3,900 m3/hr, is employed to evacuate the web winding zone. 1 x Aerzen with raised 40 kW motor, with a pumping capacity of 13,000 m3/hr, is employed to evacuate the web winding zone.
Polycold 2 x Polycold PFC 1101 HC cryogenic units, with a total pumping capacity of 400,000 litre/sec, is employed to evacuate the web coating zone. 1 x Polycold PFC 1101 HC cryogenic unit, with a pumping capacity of 200,000 litre/sec, is employed to evacuate the web winding zone.
Ulteriori informazioni Installed power per evaporator 13 V, 1000 A Power consumption: Average during cycle 350 kW Standby 80 kW PLC software - Siemens S7
