- Codice Macchina
- BO104
- Manufacturer
- DORNIER
- Year
- 1998
- Numero di strati
- 2
- Struttura film
- AB. and ABA
- Materiali
- BOPET 12-60 micron
- Output
- 2500 kg/h, 340m/min, 55ton/day
- Larghezza (mm)
- 6350

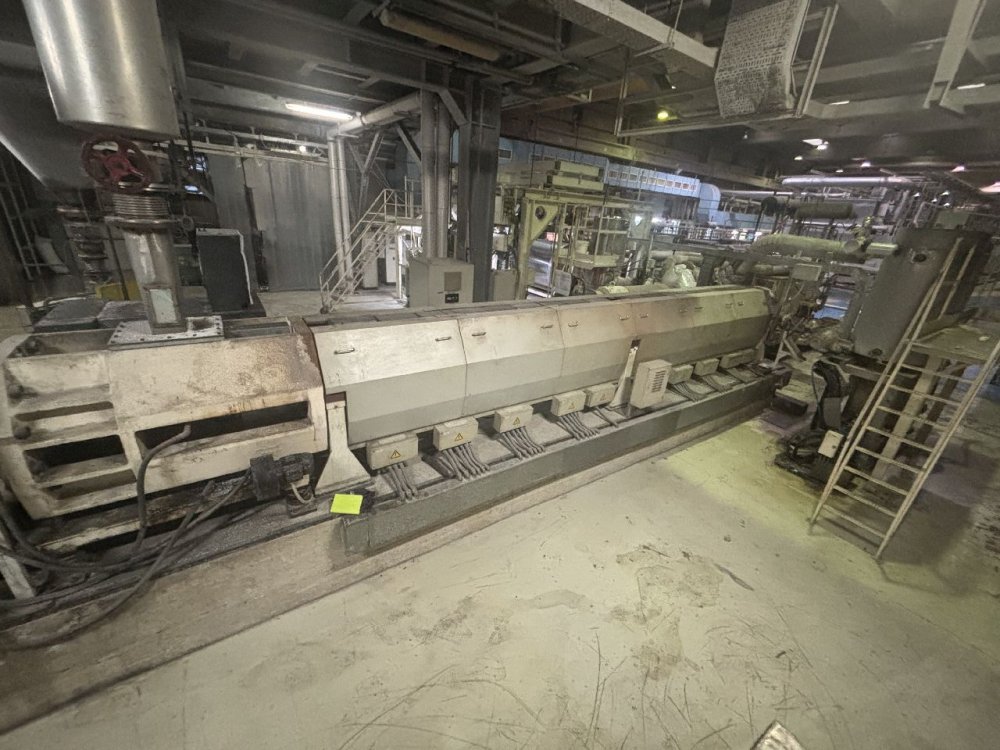

- Extruder 1 Description
- screw diam 250mm, L/D 30; Make Barmag; Primary filter cylindrical with double position for non stop change. Melt pump. Second cylindrical filter
- Extruder 2 Description
- Screw diam 150mm L/D 30

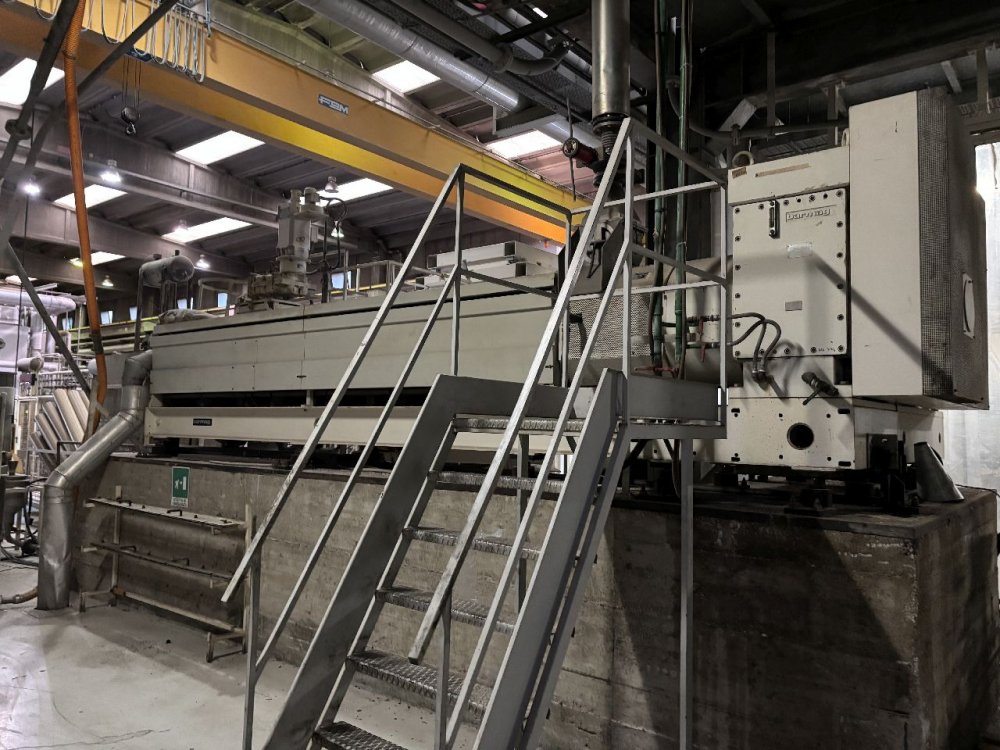

- Descrizione testa
- Make EDI, automatic thickness profile control via thermal bolts width 2050mm. Electro magnetic edge pinning band type, make Bruckner
- Die width
- 2050mm
- Controllo di spessore
- Automatic. Make Measurex. 2 scanners, one after chill and one on pull roll Beta ray sources Kripton 85
- Unità chill roll
- Chill roll unit, regulation in position and height
- Descrizione MDO
- 19 pre-heating rolls steel surface 2 stretching sections, tot 9 rollers 4 cooling rollers Thermal oil heating

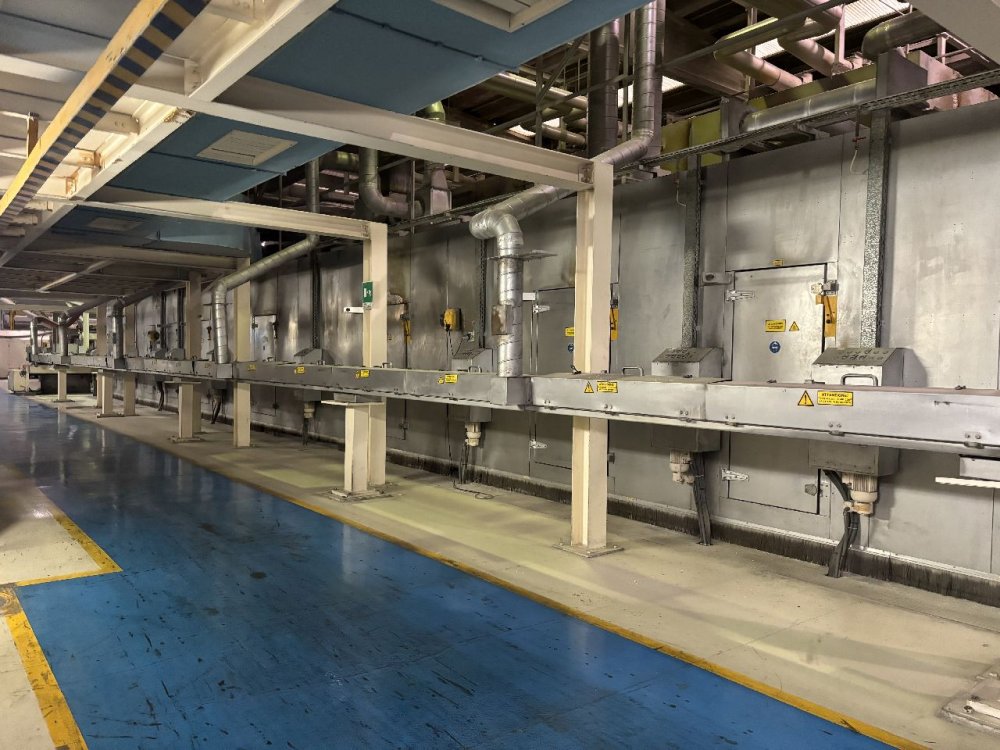

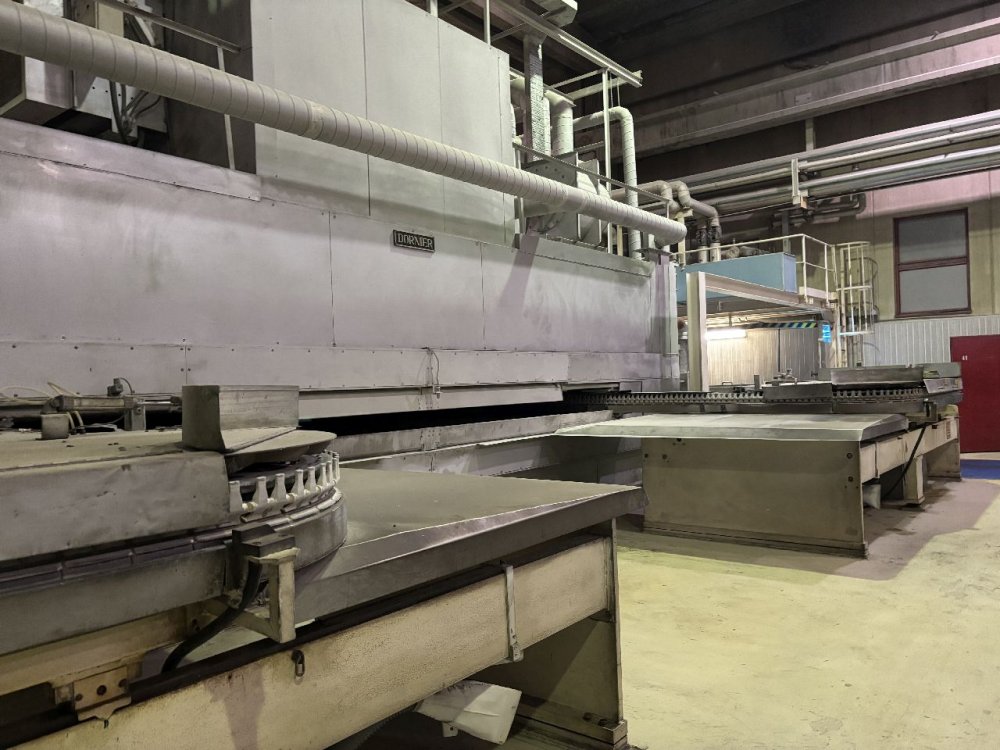

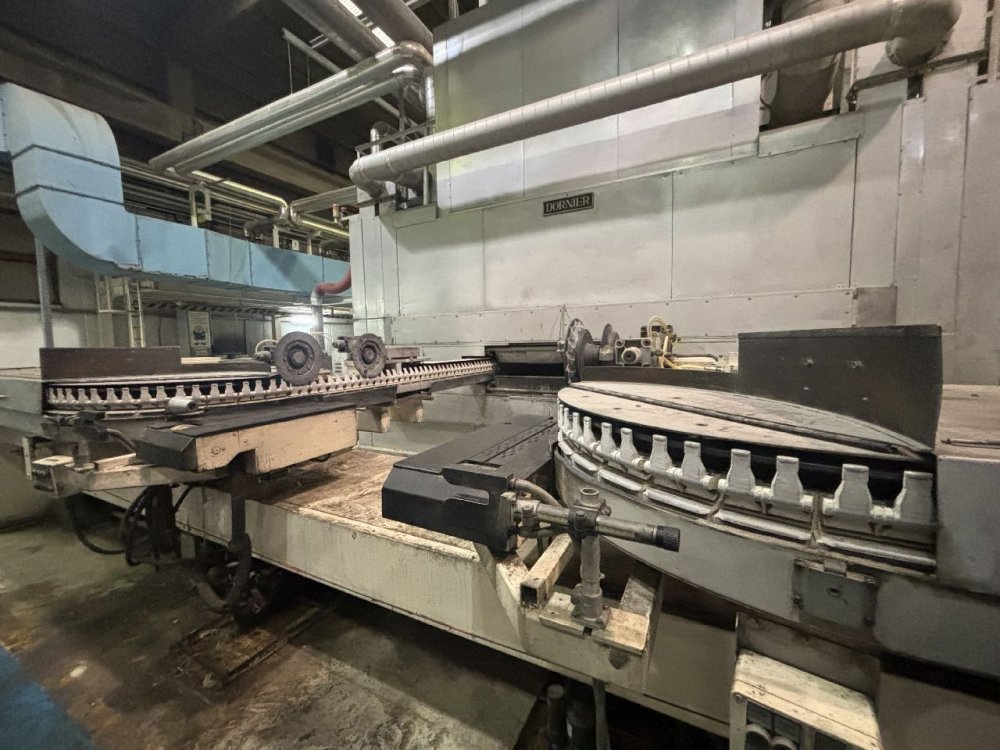

- Descrizione TDO
- Positionof entry and exit motorised from control panel Clips with 9 roller bearing each clip, continuous rail for chain truck Thermal oil heating 3x pre heating sections 3x stretching sections 3x heat setting sections 2x cooling sections 1x annealing sections

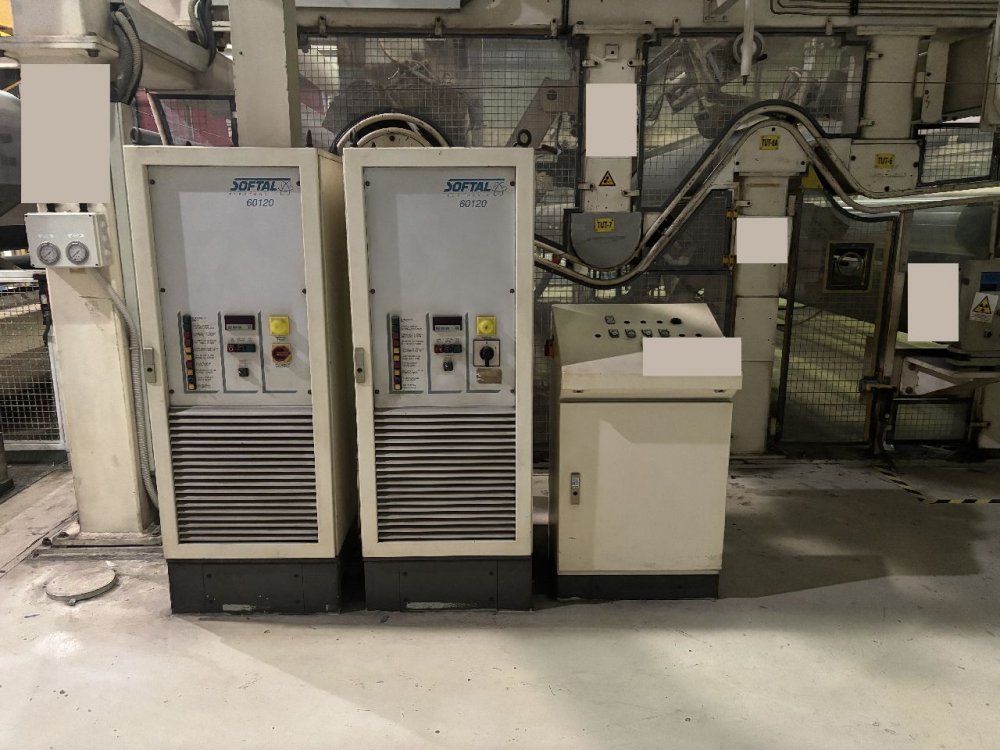

- Trattamento Corona
- Softal. One side treated on machine, second side, where requested, treated on slitter rewinder
- Unità pull roll
- Softal corona. Measurex thickness controll
- Larghezza avvolgitore
- 6350mm

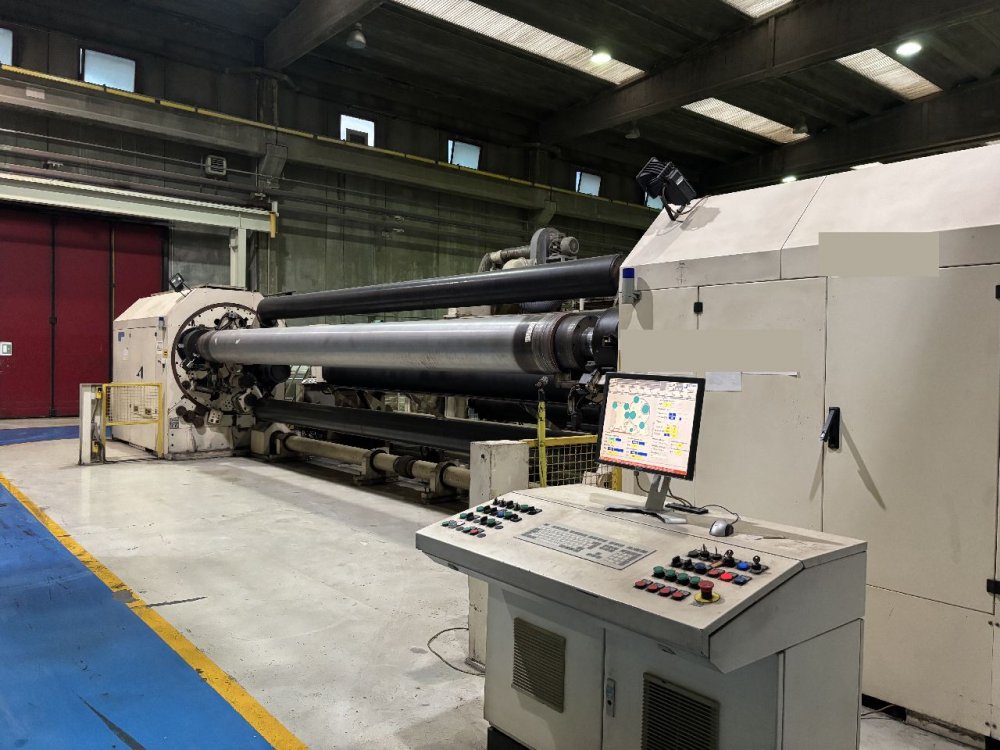

- Descrizione avvolgitore
- Make Kampf, turret type, max diam 1000mmm, oscillating type
- Taglia cordona
- Atlas CW 963 AP, 6300mm width, Max rel rewinder 1000mm, corona treatment make Mero, rewinder for edges
- Ulteriori informazioni
- Crystalliser on fluid air bed Dryer 100 steel cores Cooling capacity: 2x450 Kcal/h Heating 1200 Kcal/h UPS Available as optional for additional price recycling machine Erema 1200 kg/h and slitter rewinder
| Codice Macchina | BO104 |
| Manufacturer | DORNIER |
| Year | 1998 |
| Numero di strati | 2 |
| Struttura film | AB. and ABA |
| Materiali | BOPET 12-60 micron |
| Output | 2500 kg/h, 340m/min, 55ton/day |
| Larghezza (mm) | 6350 |
| Extruder 1 Description | screw diam 250mm, L/D 30; Make Barmag; Primary filter cylindrical with double position for non stop change. Melt pump. Second cylindrical filter |
| Extruder 2 Description | Screw diam 150mm L/D 30 |
| Descrizione testa | Make EDI, automatic thickness profile control via thermal bolts width 2050mm. Electro magnetic edge pinning band type, make Bruckner |
| Die width | 2050mm |
| Controllo di spessore | Automatic. Make Measurex. 2 scanners, one after chill and one on pull roll Beta ray sources Kripton 85 |
| Unità chill roll | Chill roll unit, regulation in position and height |
| Descrizione MDO | 19 pre-heating rolls steel surface 2 stretching sections, tot 9 rollers 4 cooling rollers Thermal oil heating |
| Descrizione TDO | Positionof entry and exit motorised from control panel Clips with 9 roller bearing each clip, continuous rail for chain truck Thermal oil heating 3x pre heating sections 3x stretching sections 3x heat setting sections 2x cooling sections 1x annealing sections |
| Trattamento Corona | Softal. One side treated on machine, second side, where requested, treated on slitter rewinder |
| Unità pull roll | Softal corona. Measurex thickness controll |
| Larghezza avvolgitore | 6350mm |
| Descrizione avvolgitore | Make Kampf, turret type, max diam 1000mmm, oscillating type |
| Taglia cordona | Atlas CW 963 AP, 6300mm width, Max rel rewinder 1000mm, corona treatment make Mero, rewinder for edges |
| Ulteriori informazioni | Crystalliser on fluid air bed Dryer 100 steel cores Cooling capacity: 2x450 Kcal/h Heating 1200 Kcal/h UPS Available as optional for additional price recycling machine Erema 1200 kg/h and slitter rewinder |
